Select Cable: Removal

Set selector lever in "P" position.
Remove transfer control lever knob, lower cluster assembly, rear console, center console, selector lever knob and cover.
- Refer to SELECTOR LEVER .
Disconnect inner cable by pulling projection on pin.

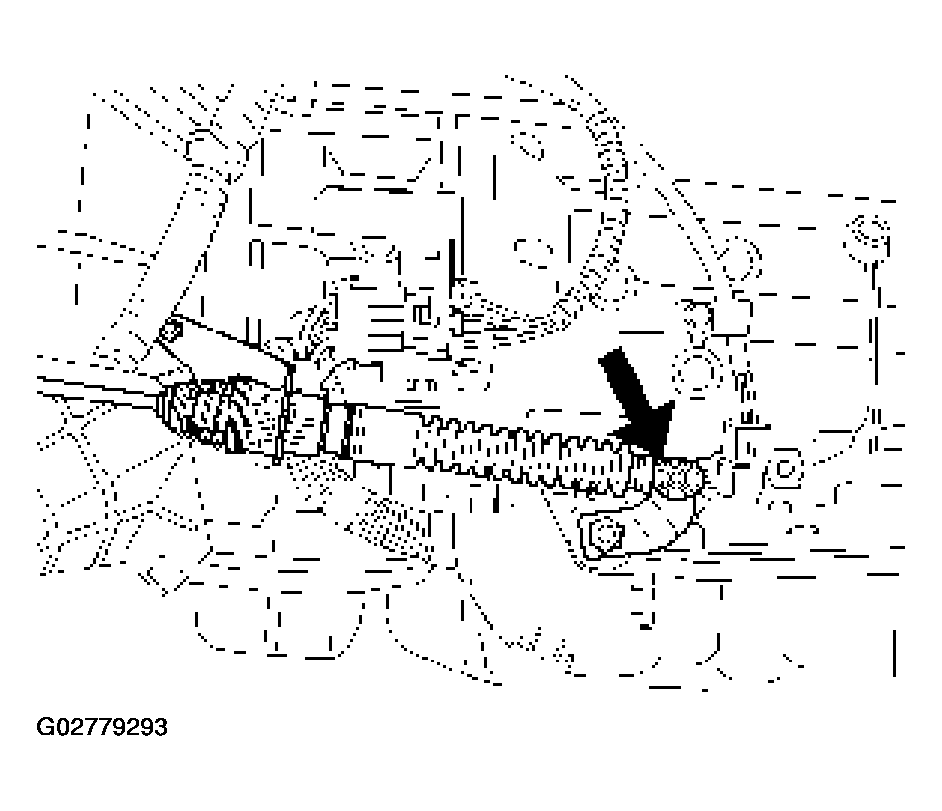

Fig 1: Disconnecting Inner Cable By Pulling Projection On Pin
Press down claws and disconnect cable assembly.

Fig 2: Pressing Down Claws & Disconnecting Cable Assembly
Disconnect PCM harness connectors and remove nuts that fasten grommet in select cable assembly.
Disconnect inner cable.

Fig 3: Disconnecting Inner Cable (V6)
Slide sleeve and disconnect cable assembly.

Fig 4: Sliding Sleeve & Disconnecting Cable Assembly
Pull lock.

Fig 5: Pulling Lock
Draw select cable assembly into the interior side.
