Tech 2 OBD II Connection: Notes

In order to access OBD II Powertrain Control Module (PCM) data, use of the Tech 2 scan tool kit (7000086) is required.

1. The electronic diagnosis equipment is composed of:
   1. Tech 2 hand-held scan tool unit (7000057) and DLC cable (3000095).
      Fig 1: Identifying TECH 2 Hand Held Scan Tool Unit & DLC Cable

      Courtesy of ISUZU MOTOR CO.

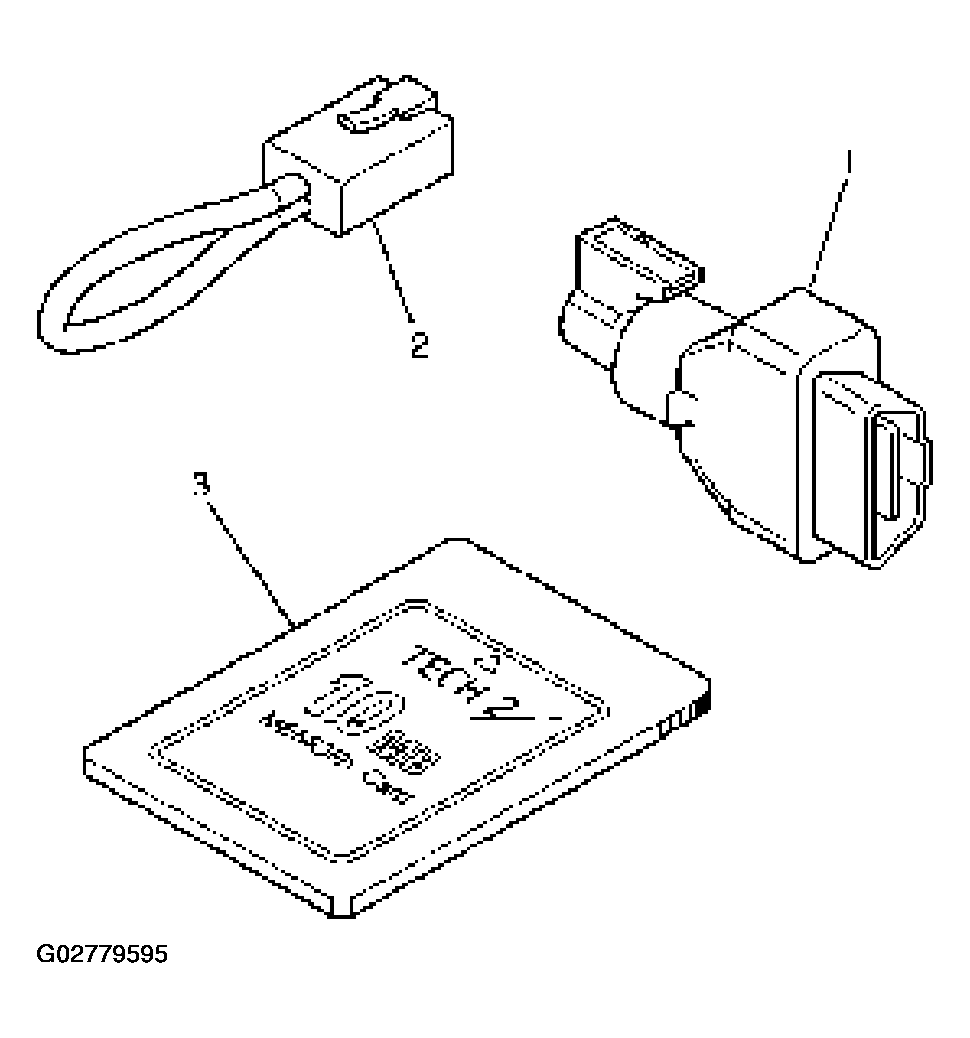

   2. SAE 16/19 Pin Adapter (3000098)(1), RS232 Loop Back Connector (3000112)(2), and PCMCIA Card (3000117)(3).
      Fig 2: Identifying SAE 16/19 Adaptor, RS232 Loop Back Connector & PCMCIA Card

      Courtesy of ISUZU MOTOR CO.
2. Connecting the Tech 2

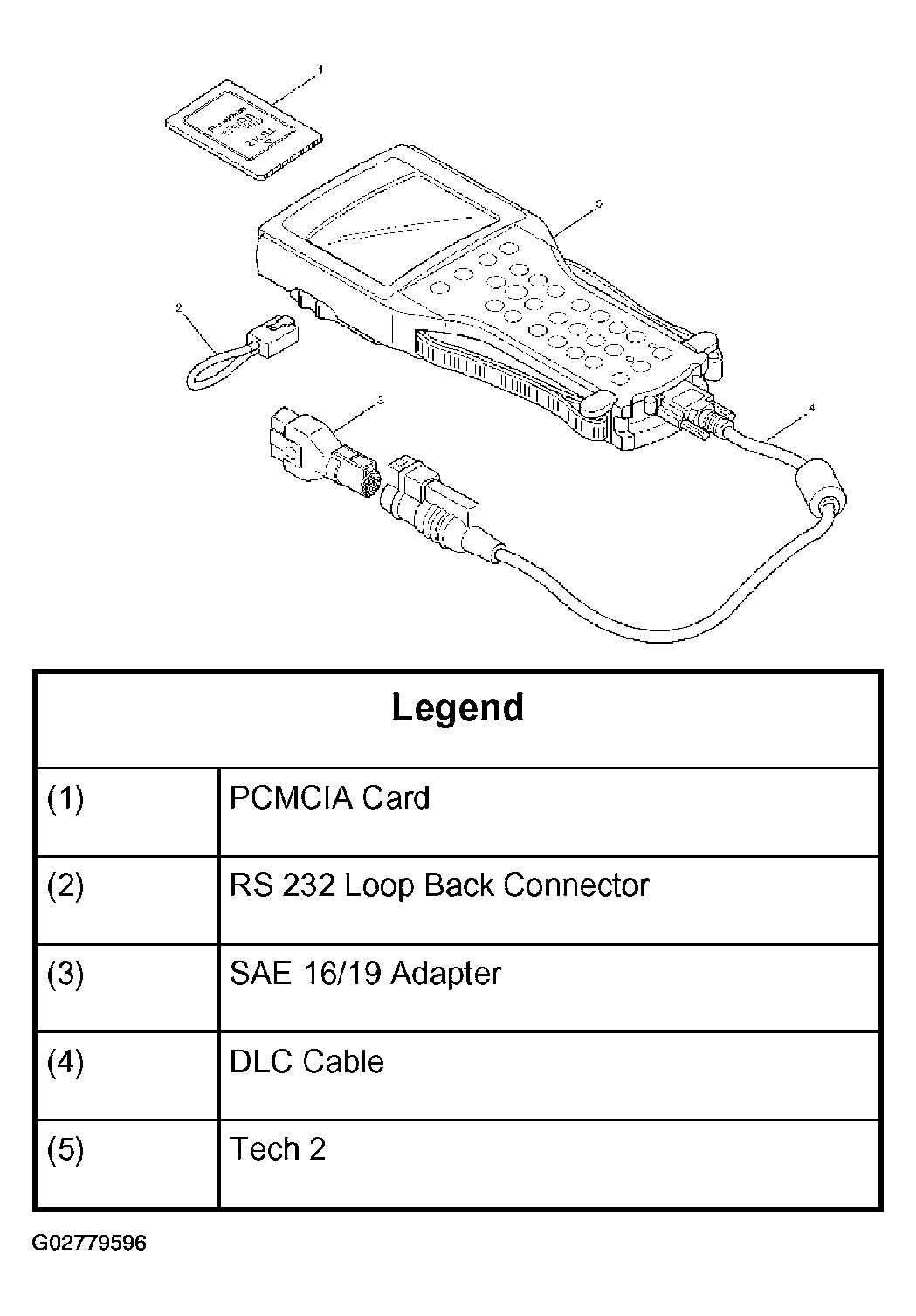

   Fig 3: Connecting TECH2

   Courtesy of ISUZU MOTOR CO.
   • Before operating the Isuzu PCMCIA card with the Tech 2, the following steps must be performed:
     1. The Isuzu 2001 System PCMCIA card (1) inserts into the Tech 2 (5).
     2. Connect the SAE 16/19 adapter (3) to the DLC cable (4).
     3. Connect the DLC cable to the Tech 2 (5)
     4. Mark sure the vehicle ignition is off.
     5. Connect the Tech 2 SAE 16/19 adapter to the vehicle DLC.

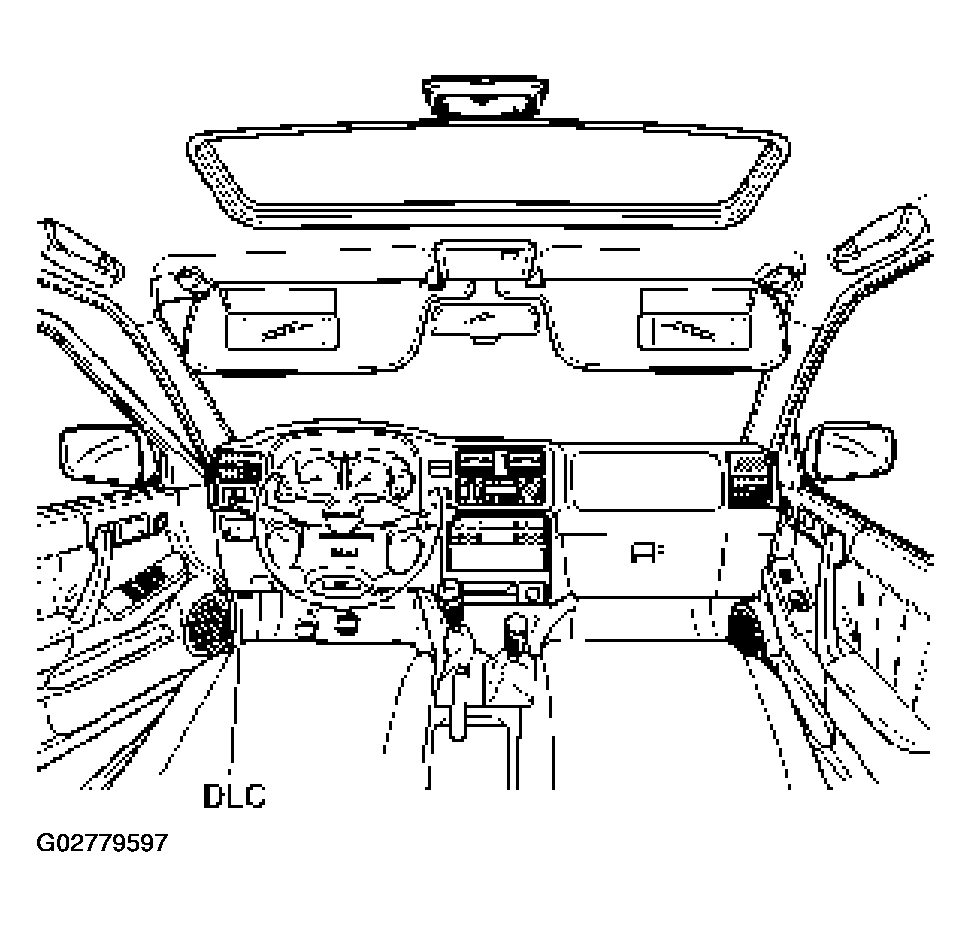

        Fig 4: Locating DLC

        Courtesy of ISUZU MOTOR CO.
     6. The vehicle ignition turns on.
     7. Verify the Tech 2 power up display.
        Fig 5: Verifying Tech 2 Power Up Display

        Courtesy of ISUZU MOTOR CO.
        NOTE: The RS232 Loop back connector is only to use for diagnosis of Tech 2 and refer to user guide of the Tech 2.
     8. The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedure below.

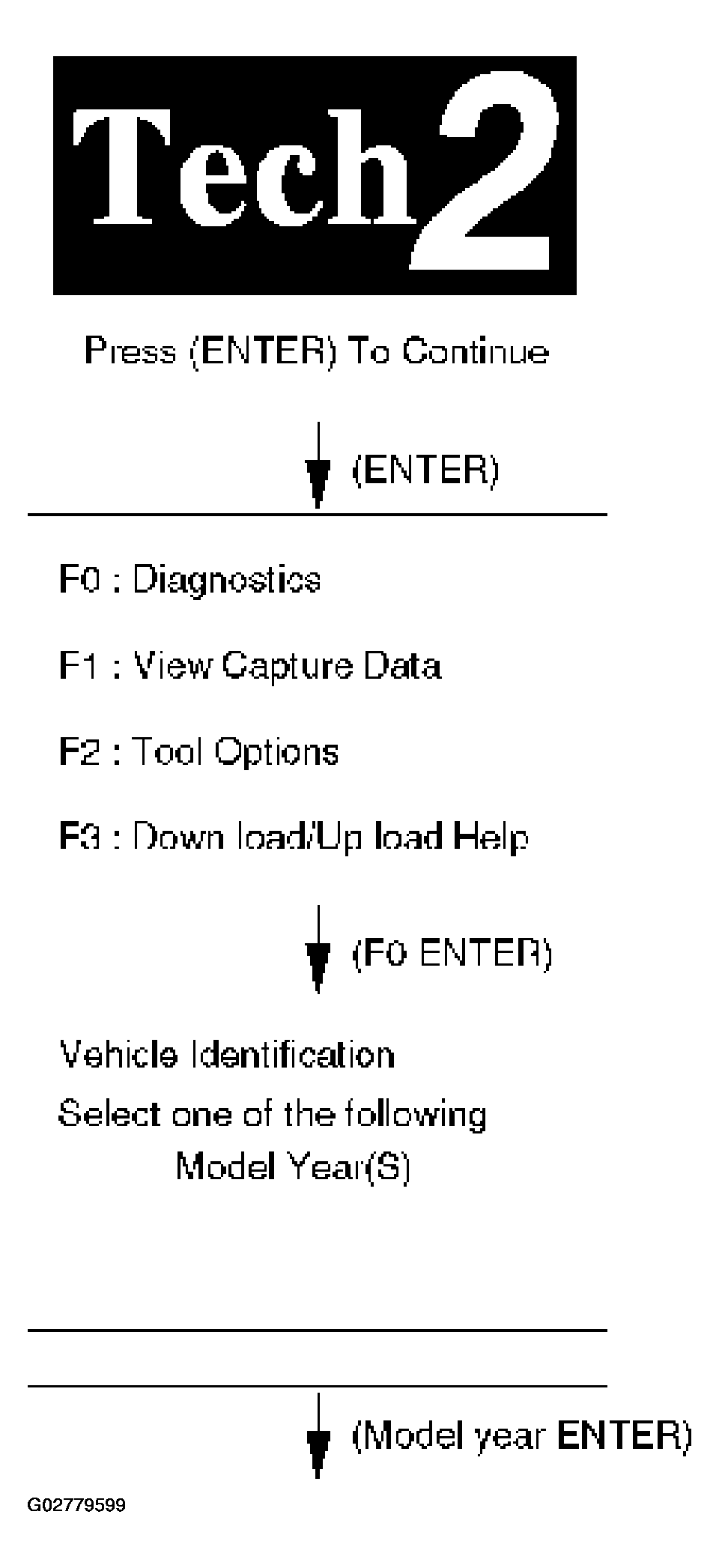

        Fig 6: Identifying TECH 2 Power Up Display (1 Of 2)

        Courtesy of ISUZU MOTOR CO.

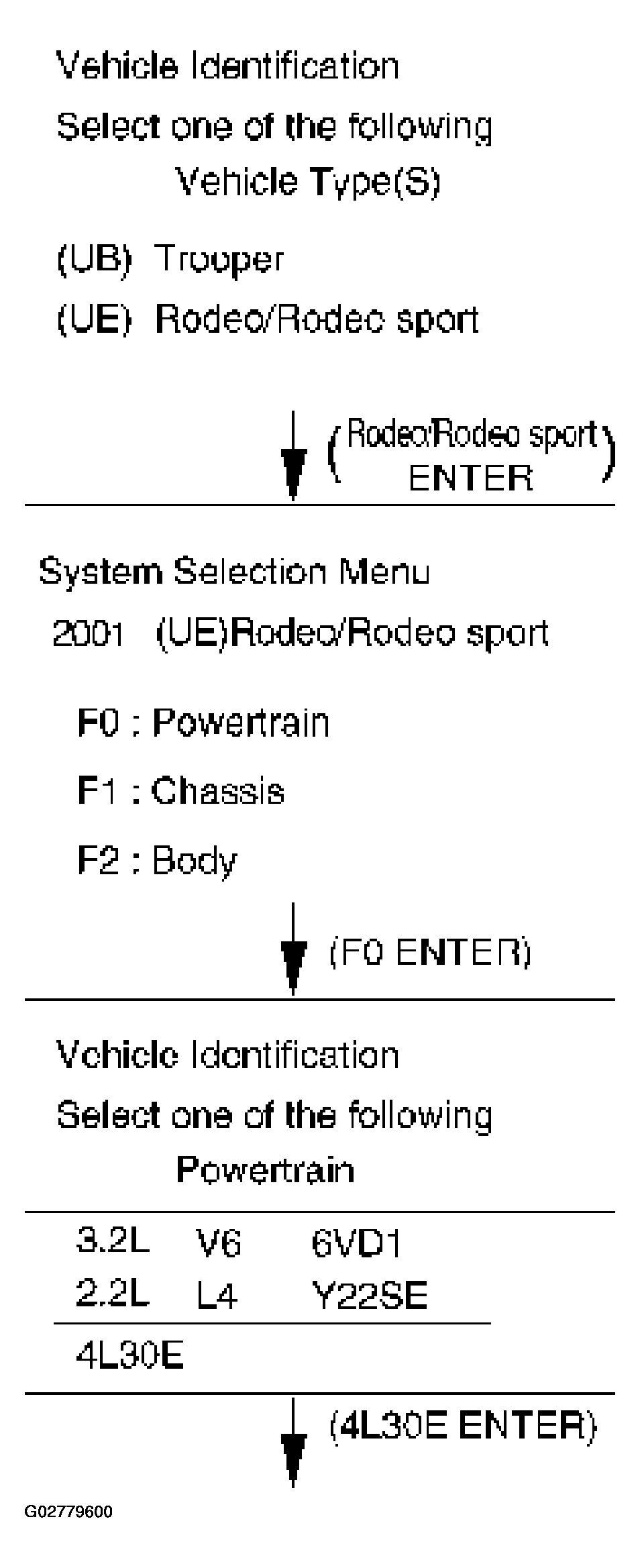

        Fig 7: Identifying TECH 2 Power Up Display (1 Of 2)

        Courtesy of ISUZU MOTOR CO.

Once the test vehicle has been identified an "Application (Powertrain) Menu" screen appears. Please select the appropriate application.

The following table shows, which functions are used for the available equipment versions.

1. F0: Diagnostic Trouble Codes
   1. F0: Read DTC Info Ordered By Priority
   2. F1: Clear DTC Information
   3. F2: DTC Information
2. F1: Data Display
   1. F0: Transmission Data
3. F2: Snap Shot
4. F3: Miscellaneous Tests
   1. F0: Lamps
   2. F0: Check Light
   3. F1: Winter Drive Lamp
   4. F2: Power Drive Lamp
   5. F3: Automatic Transm. Fluid Lamp
5. F1: Solenoids
   1. F0: Band Apply Solenoid
   2. F1: TCC Solenoid
   3. F2: Pressure Control Solenoid
6. F2: Gear Control
7. F4: Function Tests
   1. F0: Reset Oil Life Monitor
