Shift Mode Control

Mode Type

Fig 1: Shift Mode Control (Mode Type)
Courtesy of ISUZU MOTOR CO.
Mode selection

Fig 2: Shift Mode Control (Mode Selection)
Courtesy of ISUZU MOTOR CO.

However, the winter switch prevails over PWR NOR switch.

The mode becomes normal drive mode when the winter switch is operated from ON to OFF.
Comparison of mode
1. The normal drive mode is set at the normal shift points.
2. The shift points of trig power drive mode are shifted to the higher speed side compared to the normal drive mode.
3. Tie winter drive mode is a special mode used exclusively for starting in third gear.

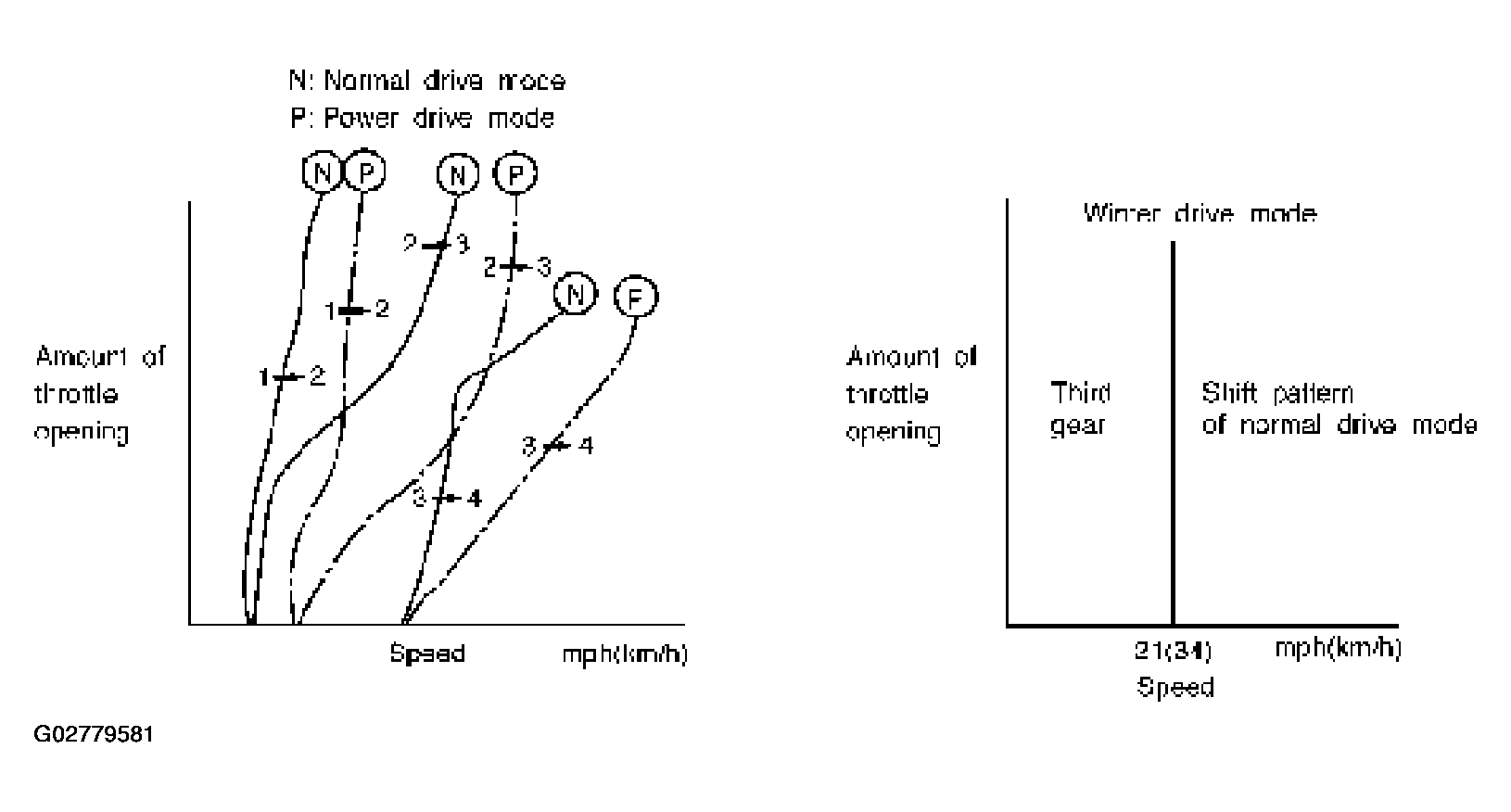

  Fig 3: Identifying Shift Diagram
  Courtesy of ISUZU MOTOR CO.
