4WD Control Unit Associated Parts: Removal

1. Remove center console assembly. Refer to CONSOLES .
2. Remove two screws and harness connector (1) from 4WD control unit.

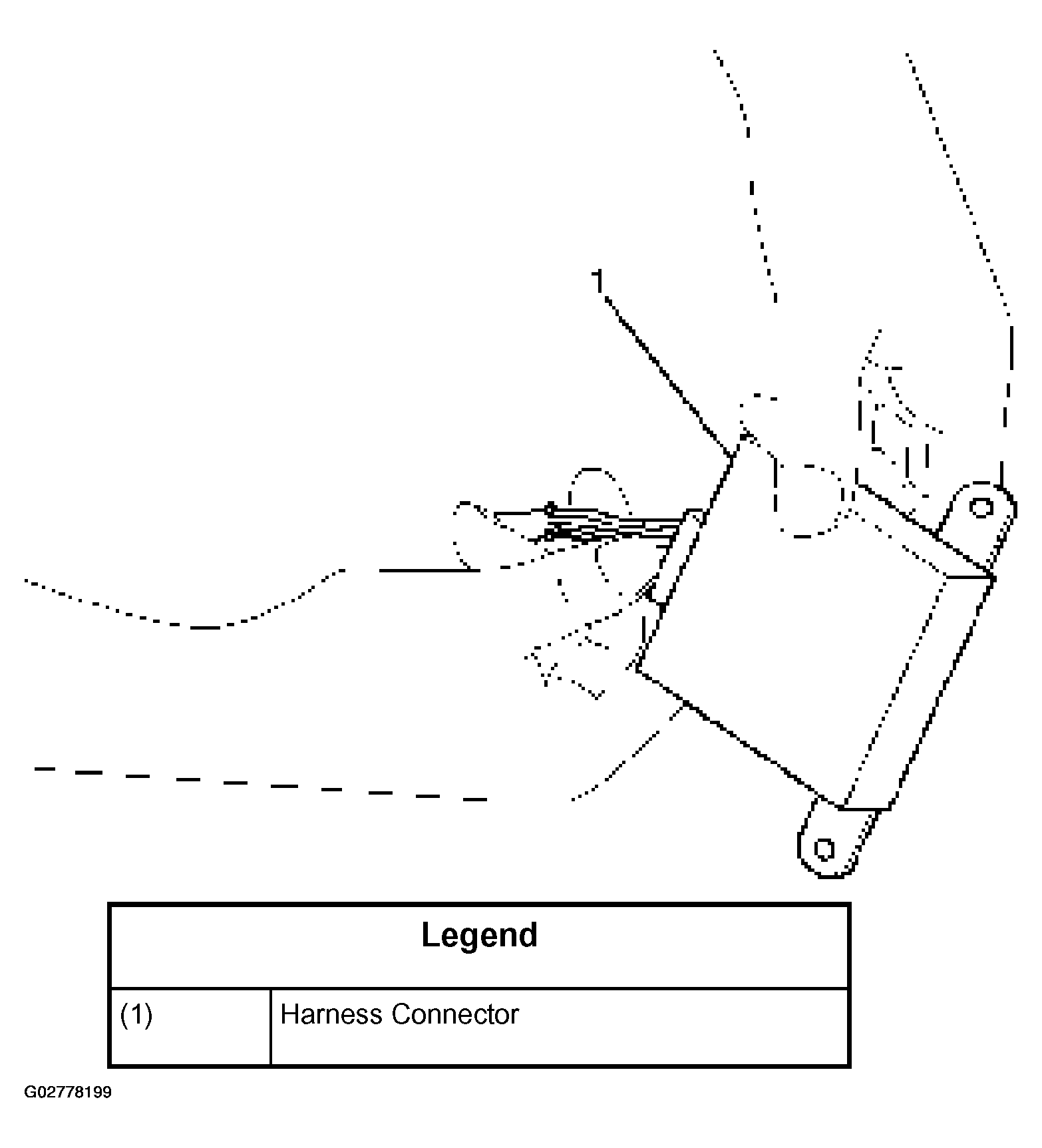

Fig 1: Removing Screws & Harness Connector
