Functions of Indicator Lamp: Notes
Indication of vehicle condition:

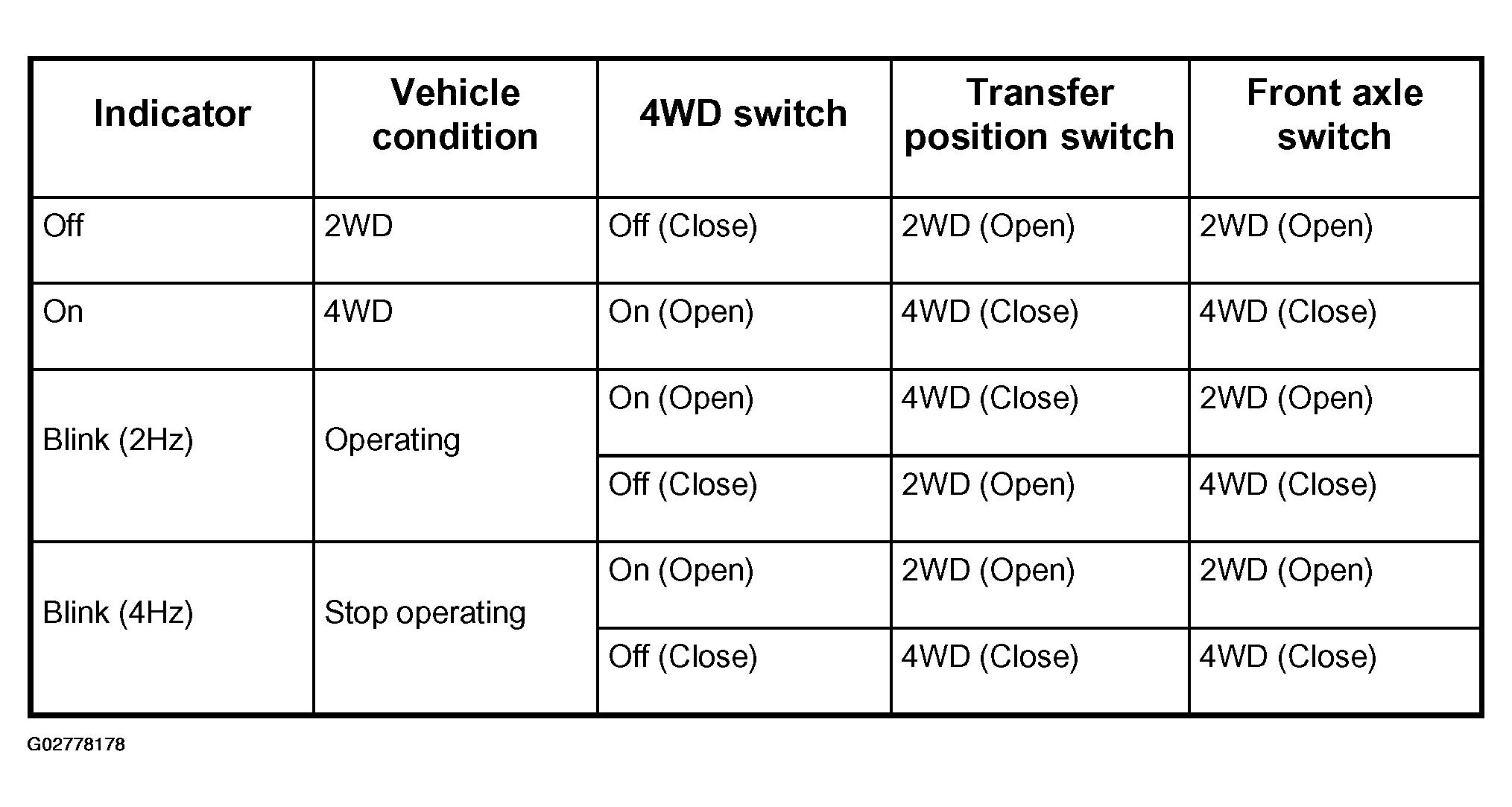

Indicator lamp is controlled by transfer ECU of shift on the fly and shows vehicle conditions as below.
Bulb check:
The bulb of indicator lamp is checked for 2 seconds when ignition key is turned on.
