Steering Column Lock System
Steering Column Lock System

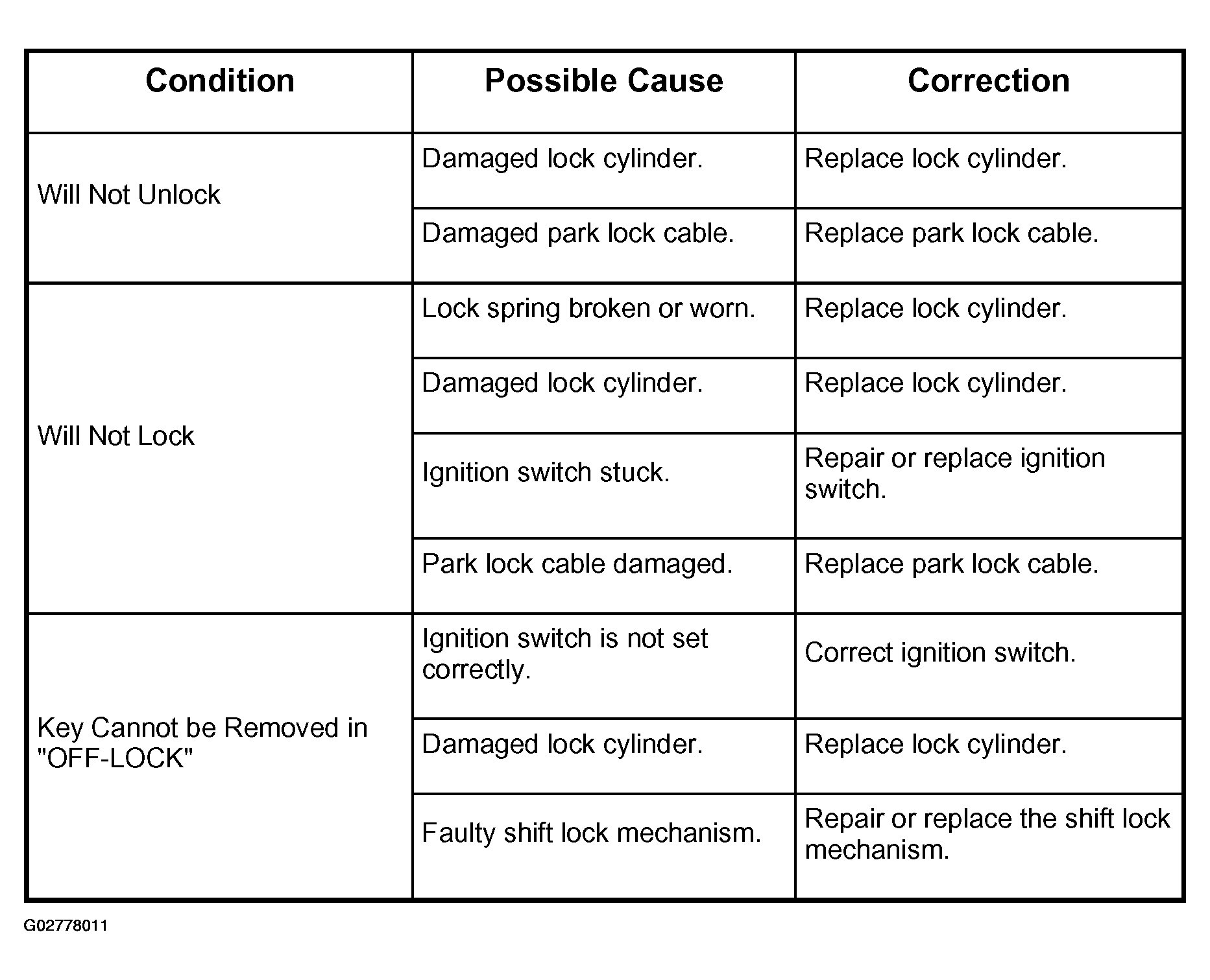

Fig 1: Steering Column Lock System Diagnosis Chart
