Axle Disconnect Controller

Fig 1: Identifying Axle Disconnect Controller (1 Of 2)
G02778191

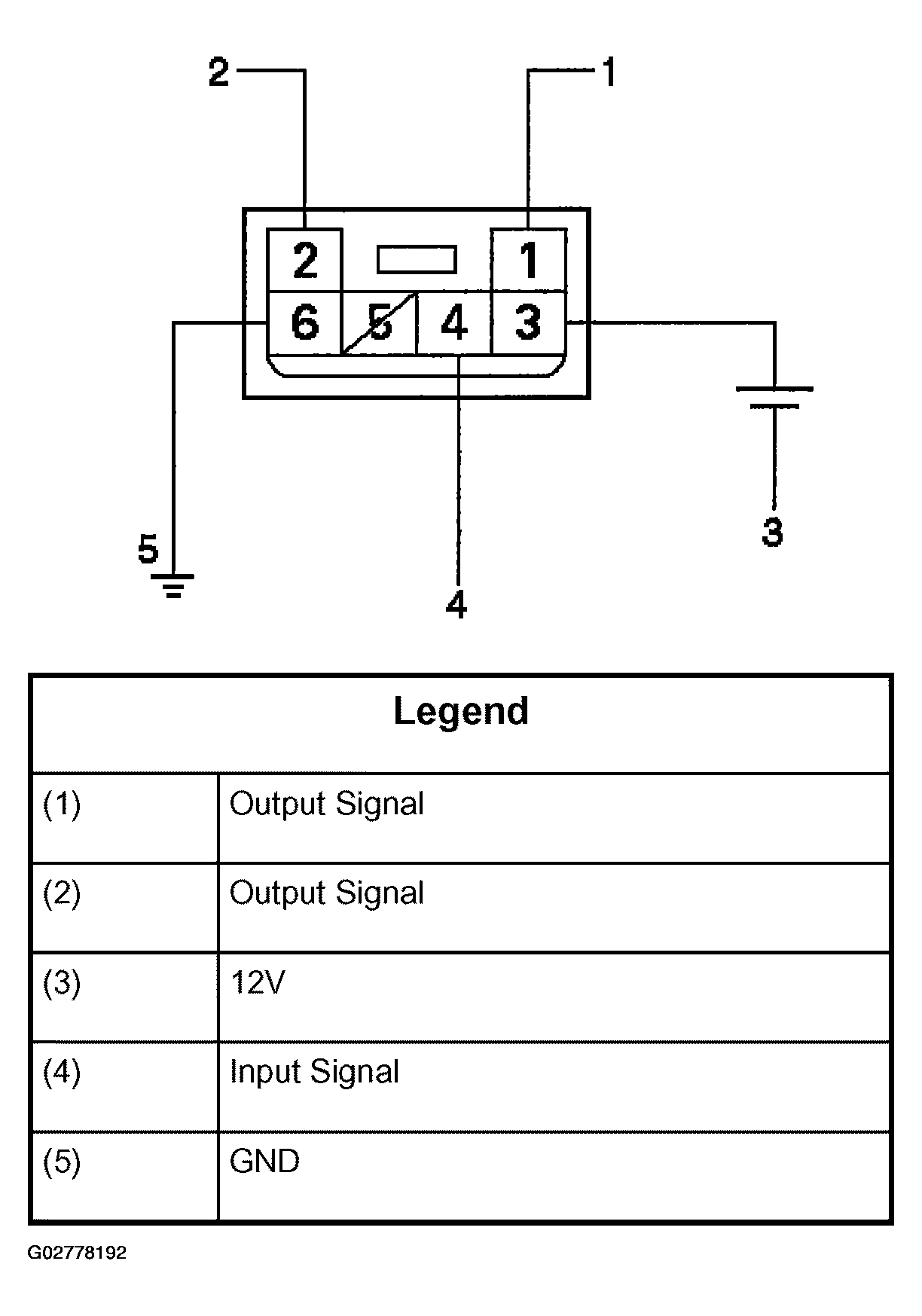

Fig 2: Identifying Axle Disconnect Controller (2 Of 2)
G02778192
  1. Connect 12V with terminal (3) and the ground with the terminal (6).
  2. Send the signal to the terminal (4).
    1. 2WD-4WD less than 2.4V
    2. 4WD-2WD more than 9.0V
  3. Confirm the output signal from the terminals (1) & (2) (2 seconds output)

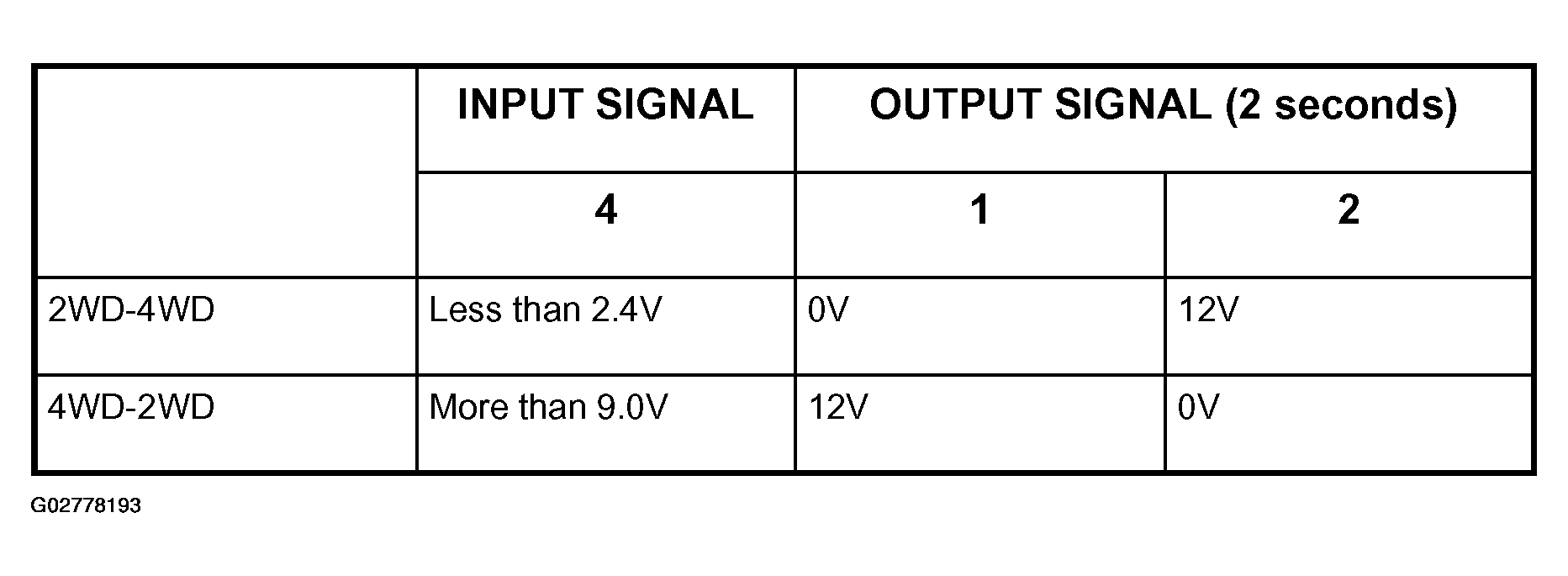

    Fig 3: Confirming Output Signal From Terminal 1 & 2 Chart
    G02778193
  4. If the trouble occurs after the above test, charge the Axle Disconnect controller to the new one.
