Transfer-related indicator lamp and switch function

Fig 1: Transfer-Related Indicator Lamp And Switch Function Chart (1 Of 2)

Courtesy of ISUZU MOTOR CO.

* Completion of transfer case H-L area and axle shift timing may cause some variation in 2Hz blinking pattern.

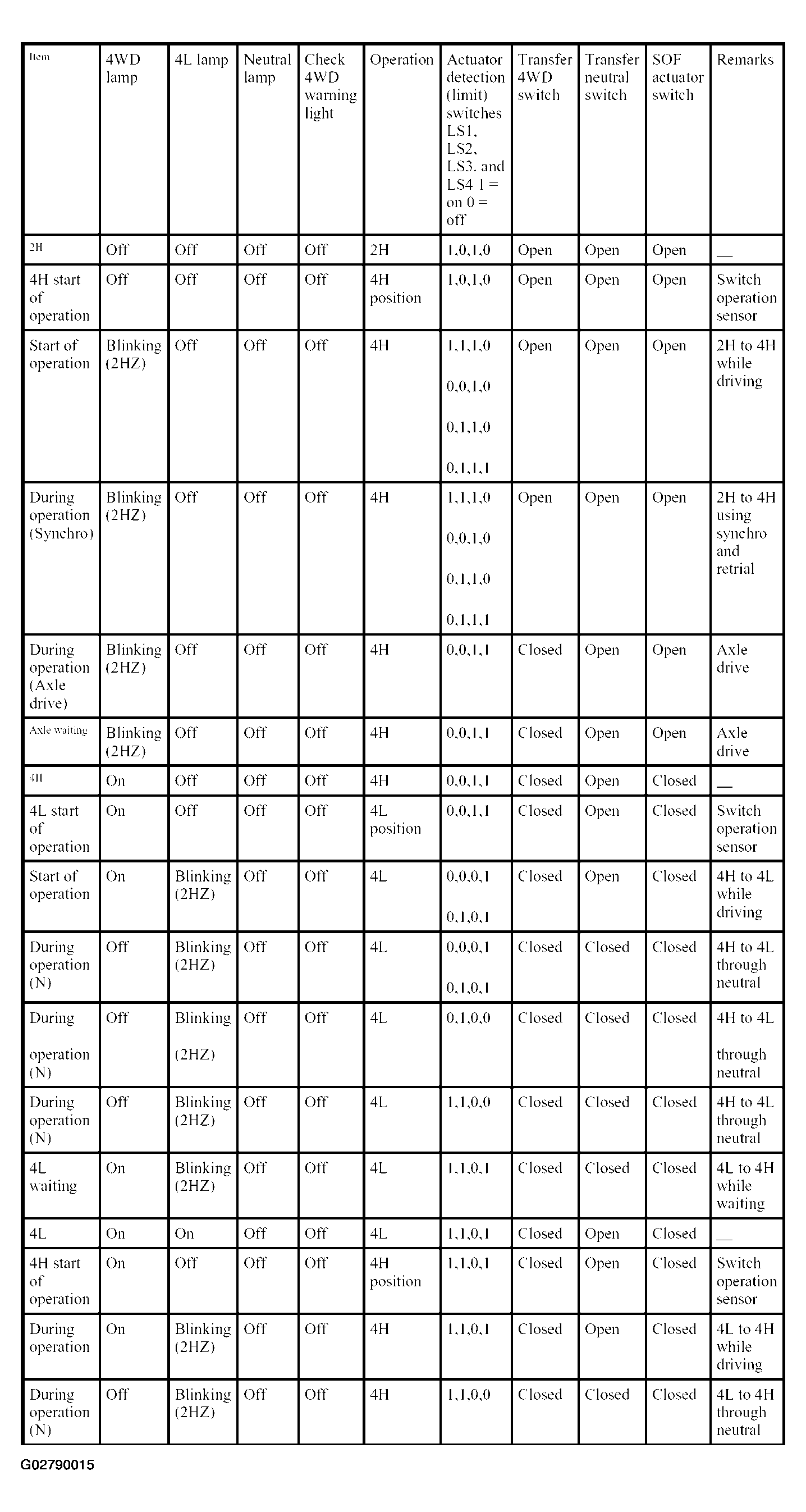

Fig 2: Transfer-Related Indicator Lamp And Switch Function Chart (2 Of 2)

Courtesy of ISUZU MOTOR CO.
