Lock Cylinder: Removal

  1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
  2. Turn the ignition switch to "LOCK".
  3. Disconnect the battery "-" terminal cable, and wait at least 5 minutes.
  4. Disconnect the yellow 2-way SRS connector located under the steering column.
    CAUTION: The wheels of the vehicle must be straight ahead and the steering column in the "LOCK" position before disconnecting the steering wheel. Failure to do so will cause the coil assembly to become uncentered which will cause damage to the coil assembly.
  5. Remove the engine hood opening lever and steering lower cover.
  6. Remove driver knee bolster (reinforcement).
  7. Loosen the inflator module fixing bolt from behind the steering wheel assembly using a TORX® driver or equivalent until the inflator module can be released from steering assembly.

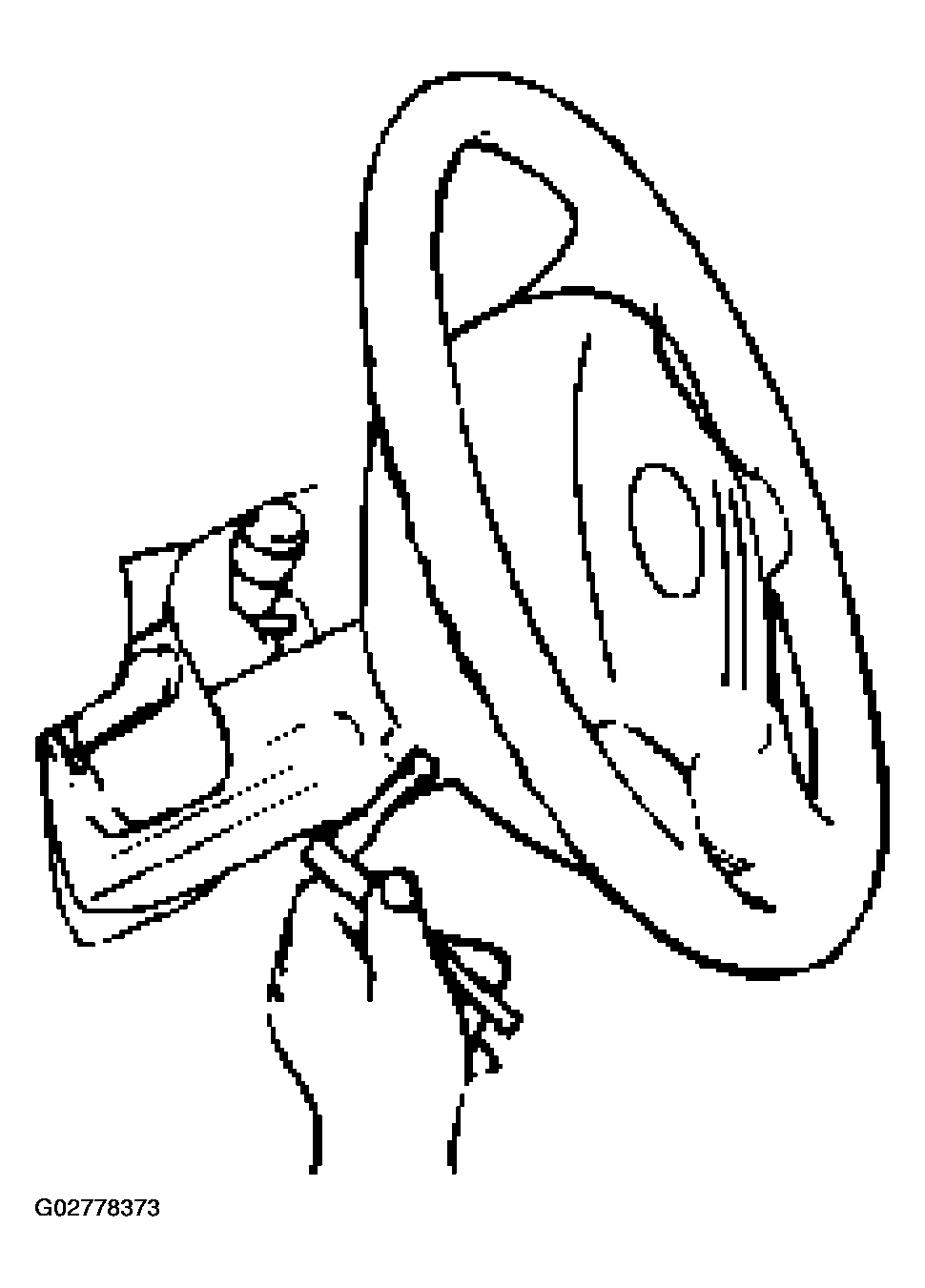

    Fig 1: Removing Steering Wheel
    G02778373Courtesy of ISUZU MOTOR CO.
  8. Disconnect the yellow 2-way SRS connector located behind the inflator module.

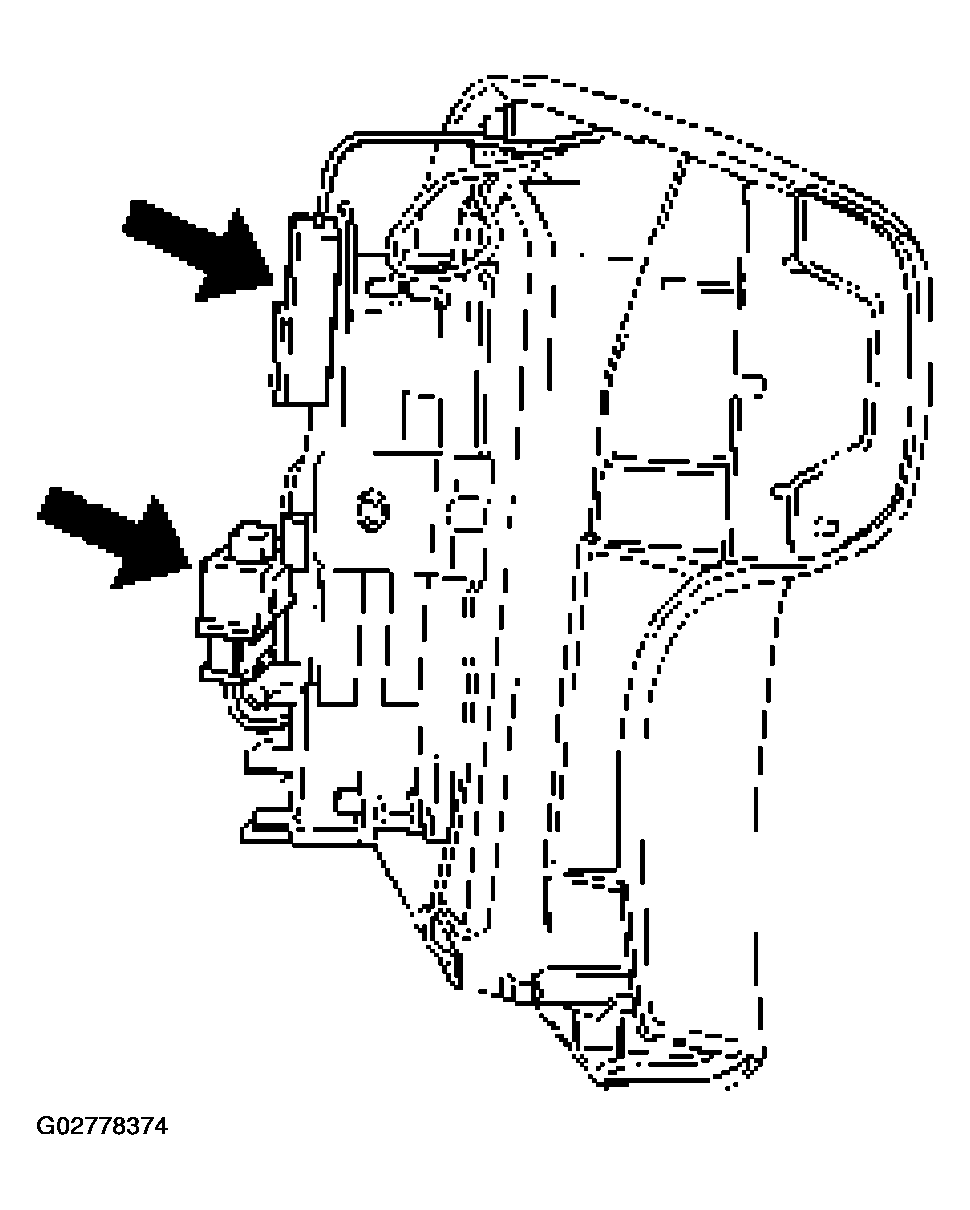

    Fig 2: Disconnecting SRS Connector
    G02778374Courtesy of ISUZU MOTOR CO.
  9. Apply a setting mark (1) across the steering wheel and shaft so parts can be reassembled in their original position.

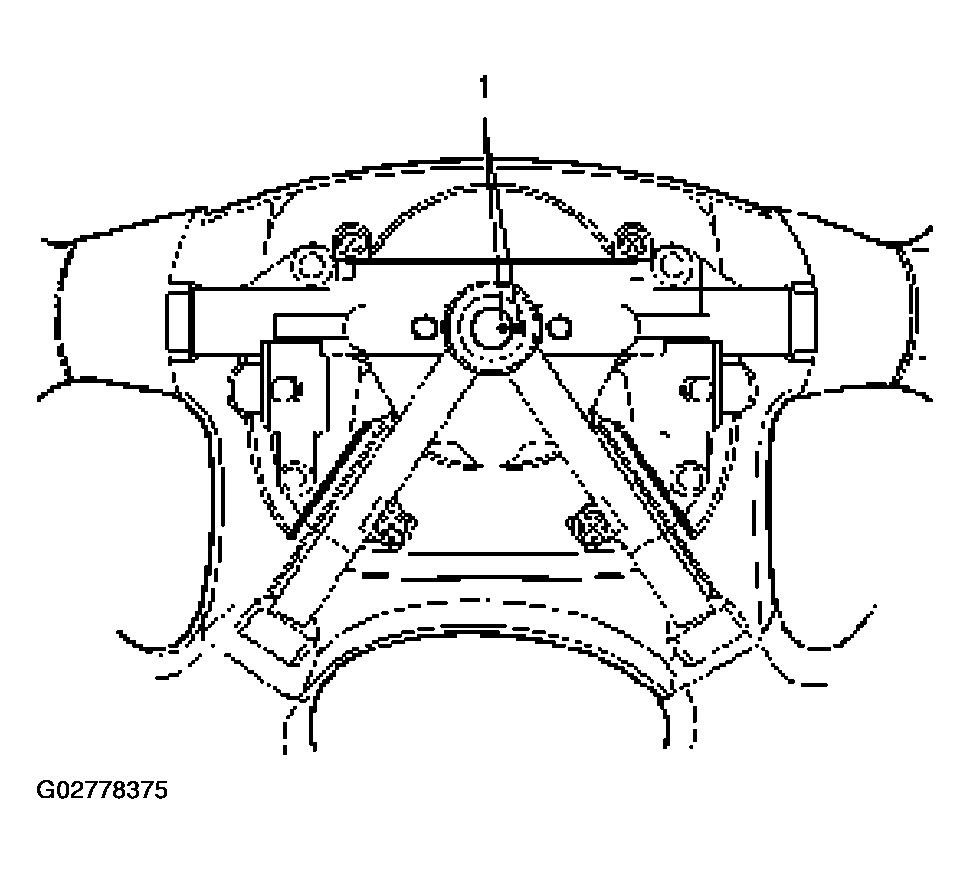

    Fig 3: Applying Setting Mark
    G02778375Courtesy of ISUZU MOTOR CO.
  10. Move the front wheels to the straight ahead position, then use steering wheel remover J-29752 to remove the steering wheel.
    CAUTION: Never apply force to the steering wheel in direction of the shaft by using a hammer or other impact tools in an attempt to remove the steering wheel. The steering shaft is designed as an energy absorbing unit.

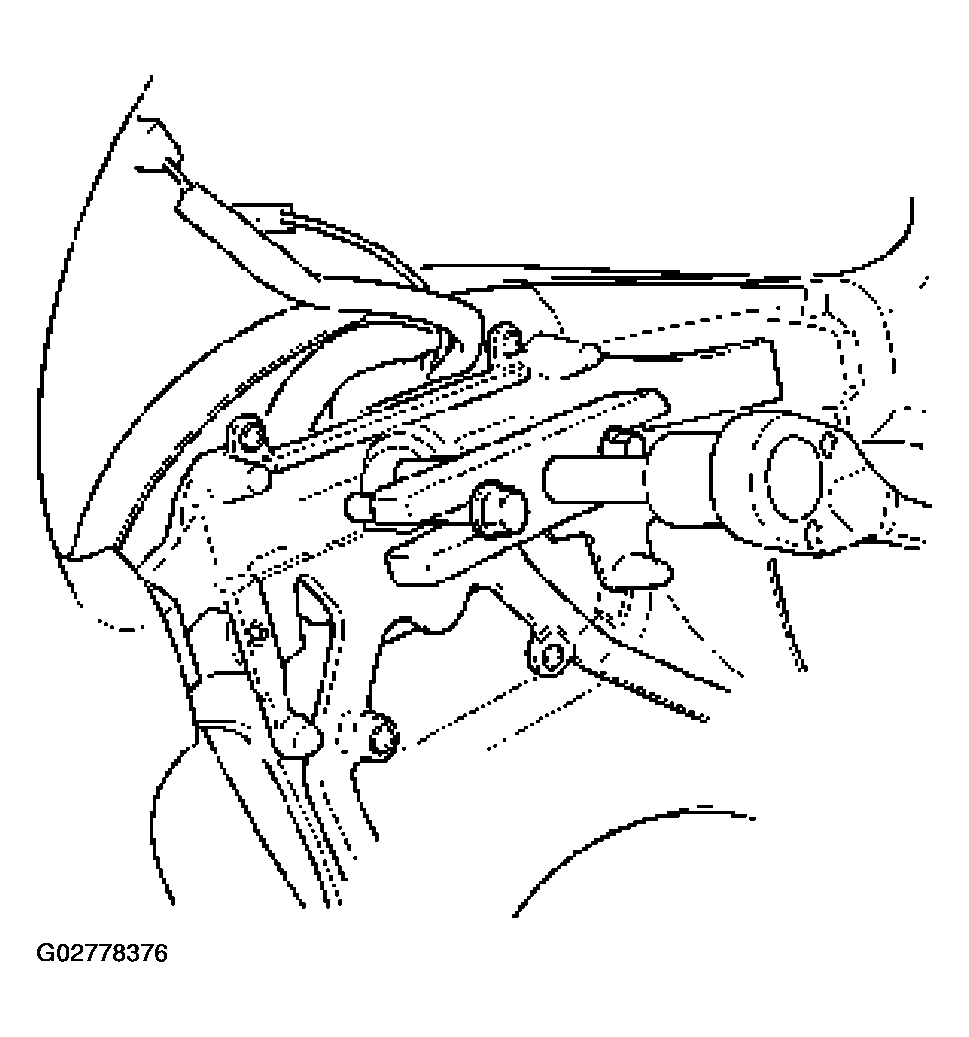

    Fig 4: Removing Steering Wheel
    G02778376Courtesy of ISUZU MOTOR CO.
    WARNING: THE INFLATOR MODULE SHOULD ALWAYS BE CARRIED WITH THE TRIM COVER AWAY FROM YOUR BODY AND SHOULD ALWAYS BE LAID ON A FLAT SURFACE WITH THE URETHANE SIDE UP. THIS IS NECESSARY BECAUSE A FREE SPACE IS PROVIDED TO ALLOW THE AIR CUSHION TO EXPAND IN THE UNLIKELY EVENT OF ACCIDENTAL DEPLOYMENT. OTHERWISE, PERSONAL INJURY MAY RESULT.
    Fig 5: Removing Column Cover
    G02778377Courtesy of ISUZU MOTOR CO.
  11. Remove steering column cover.
  12. Disconnect the wiring harness connectors located under the steering column.
  13. Remove the combination switch assembly with SRS coil.

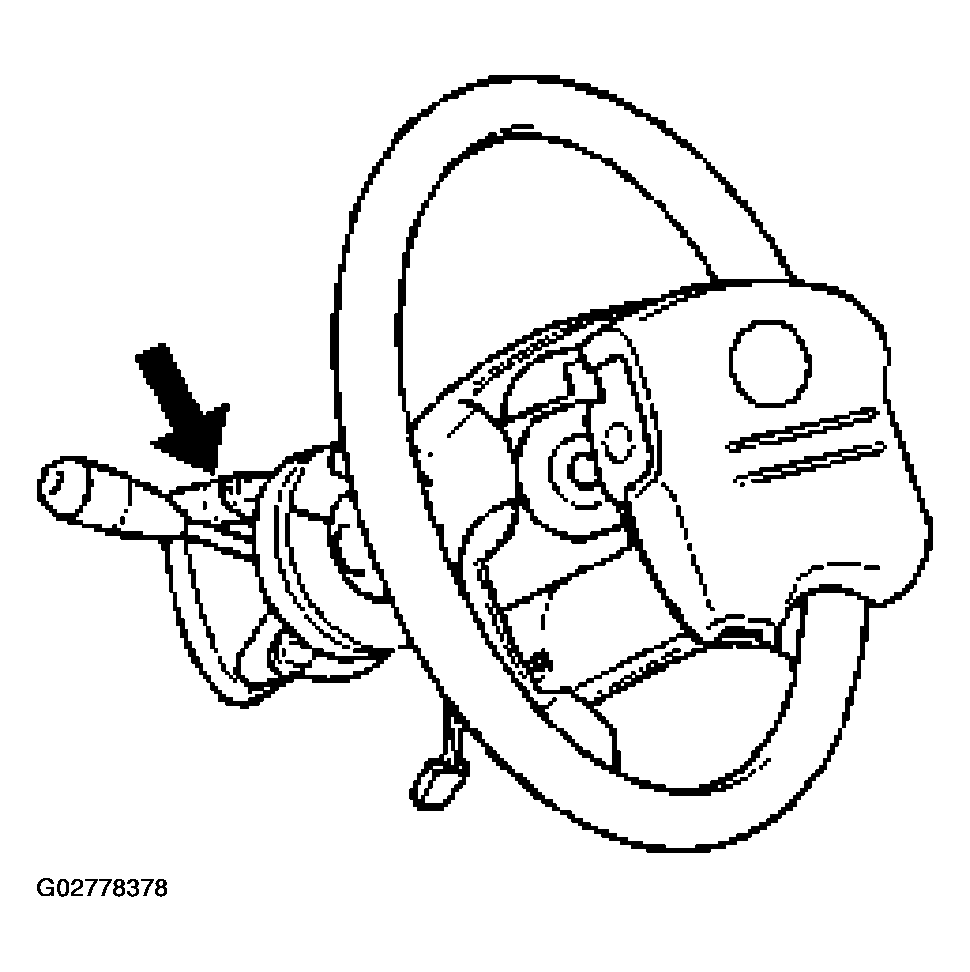

    Fig 6: Removing Steering Column Cover
    G02778378Courtesy of ISUZU MOTOR CO.
  14. Remove snap ring.
  15. Remove cushion rubber.
  16. Remove shift lock cable (for A/T).
  17. Disconnect the starter switch harness connector located under the steering column then remove lock cylinder assembly.
