Power Steering Unit Disassembled View

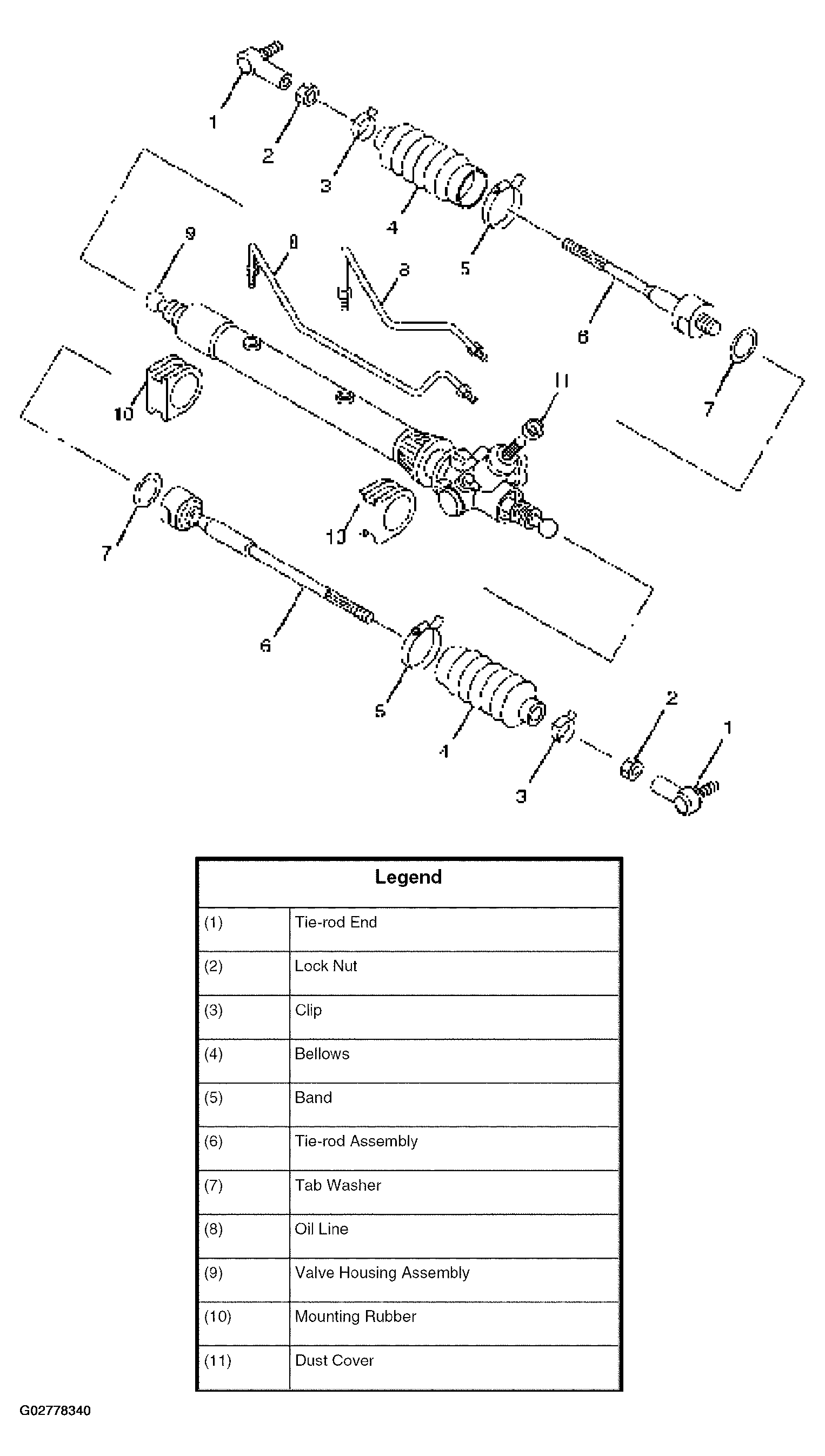

Fig 1: Exploded View Of Power Steering Unit
G02778340Courtesy of ISUZU MOTOR CO.
