Body Dimension
›
Room Section
Room Section

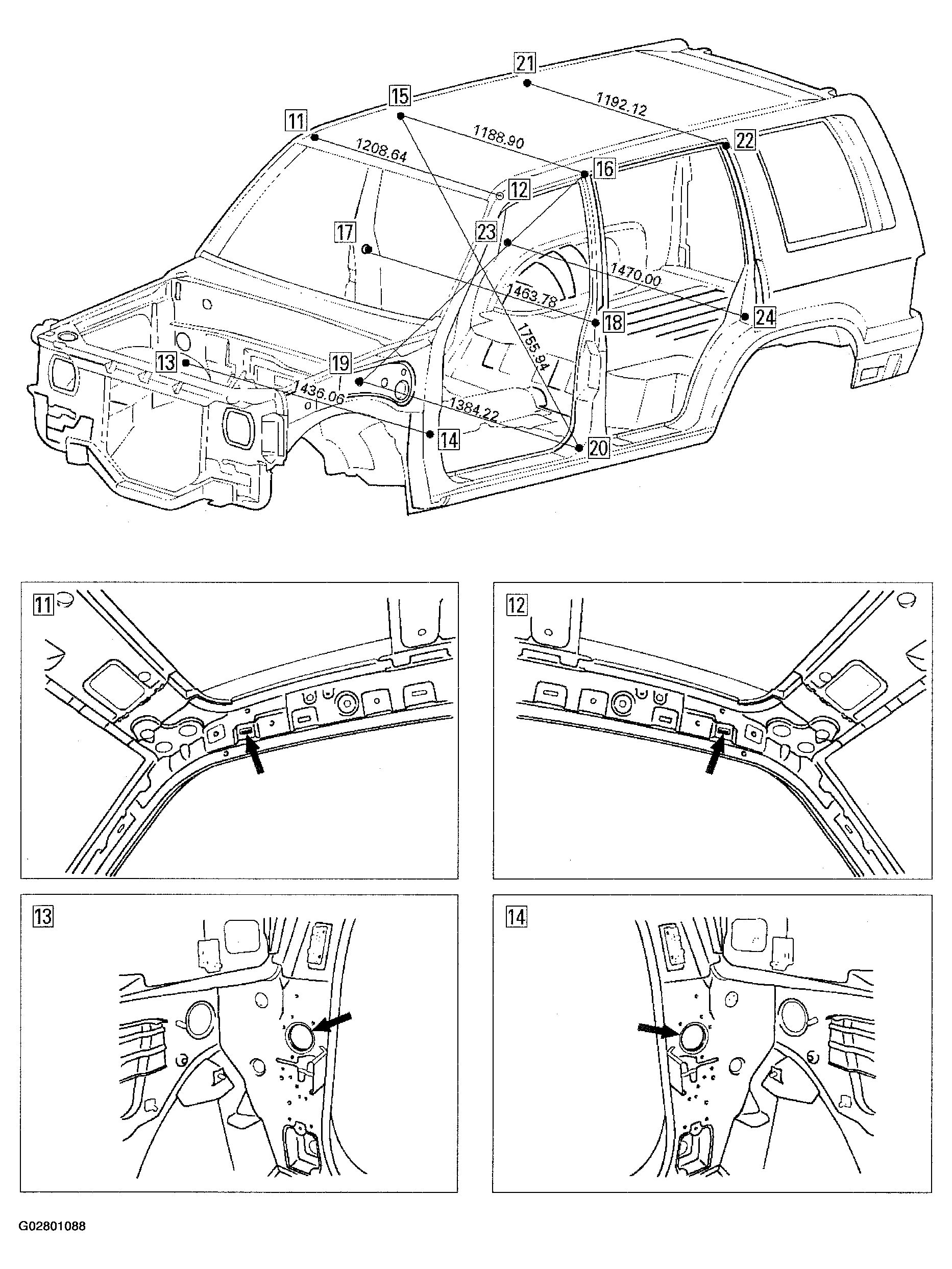

Fig 1: Identifying Room Section Dimensions (1 Of 3)
Courtesy of ISUZU MOTOR CO.

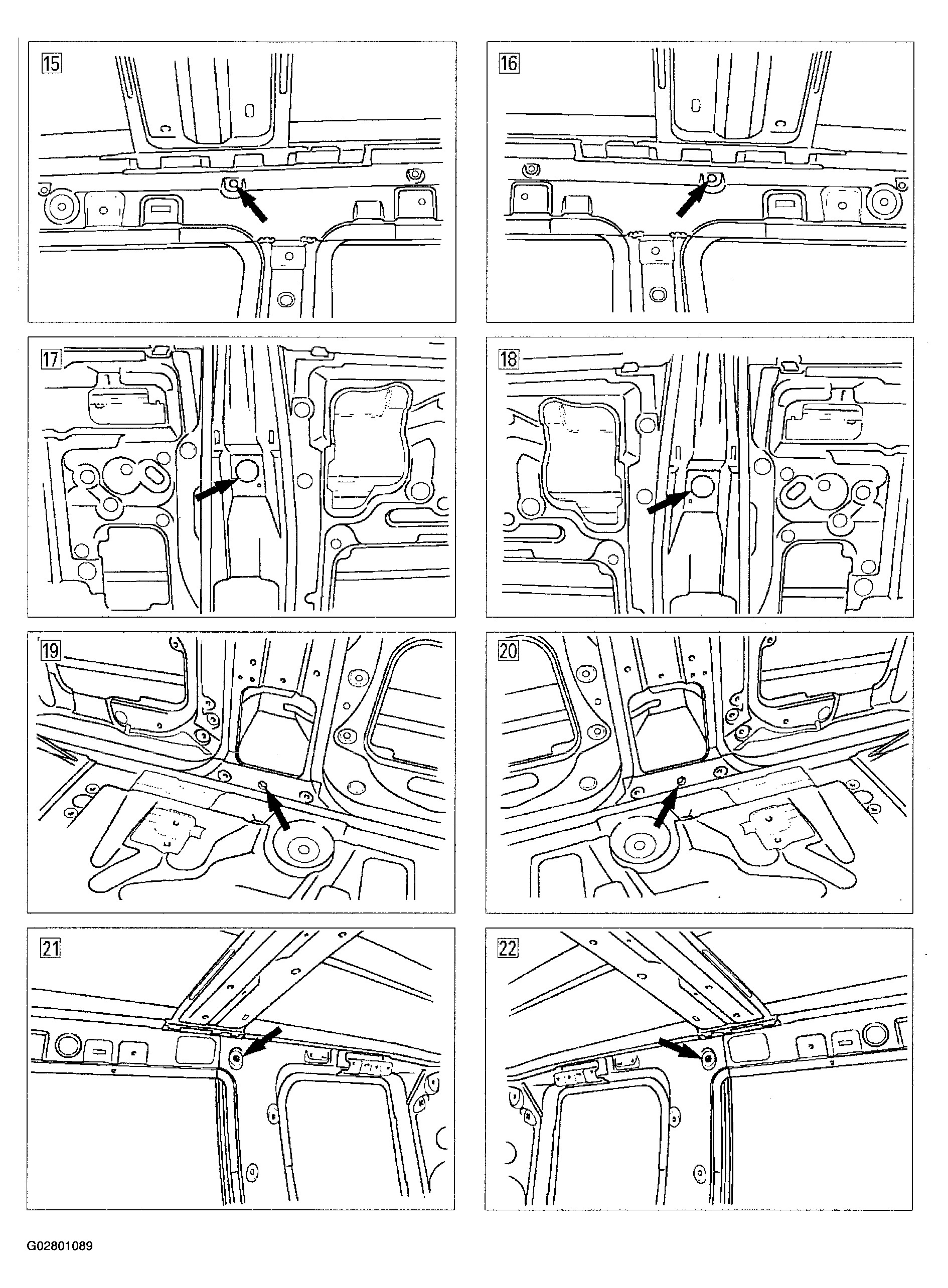

Fig 2: Identifying Room Section Dimensions (2 Of 3)
Courtesy of ISUZU MOTOR CO.

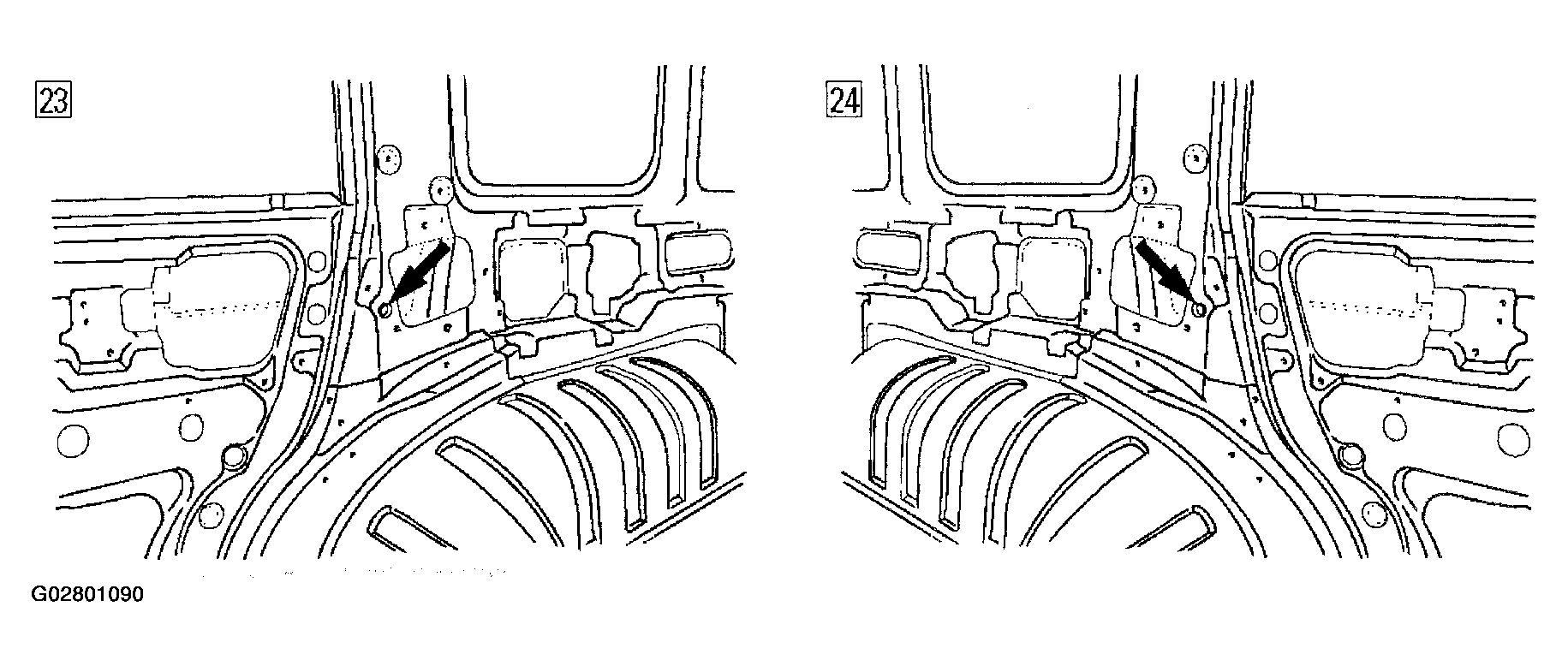

Fig 3: Identifying Room Section Dimensions (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
