Parts Location
Parts Location

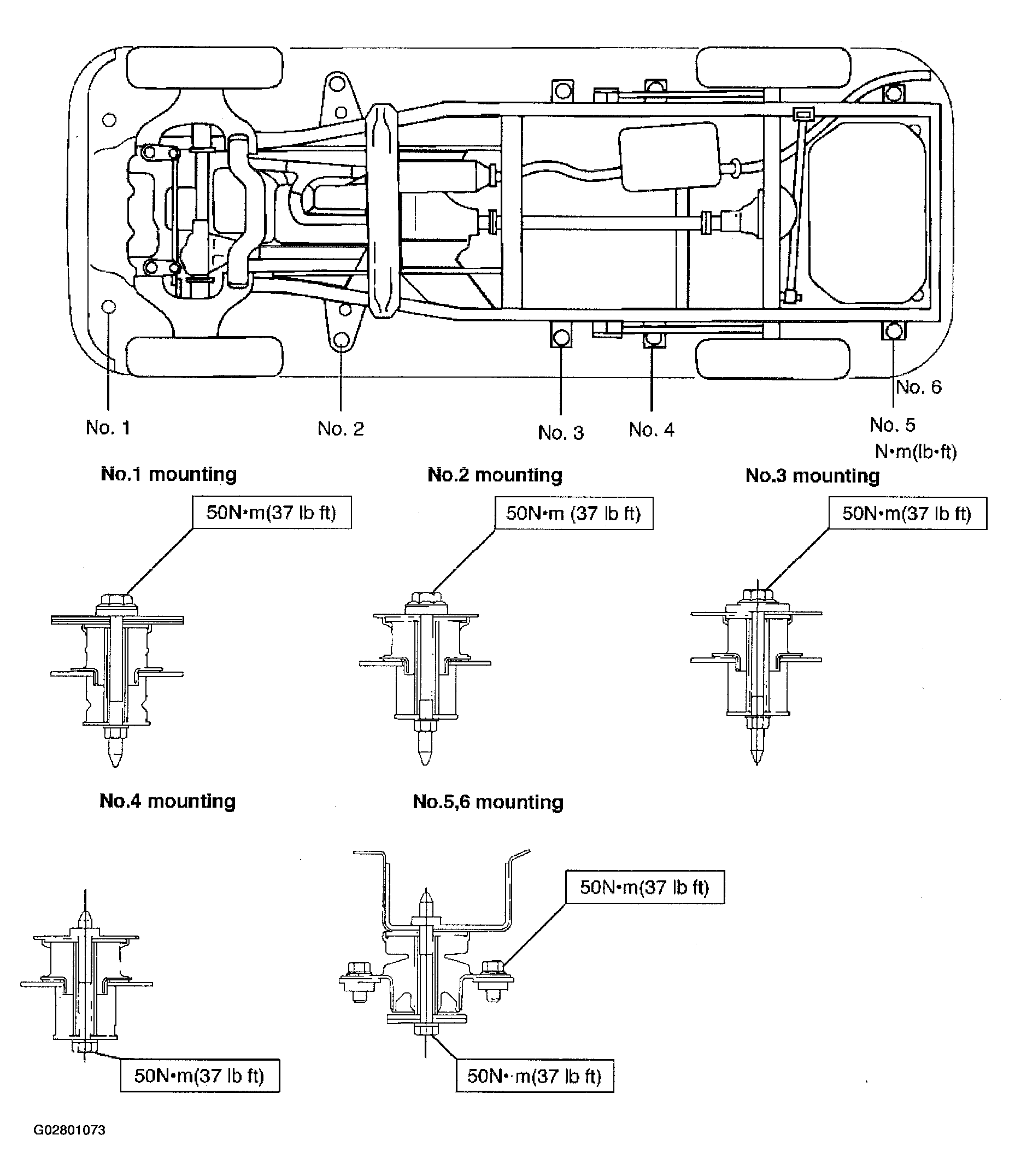

Fig 1: Locating Body Mounting Components
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
