Parts Location

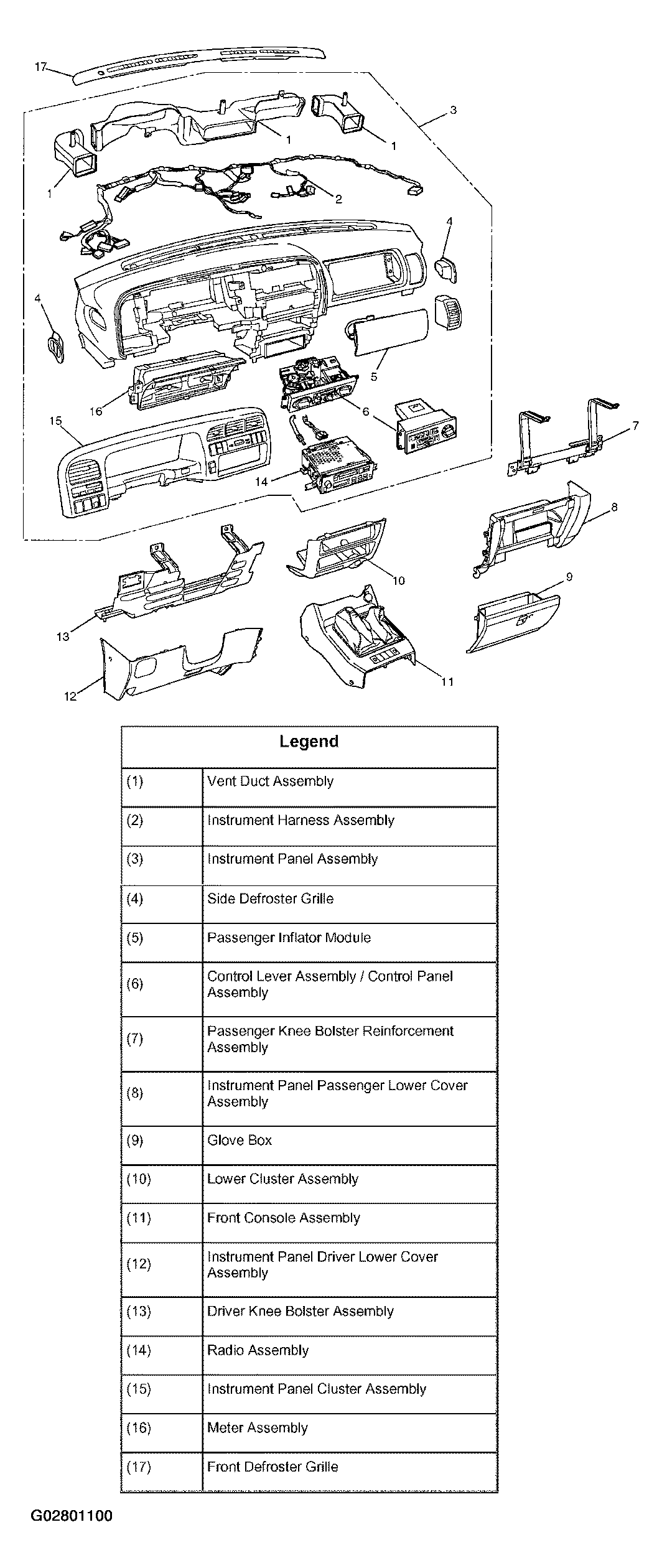

Fig 1: Locating Instrument Panel Assembly Components
G02801100Courtesy of ISUZU MOTOR CO.
