Engine Cooling: Radiator: Installation

1. Install rubber cushions on both sides of radiator bottom.
2. Install radiator assembly with hose, taking care not to damage the radiator core with a fan blade.
3. Install bracket (6) and support the radiator upper tank with the bracket (5) and secure the radiator.
4. Connect reserve tank hose (4).
5. Install lower fan guide (3).
6. Connect radiator inlet hose and outlet hose to the engine.
7. Connect oil cooler hose (1) to automatic transmission.

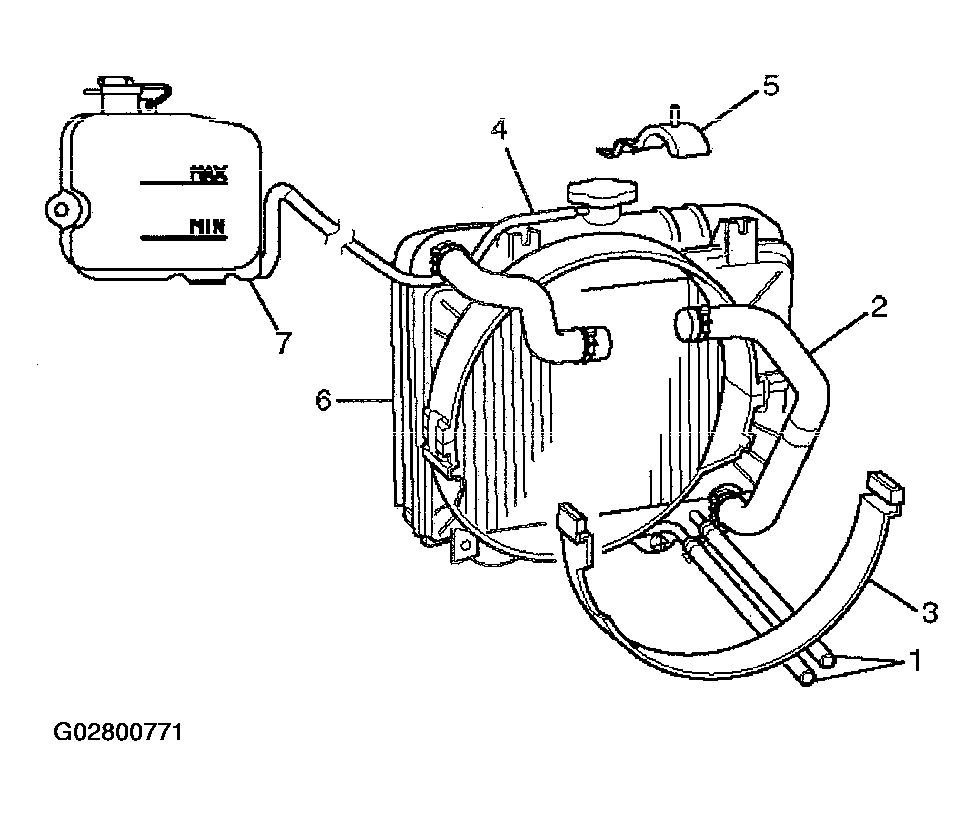

   Fig 1: Connecting Hoses

   Courtesy of ISUZU MOTOR CO.
8. Connect battery ground cable.
9. Pour engine coolant up to filler neck of radiator, and up to MAX mark of reserve tank.

Fig 2: Identifying MAX Mark Of Reserve Tank

Courtesy of ISUZU MOTOR CO.
