Main Data and Specifications
›
Power Steering Gear Torque Specifications
Power Steering Gear Torque Specifications

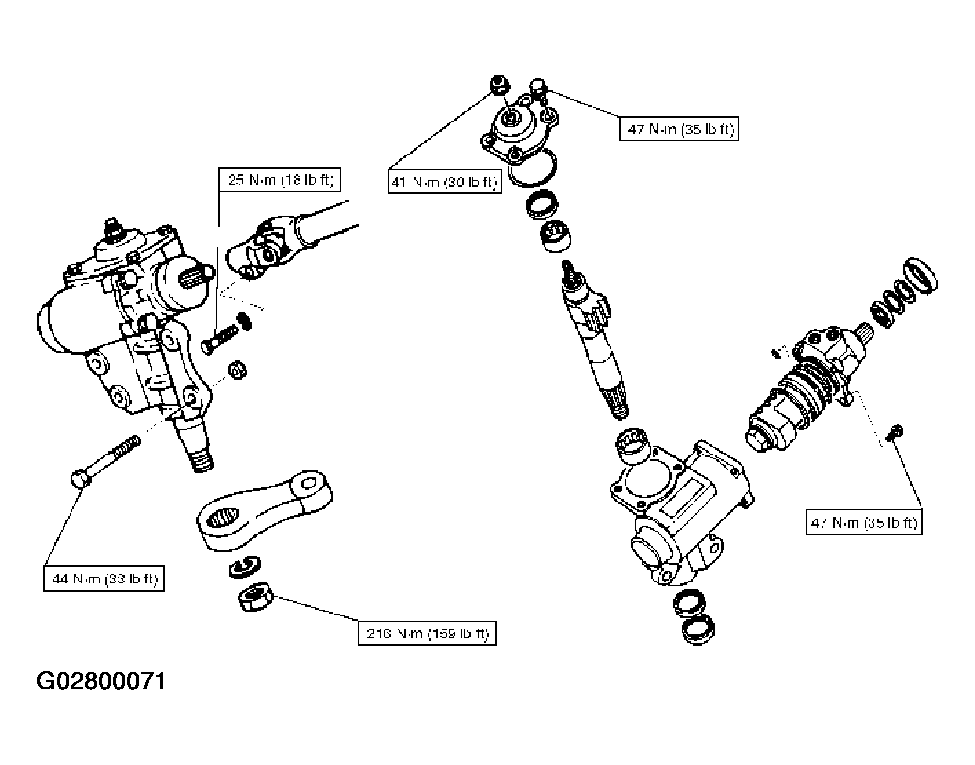

Fig 1: Power Steering Gear Torque Specifications
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
