Rear Section

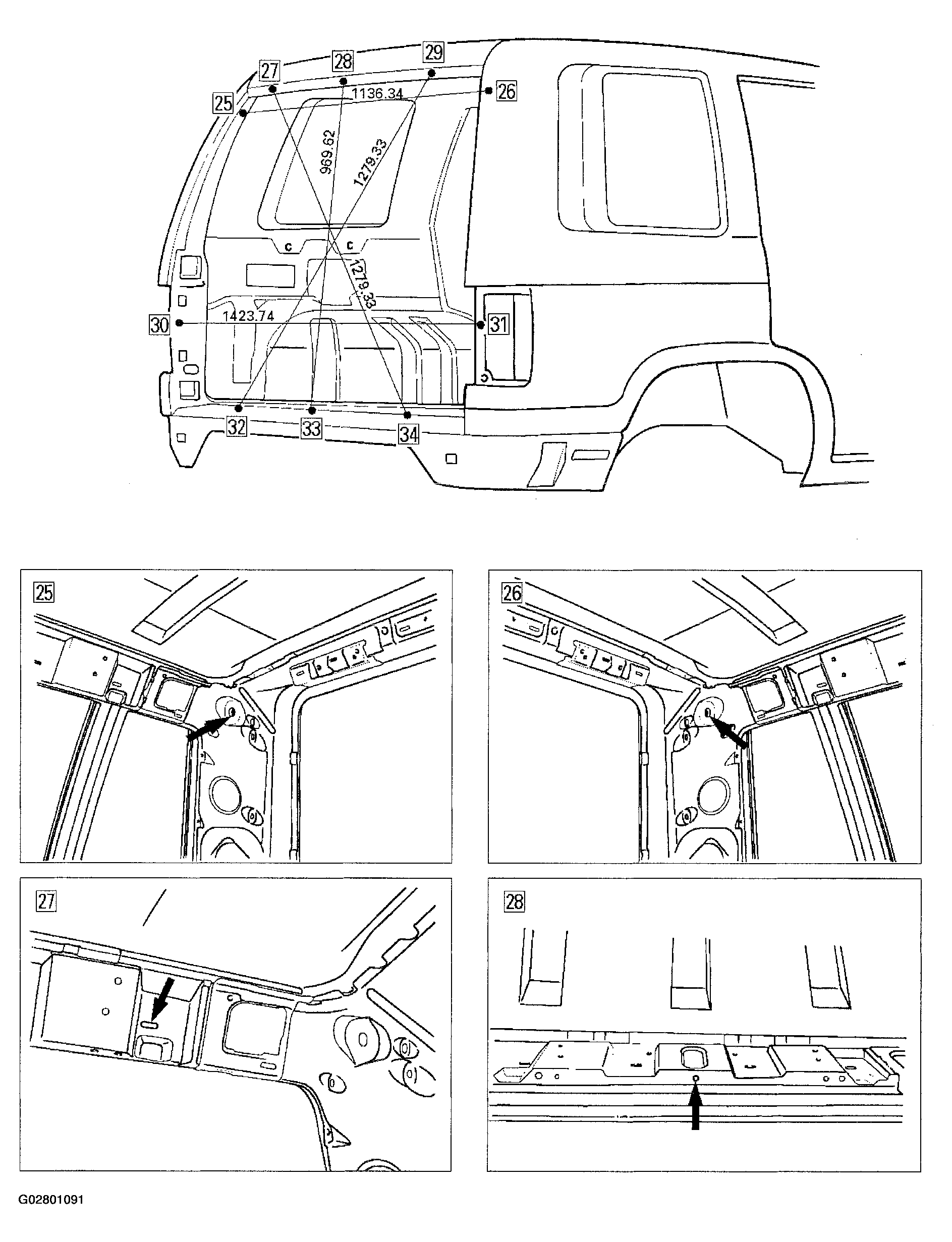

Fig 1: Identifying Rear Section Dimensions (1 Of 2)
Courtesy of ISUZU MOTOR CO.

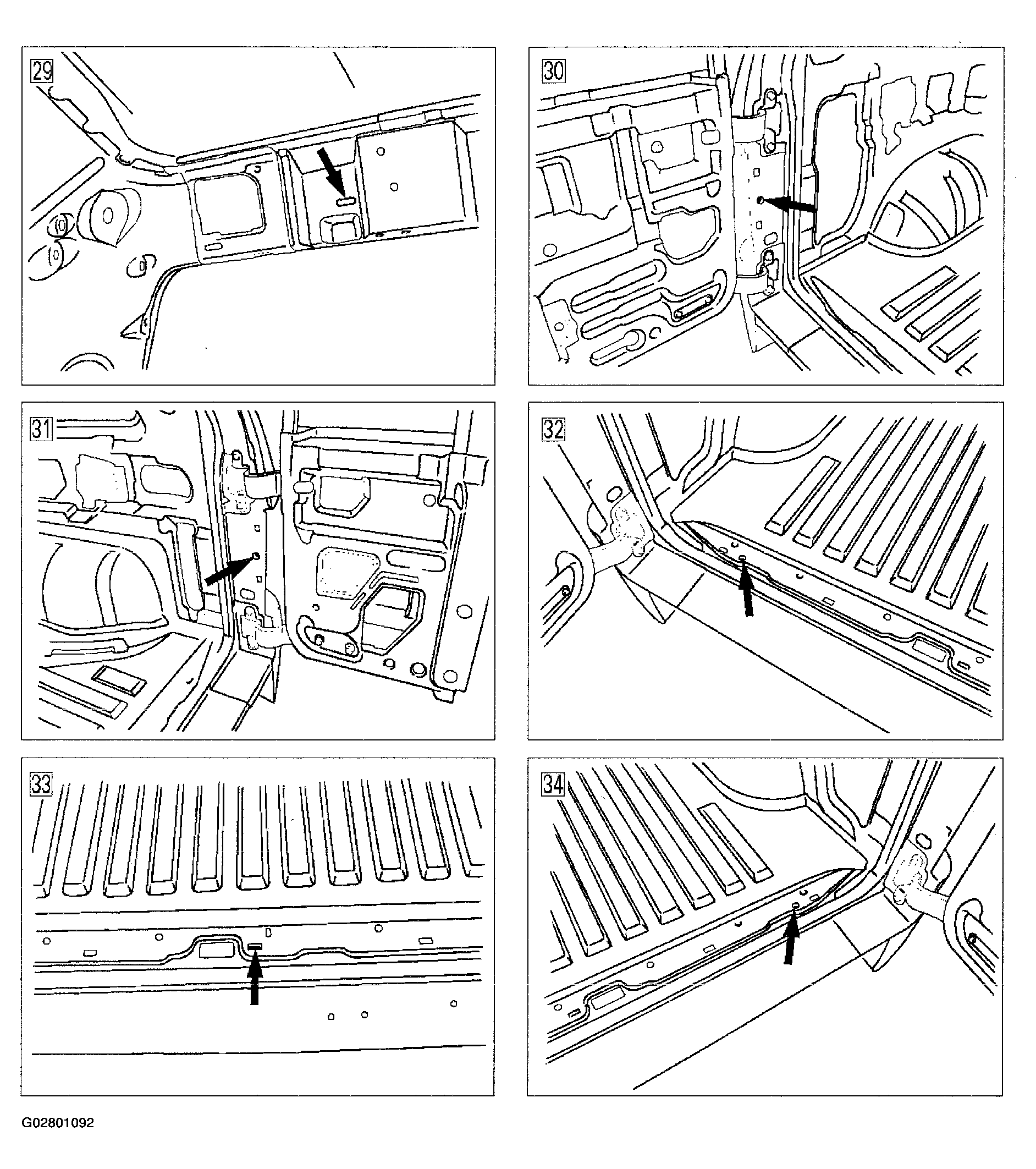

Fig 2: Identifying Rear Section Dimensions (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
