Front Wheel Speed Sensor and Associated Parts: Installation

  1. Install speed sensor and take care not to hit the speed sensor pole piece during installation.
  2. Install speed sensor fixing bolt and tighten the fixing bolt to the specified torque.

    Torque

    Sensor side: 8 N.m (69 lb in)

    Caliper side: 155 N.m (115 lb ft)

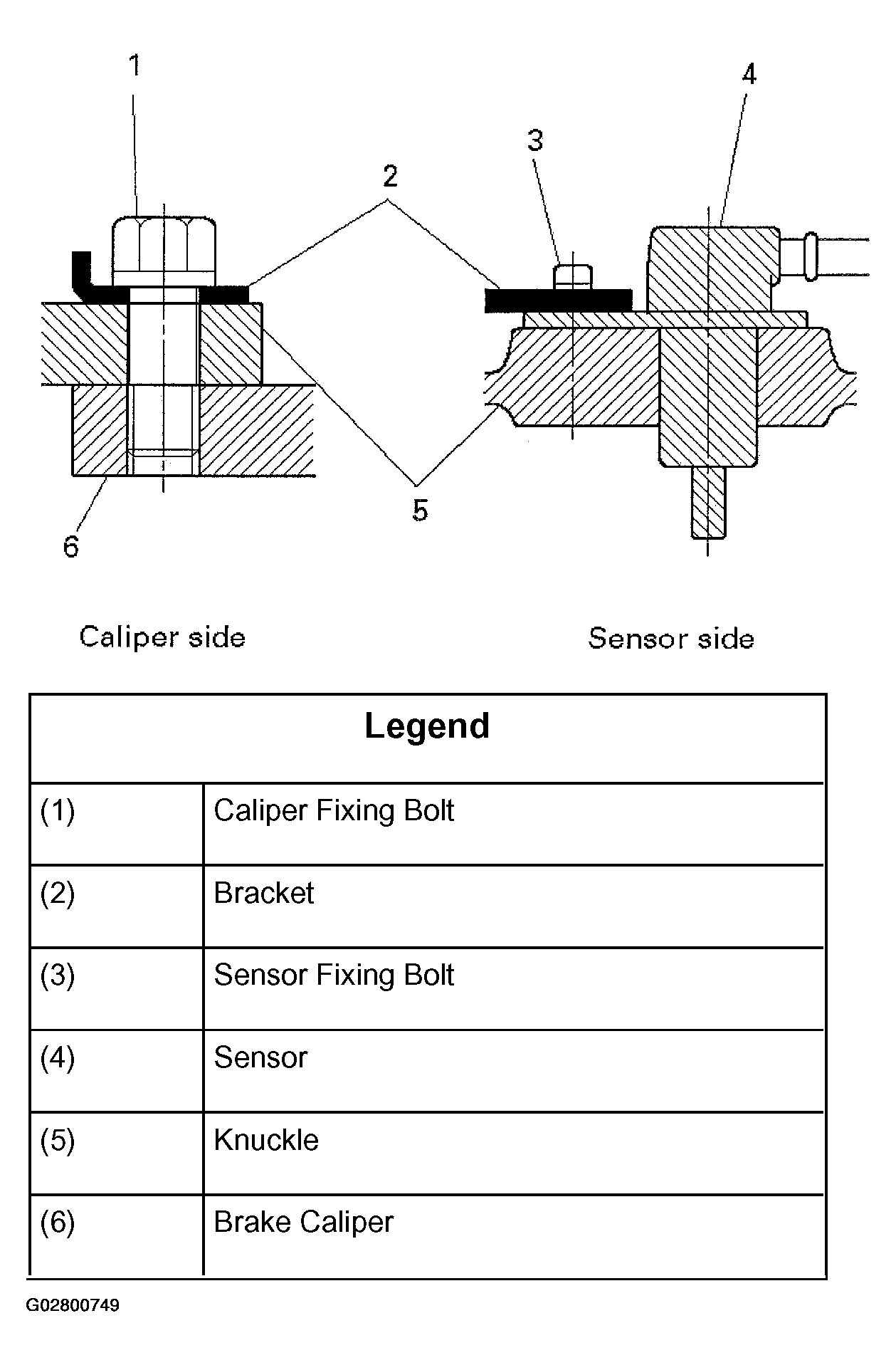

    Fig 1: Installing Speed Sensor Fixing Bolt
    G02800749Courtesy of ISUZU MOTOR CO.
  3. Install speed sensor cable fixing bolt (lower side) and tighten the fixing bolt to the specified torque.

    Torque:  24 N.m (18 lb ft)

  4. Install speed sensor cable fixing bolt (upper side) and tighten the fixing bolt to the specified torque.

    Torque:  6 N.m (52 lb ft)

    NOTE: Confirm that a white line marked on the cable is not twisted when connecting the speed sensor cable.
  5. Install speed sensor connector.
