Chart C-2 Transmission Input Inspection Procedure
Chart C-2 Transmission Input Inspection Procedure

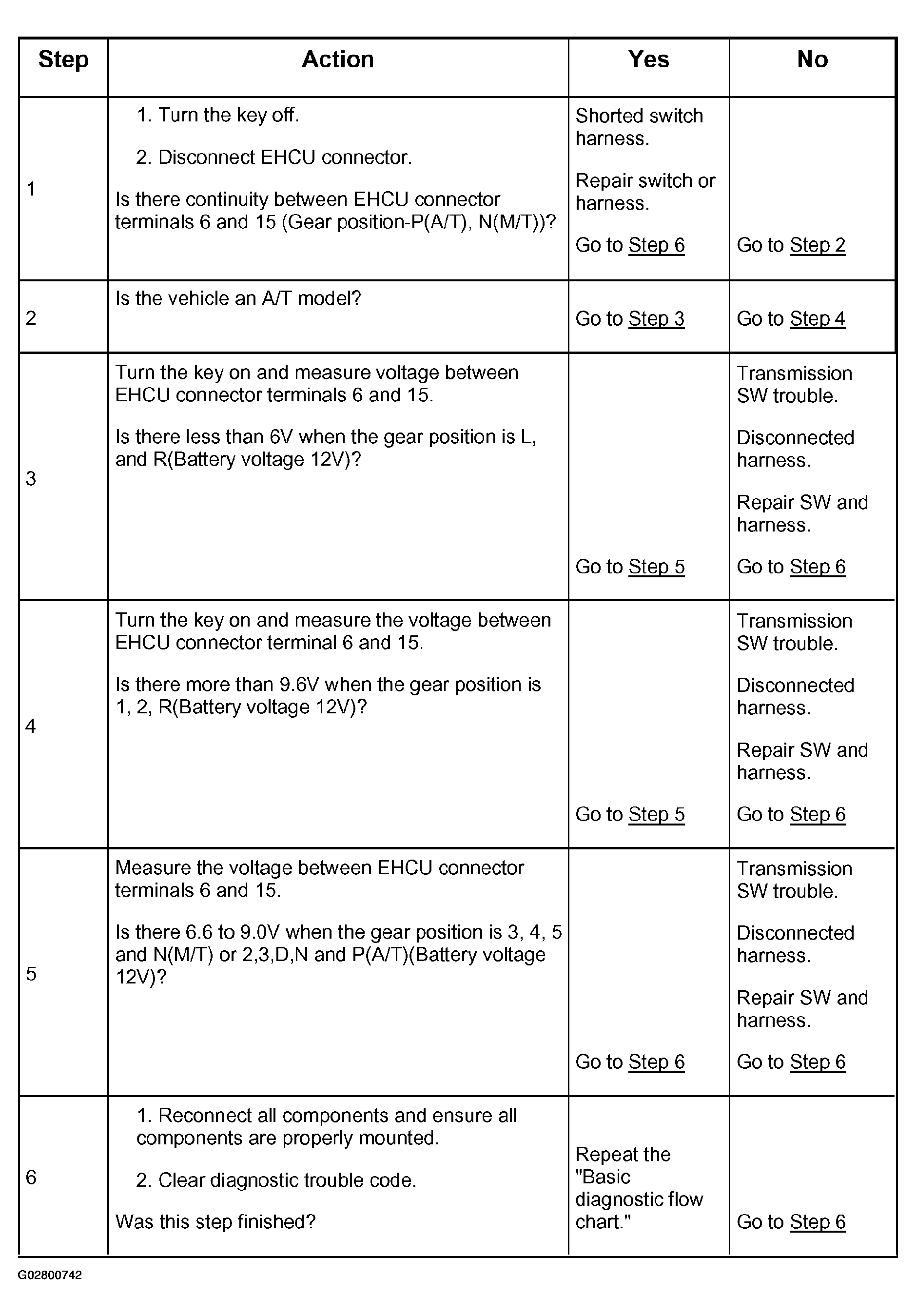

Fig 1: Transmission Input Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
