Center Track Rod Assembly
›
Center Track Rod Assembly and Associated Parts
Center Track Rod Assembly and Associated Parts

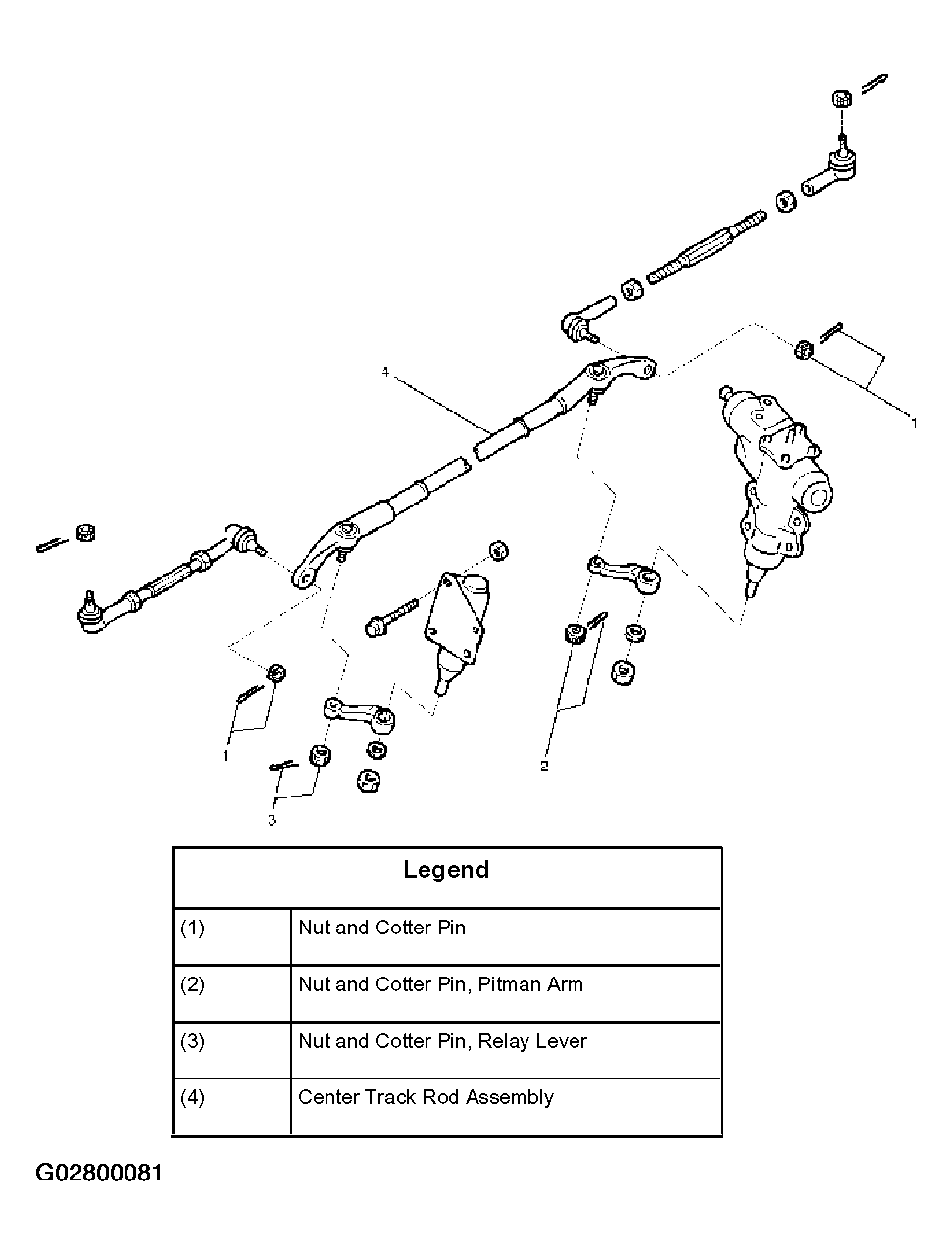

Fig 1: Identifying Center Track Rod Assembly And Associated Parts
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
