Power Steering Pump Disassembled View

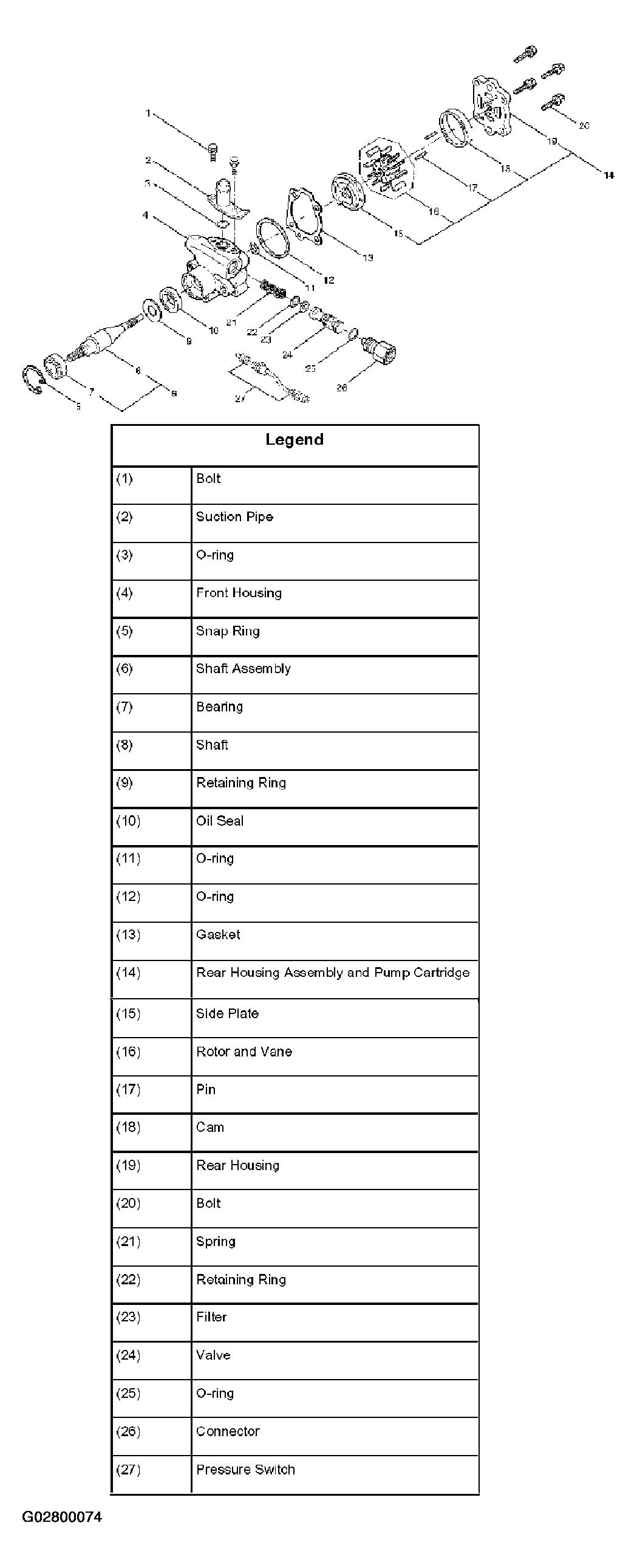

Fig 1: Exploded View Of Power Steering Pump
G02800074Courtesy of ISUZU MOTOR CO.
