Steering Column and Associated Parts
Steering Column and Associated Parts

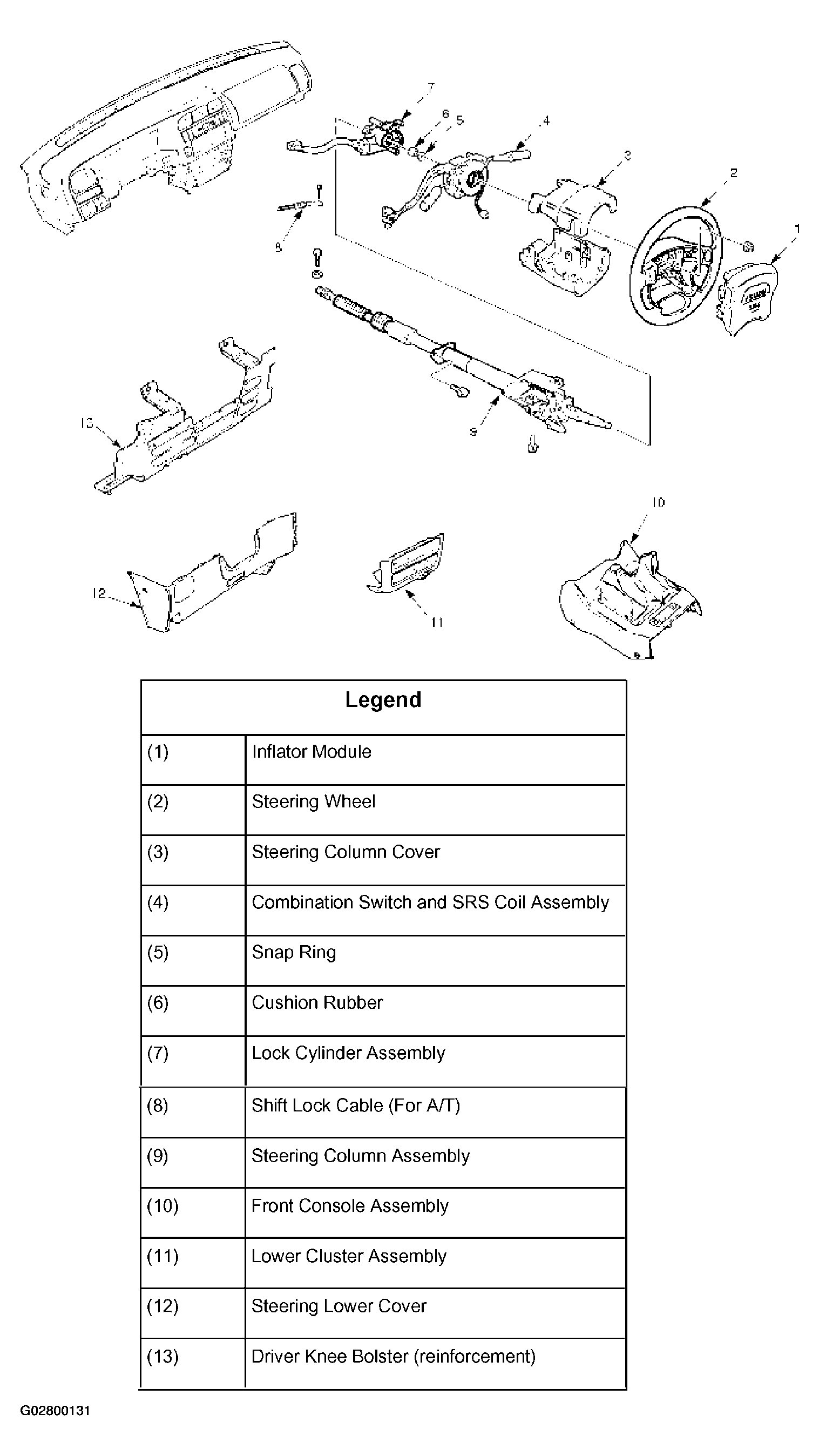

Fig 1: Exploded View Of Steering Column And Associated Parts
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
