Connector Pin Assignment: Reference

• Transfer connector pin assignment (connector on the transfer case) for inspection of transfer pins.

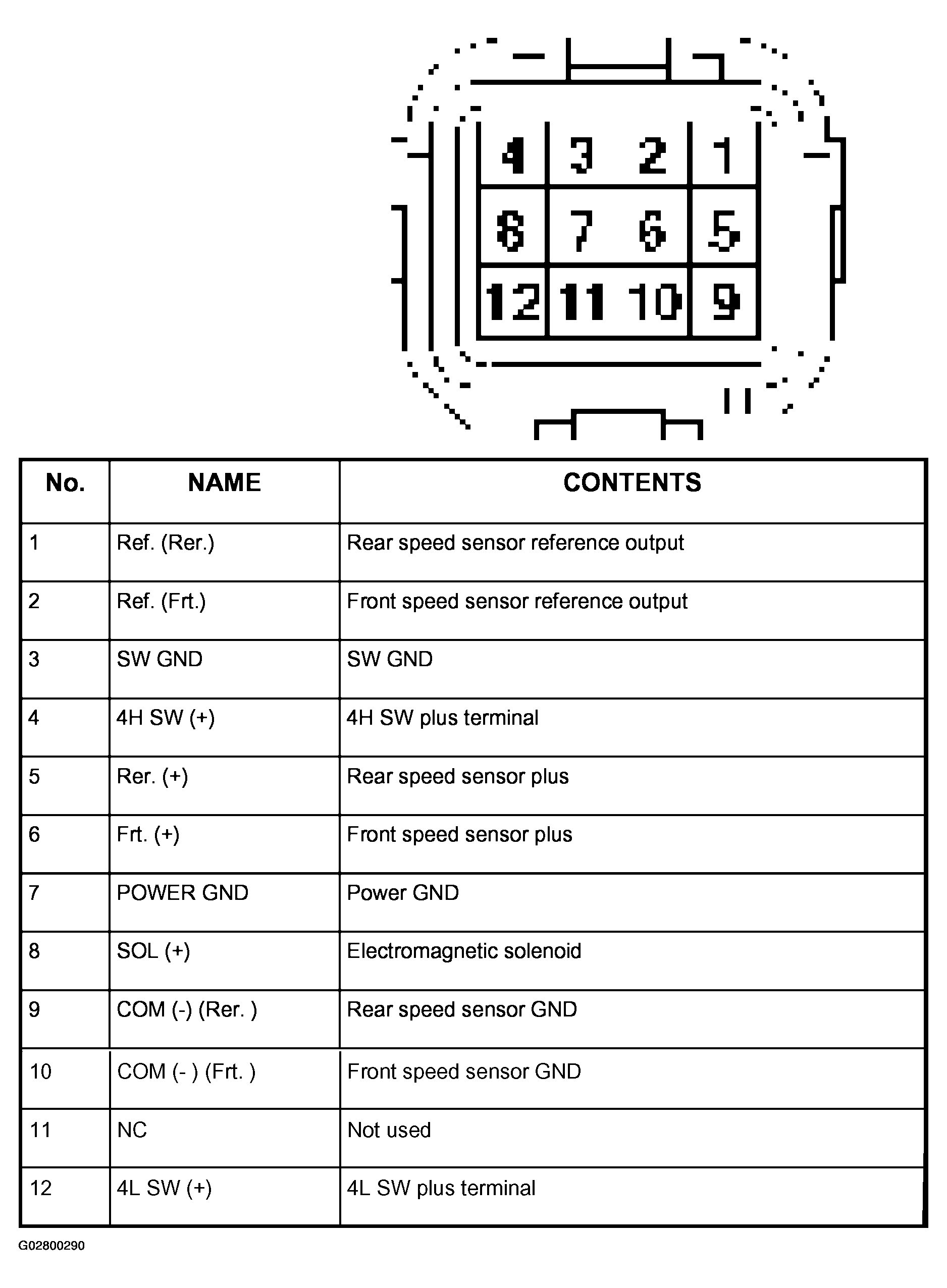

Fig 1: Identifying Transfer Connector Terminals

Courtesy of ISUZU MOTOR CO.
