Torque Specifications

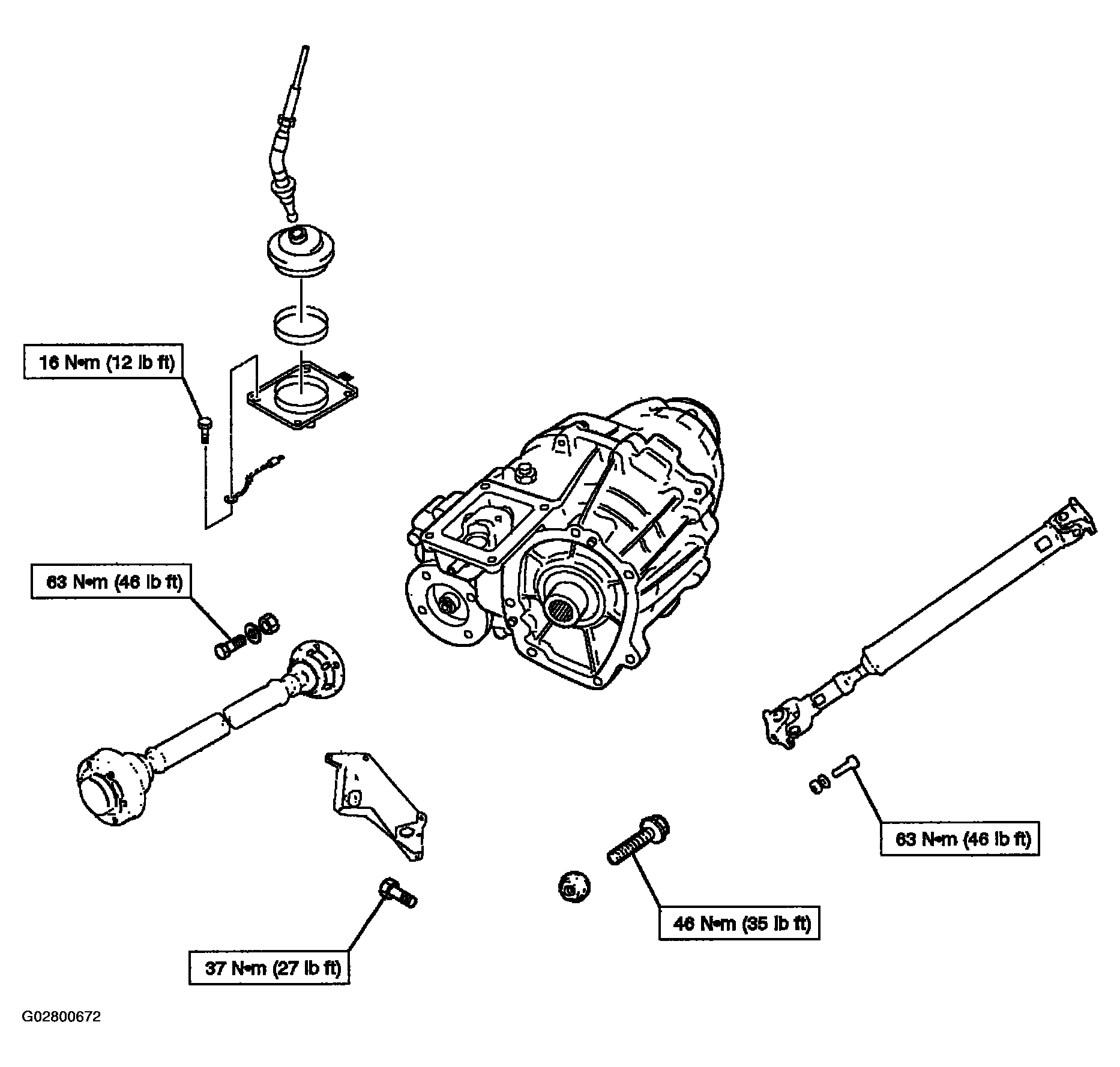

Fig 1: Transfer Case Torque Specifications (1 Of 2)
G02800672Courtesy of ISUZU MOTOR CO.

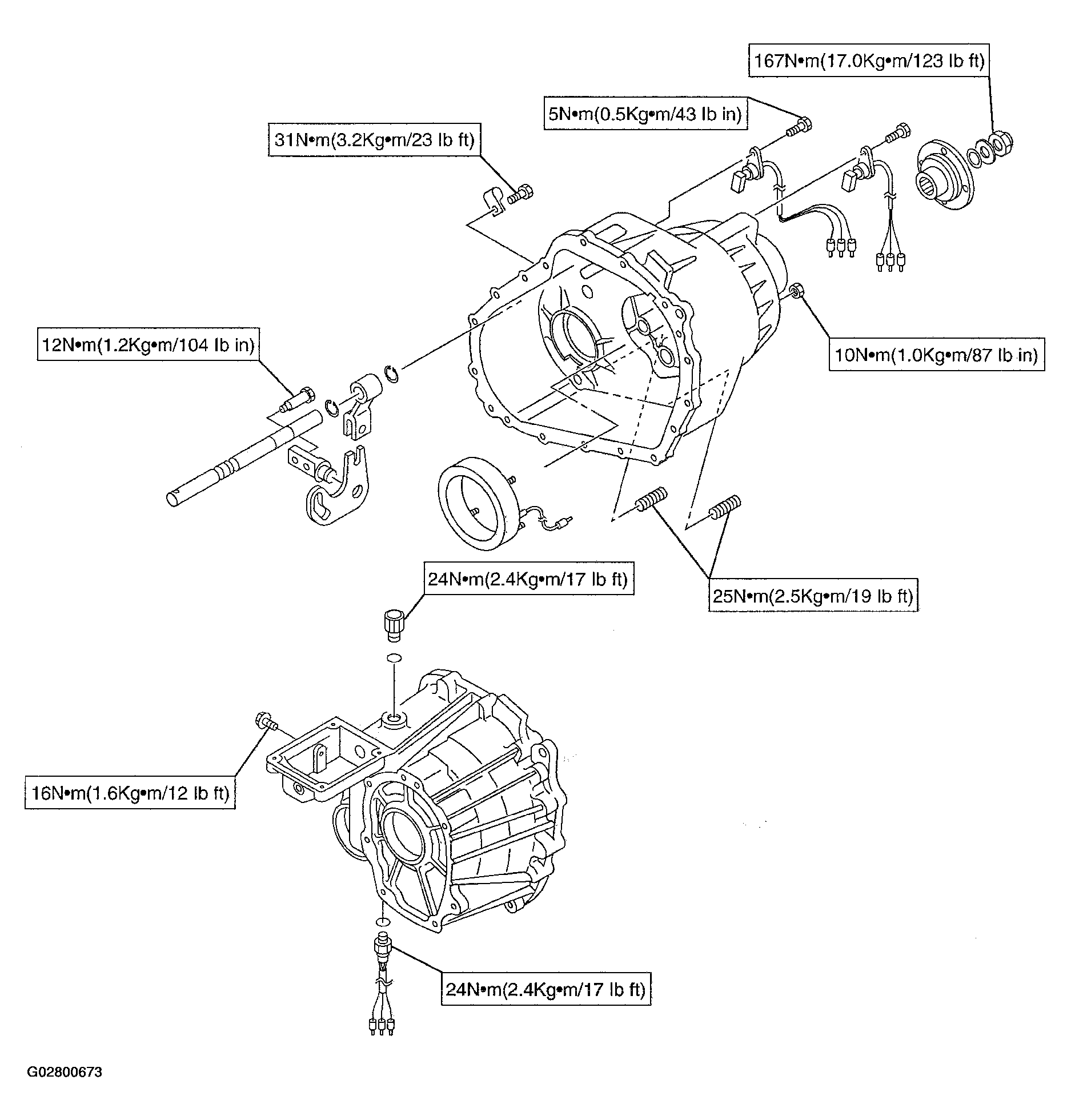

Fig 2: Transfer Case Torque Specifications (2 Of 2)
G02800673Courtesy of ISUZU MOTOR CO.
