Transfer Case Assembly: Installation

To install, follow the removal steps in the reverse order, noting the following points.

1. Apply a thin coat of grease (Besco L2) or equivalent to the input shaft spline.

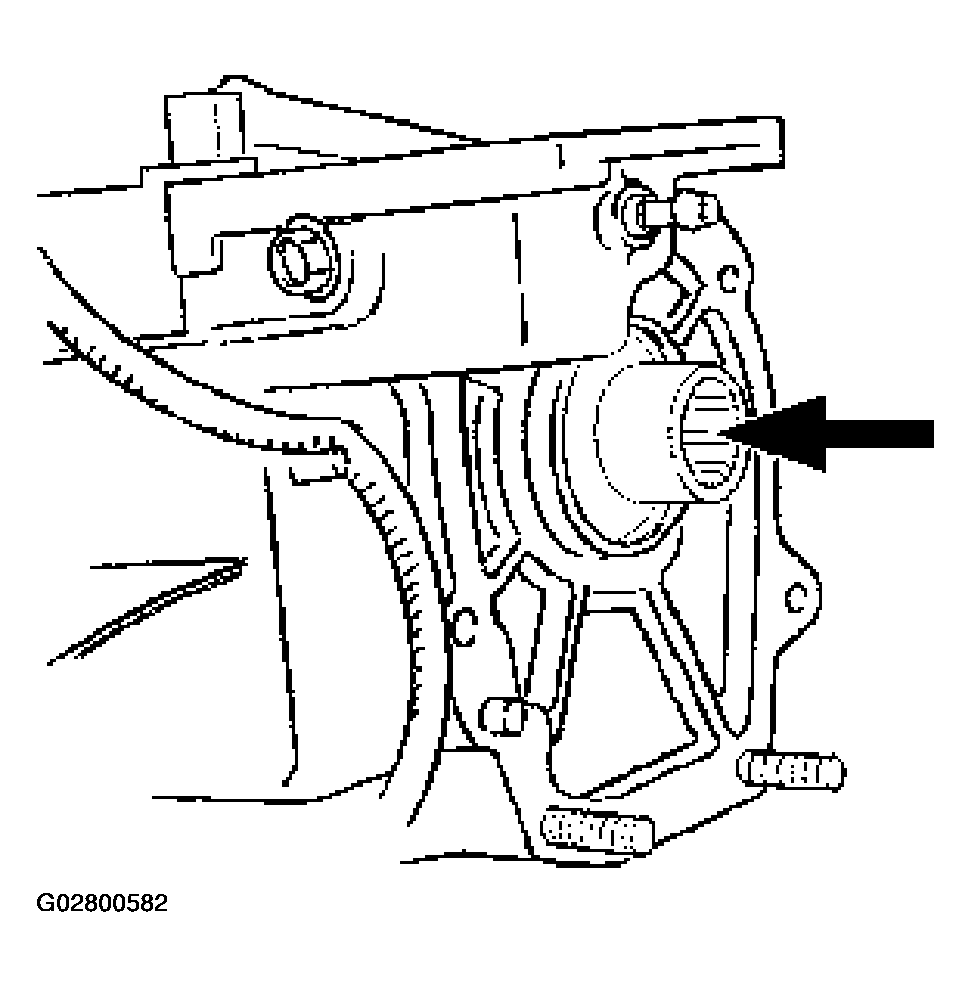

   Fig 1: Identifying Input Shaft Spline

   Courtesy of ISUZU MOTOR CO.
2. Mount the transfer case.
3. Tighten the transfer case bolts (see the figure below).

   Torque:  46 N.m (34 lb ft)

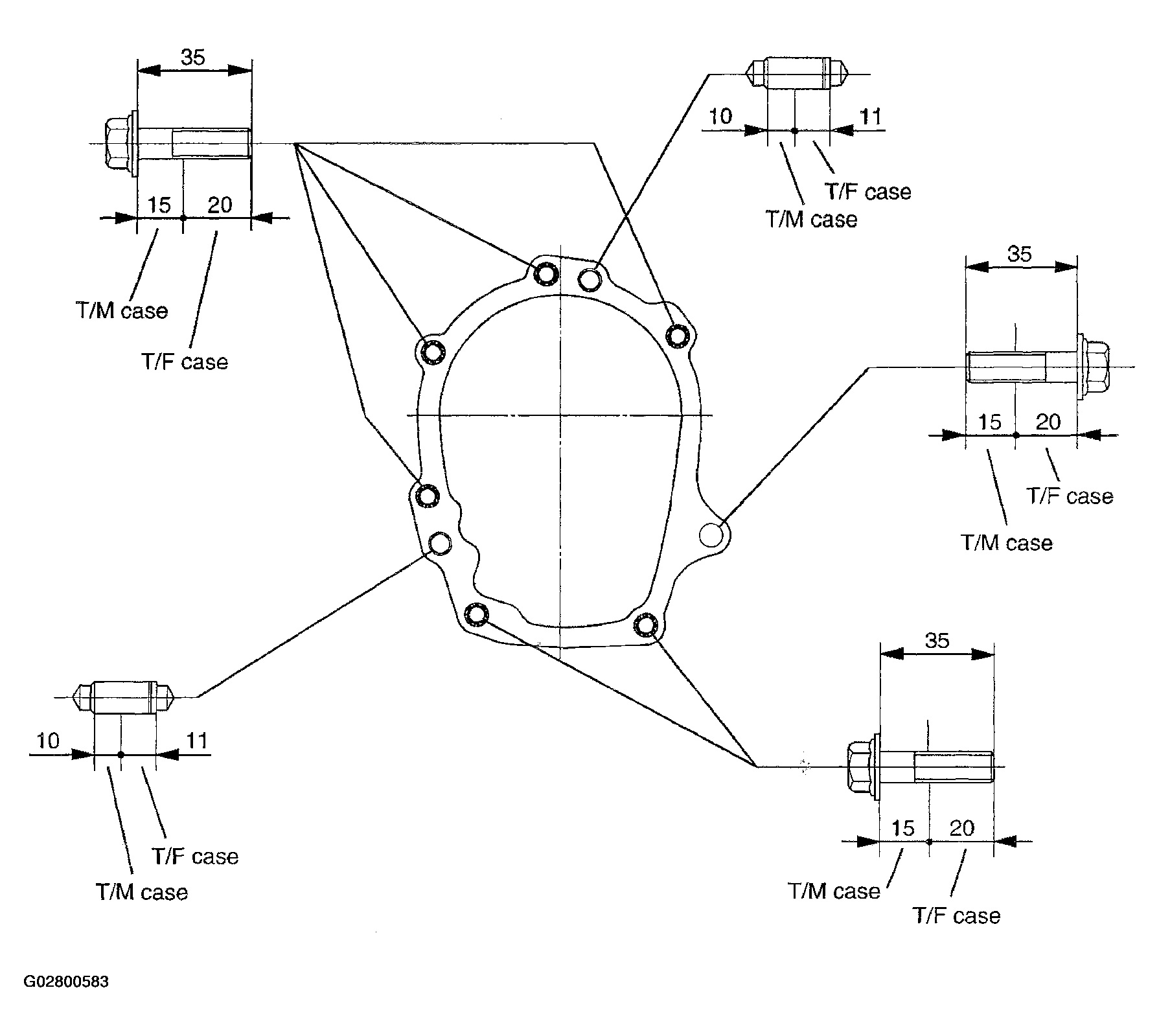

   Fig 2: Tightening Transfer Case Bolts

   Courtesy of ISUZU MOTOR CO.
4. Tighten propeller shaft bolt.

   Torque: 63 N.m (46 lb ft)
