Disassembled View

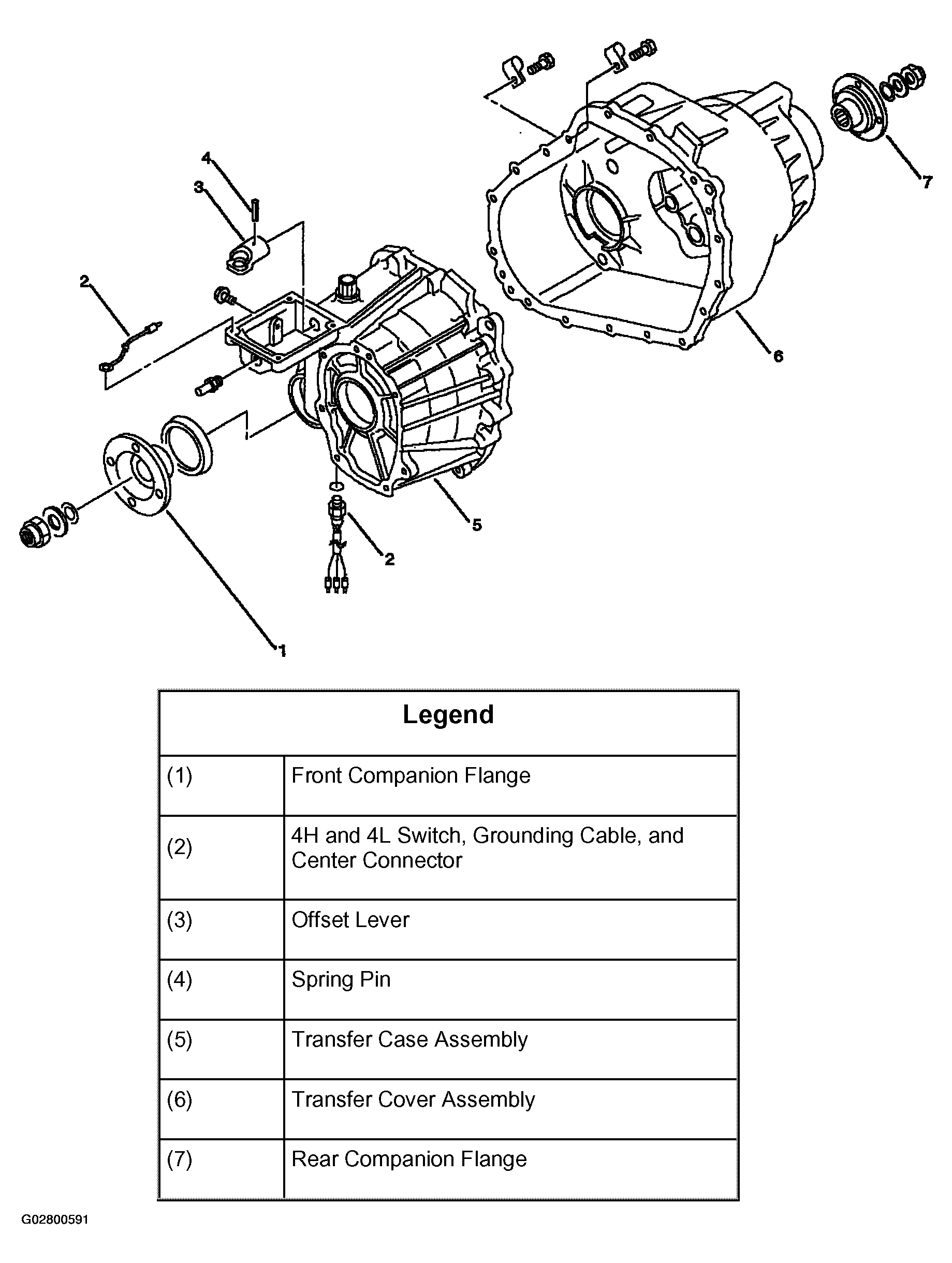

Fig 1: Exploded View Of Transfer Case
G02800591Courtesy of ISUZU MOTOR CO.

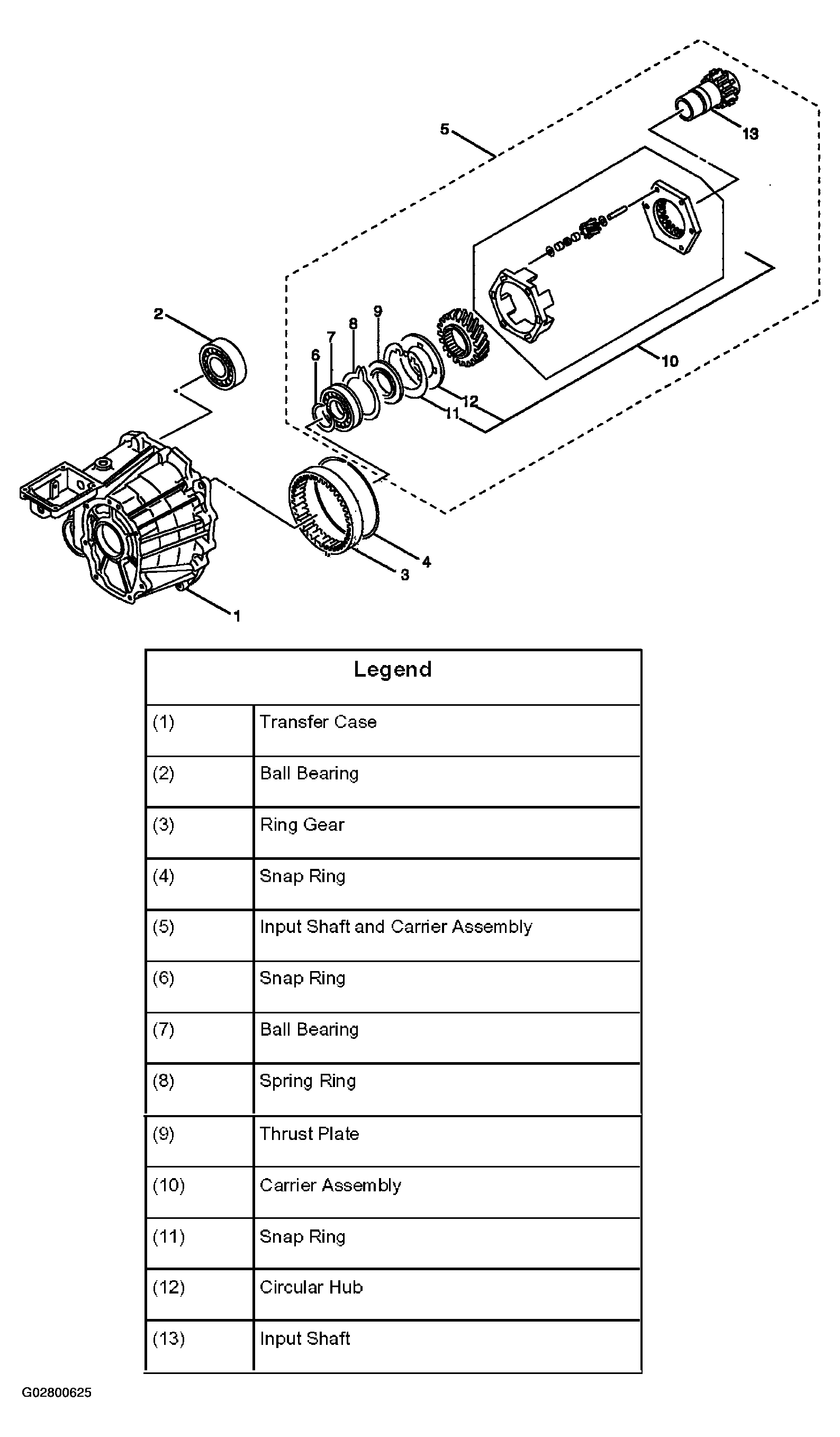

Fig 1: Exploded View Of Transfer Case
G02800625Courtesy of ISUZU MOTOR CO.

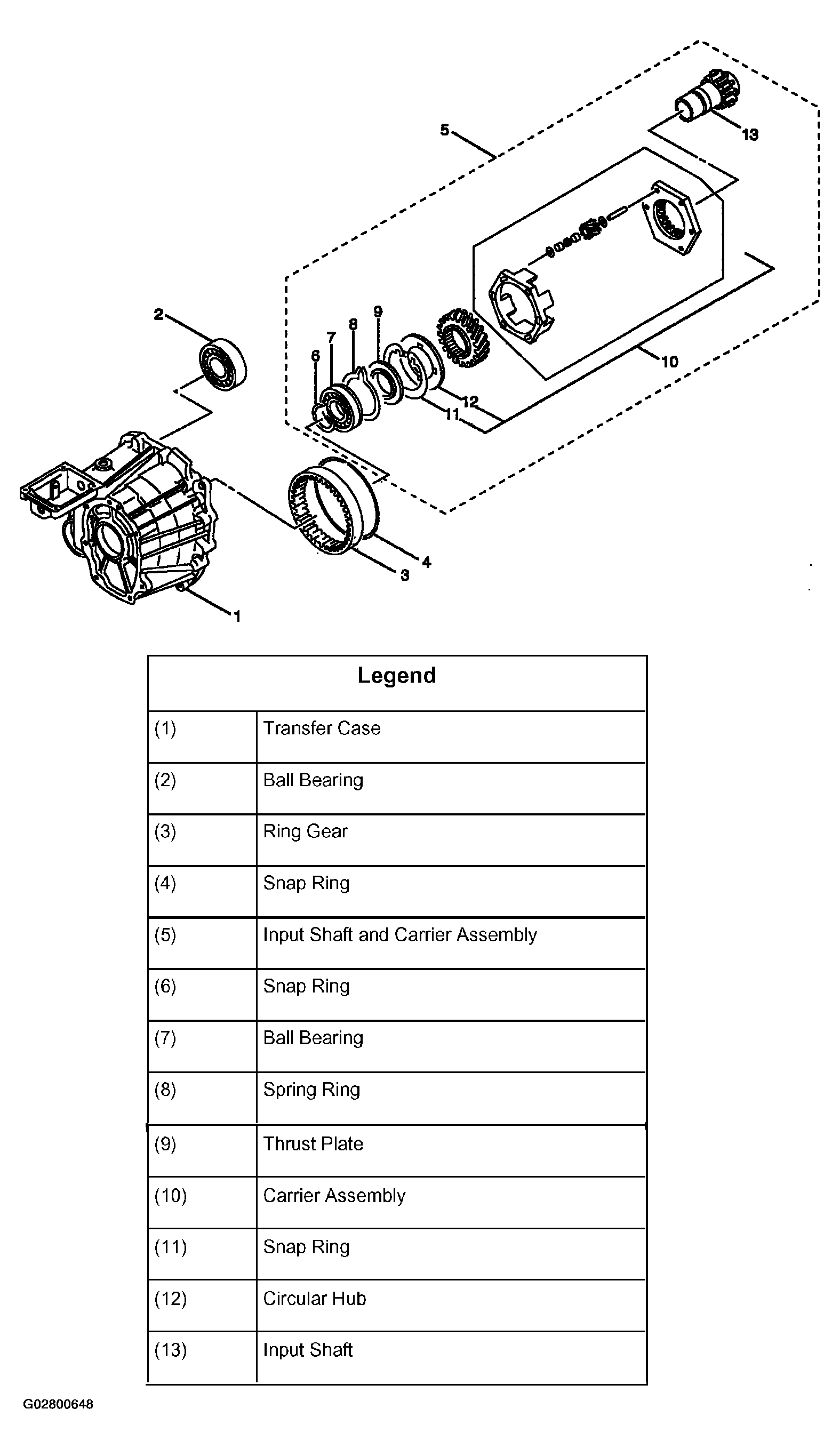

Fig 1: Exploded View Of Transfer Case
G02800648Courtesy of ISUZU MOTOR CO.
