Chart C-1-2 FR Sensor Output Inspection Procedure
Chart C-1-2 FR Sensor Output Inspection Procedure

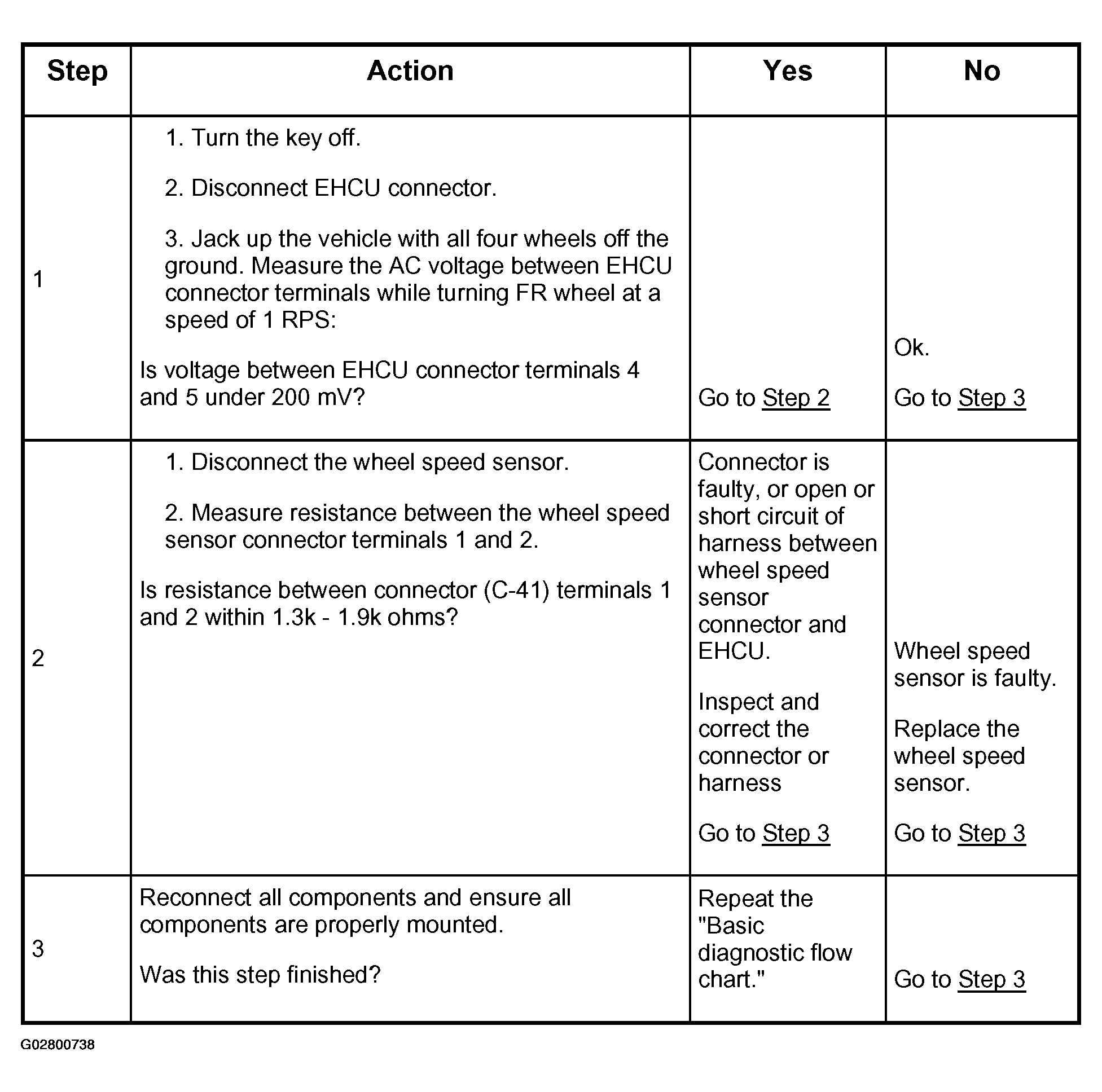

Fig 1: FR Sensor Output Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
