Lighting System - Connector End Views
›
Lighting System Connector End Views
›
Turn Signal/Multi-Function Switch C1
Turn Signal/Multi-Function Switch C1

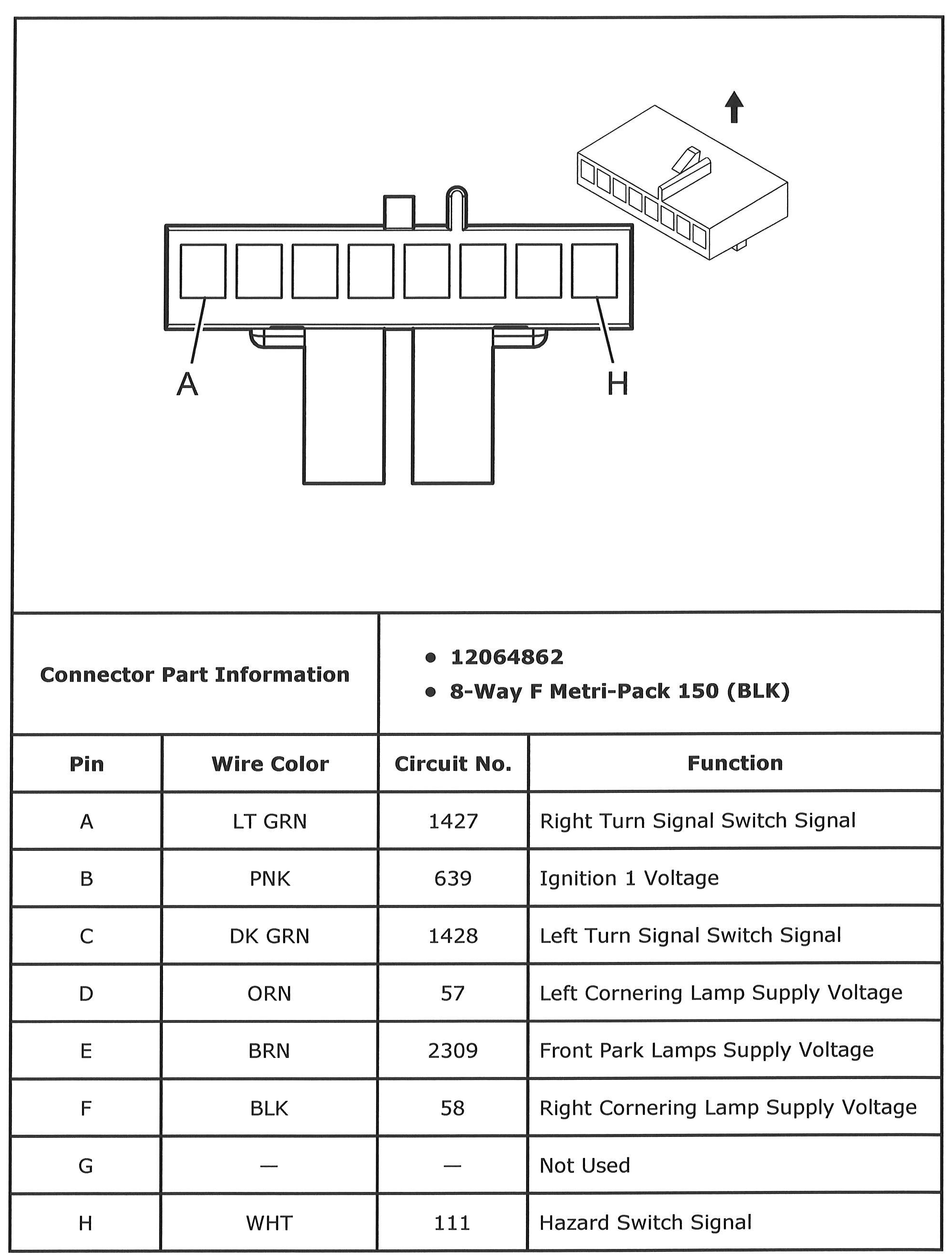

Fig 1: Turn Signal/Multi-Function Switch C1 Connector End View
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
