Lighting System - Connector End Views
›
Lighting System Connector End Views
›
Turn Signal/Hazard Flasher Module
Turn Signal/Hazard Flasher Module

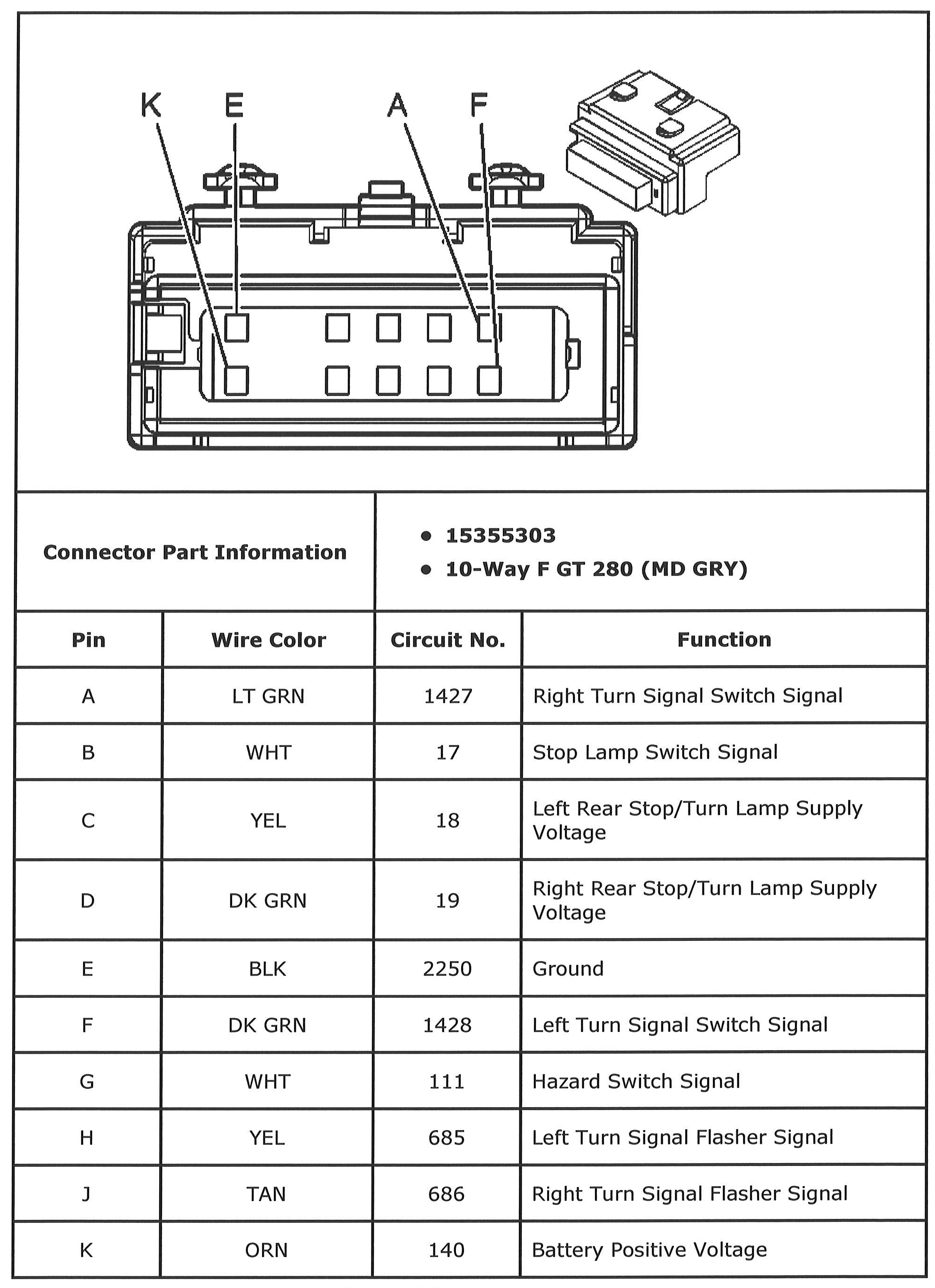

Fig 1: Turn Signal/Hazard Flasher Module Connector End View
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
