Frame Rail, Left Side

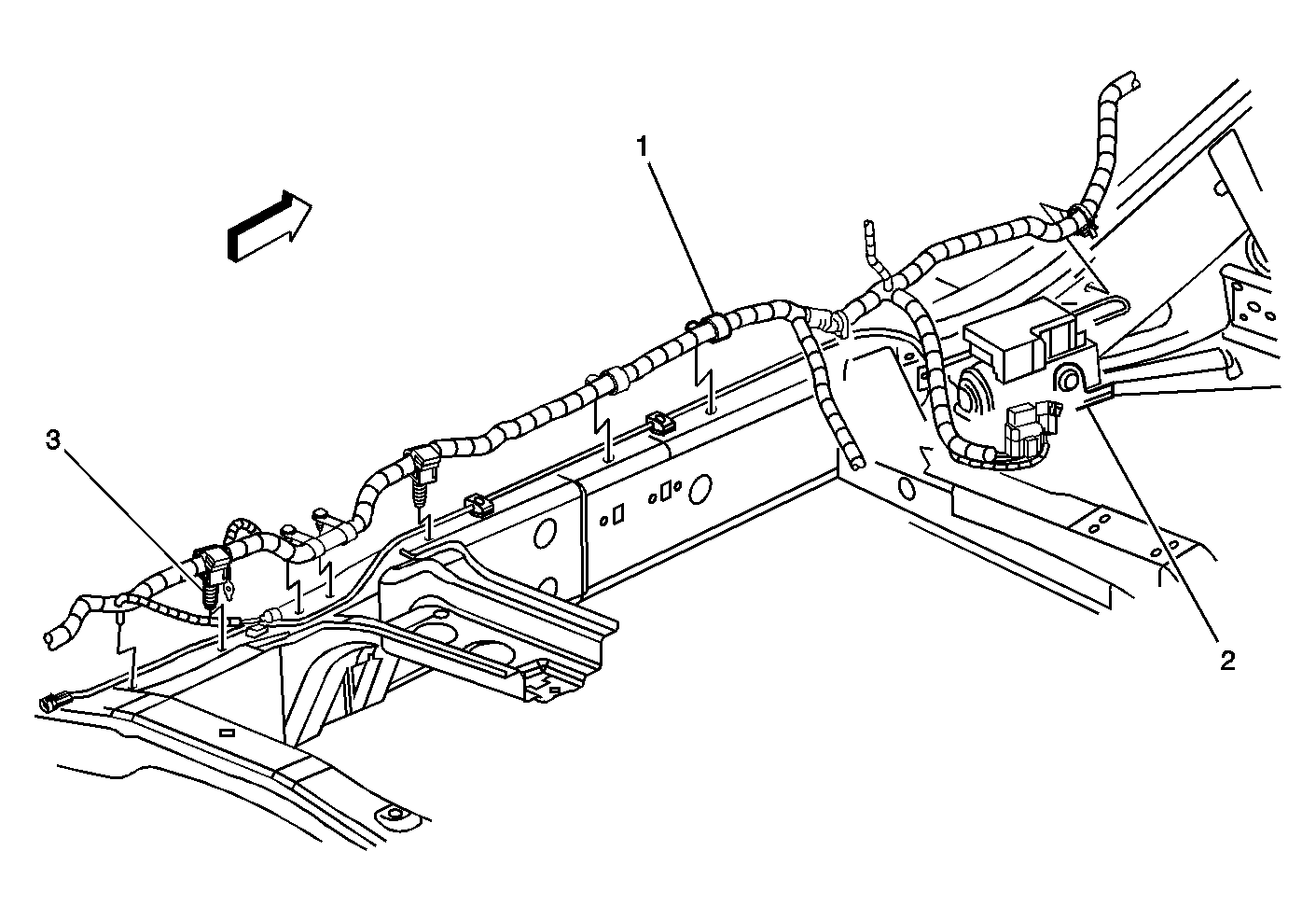

Fig 1: Frame Rail, Left Side Component View

GM748838

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis Harness
2	Electronic Brake Control Module (EBCM)
3	G304
