Brake System - Connector End Views
›
Brake System - Connector End Views
›
Antilock Brake System Connector End Views
›
Traction Control Switch
Traction Control Switch

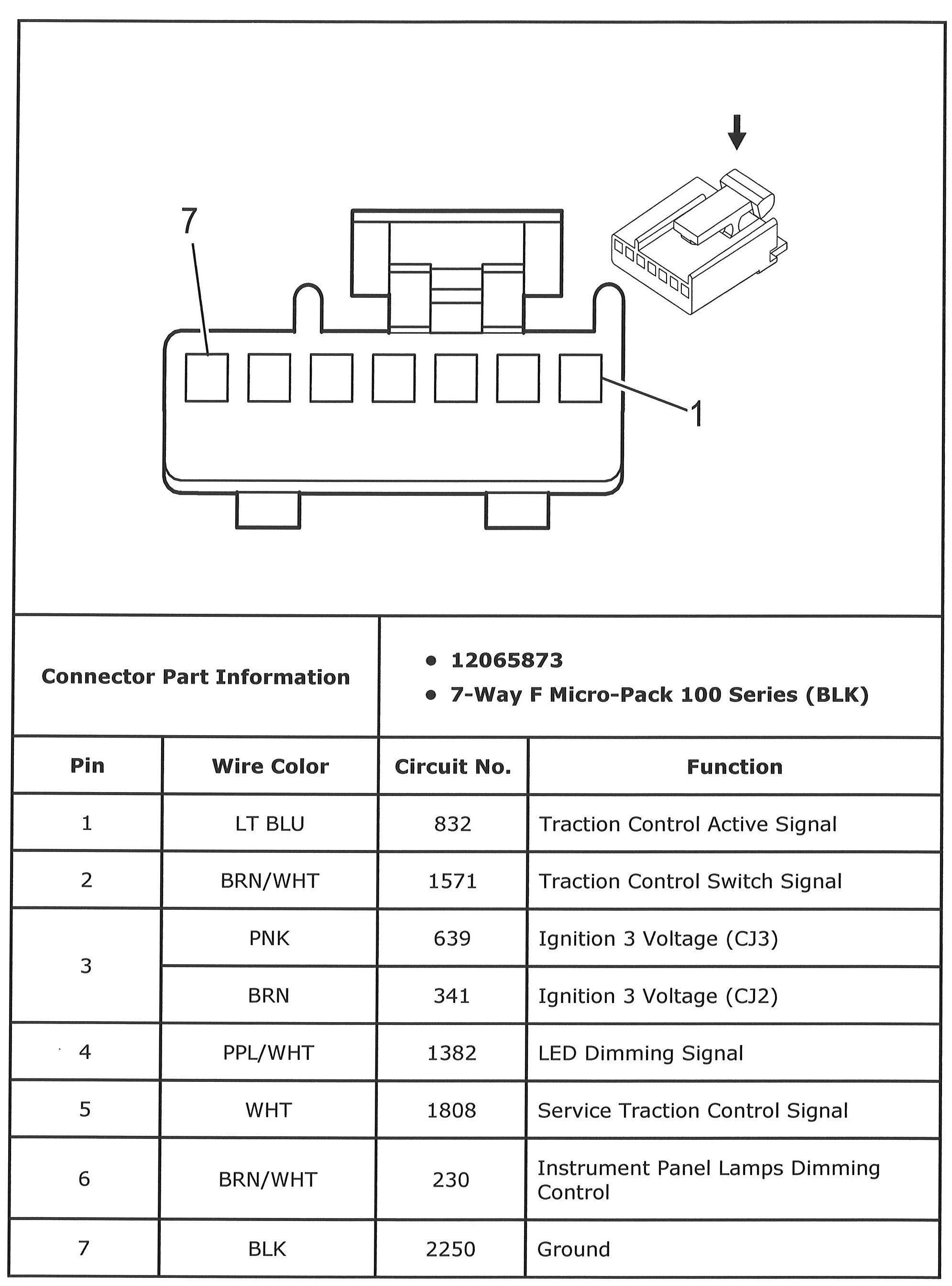

Fig 1: Traction Control Switch Connector End View
Courtesy of GENERAL MOTORS COMPANY
