Lighting System Connector End Views
›
Turn Signal/Multi-Function Switch C2
Turn Signal/Multi-Function Switch C2

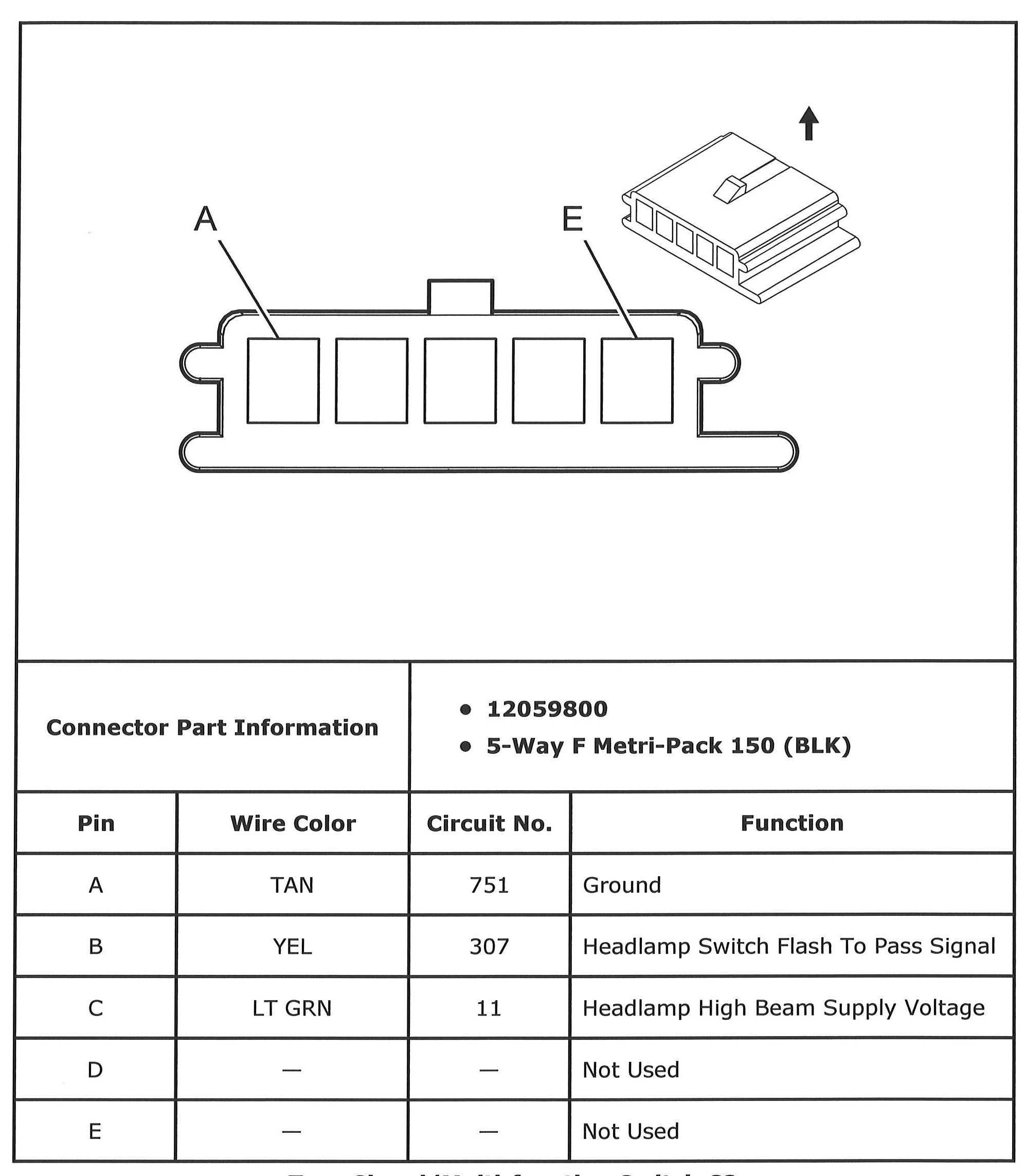

Fig 1: Turn Signal/Multi-Function Switch C2 Connector End View
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
