Shift Lock Control System - Connector End Views
›
Shift Lock Control System - Connector End Views
›
Automatic Transmission Shift Lock Actuator
Automatic Transmission Shift Lock Actuator

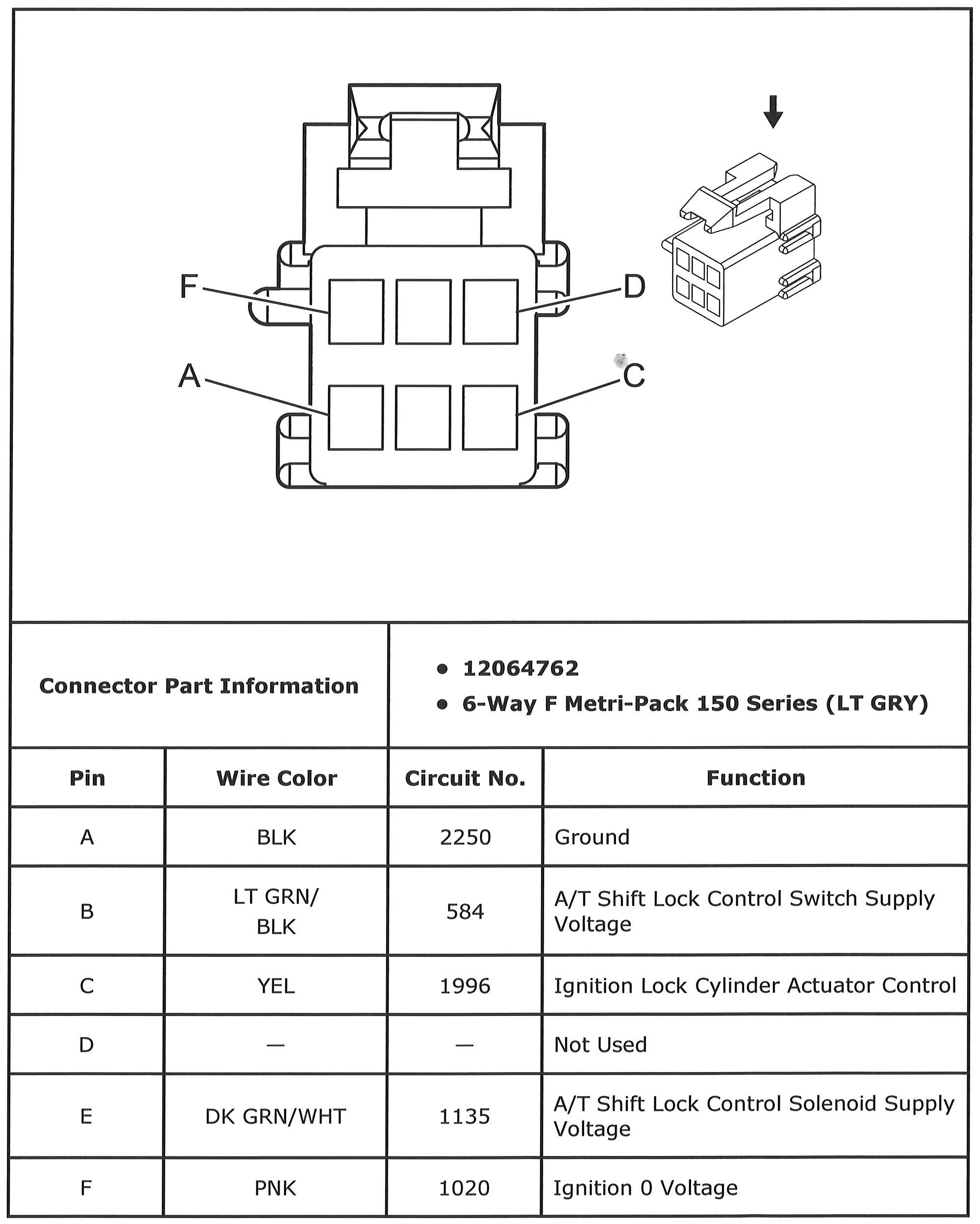

Fig 1: Automatic Transmission Shift Lock Actuator Connector End View
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
