Front Door Lock Assembly: Removal

1. Disconnect the battery ground cable.
2. Remove the pull box.
   • Remove the one fixing screw.

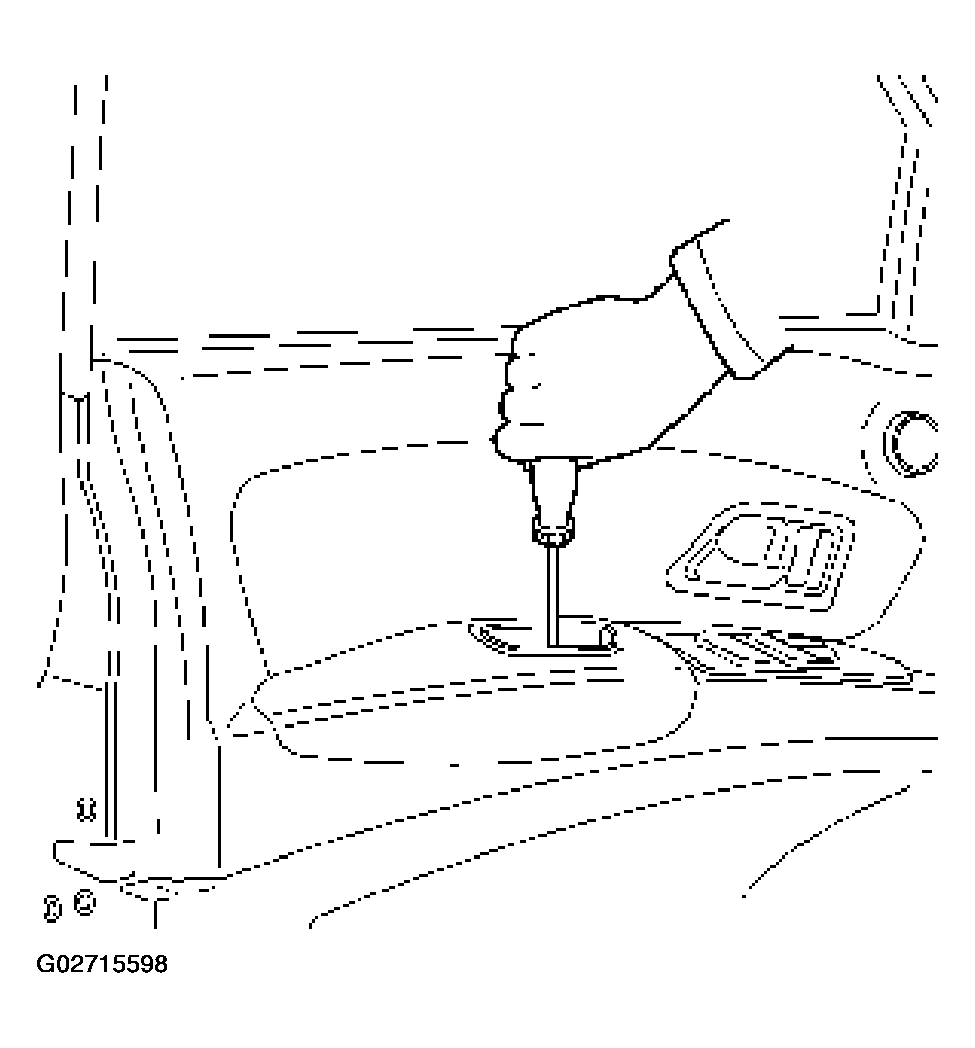

   Fig 1: Removing Pull Box

   Courtesy of ISUZU MOTOR CO.
3. Remove the power window switch (1).
   • Pry the power window switch and remove the connector.

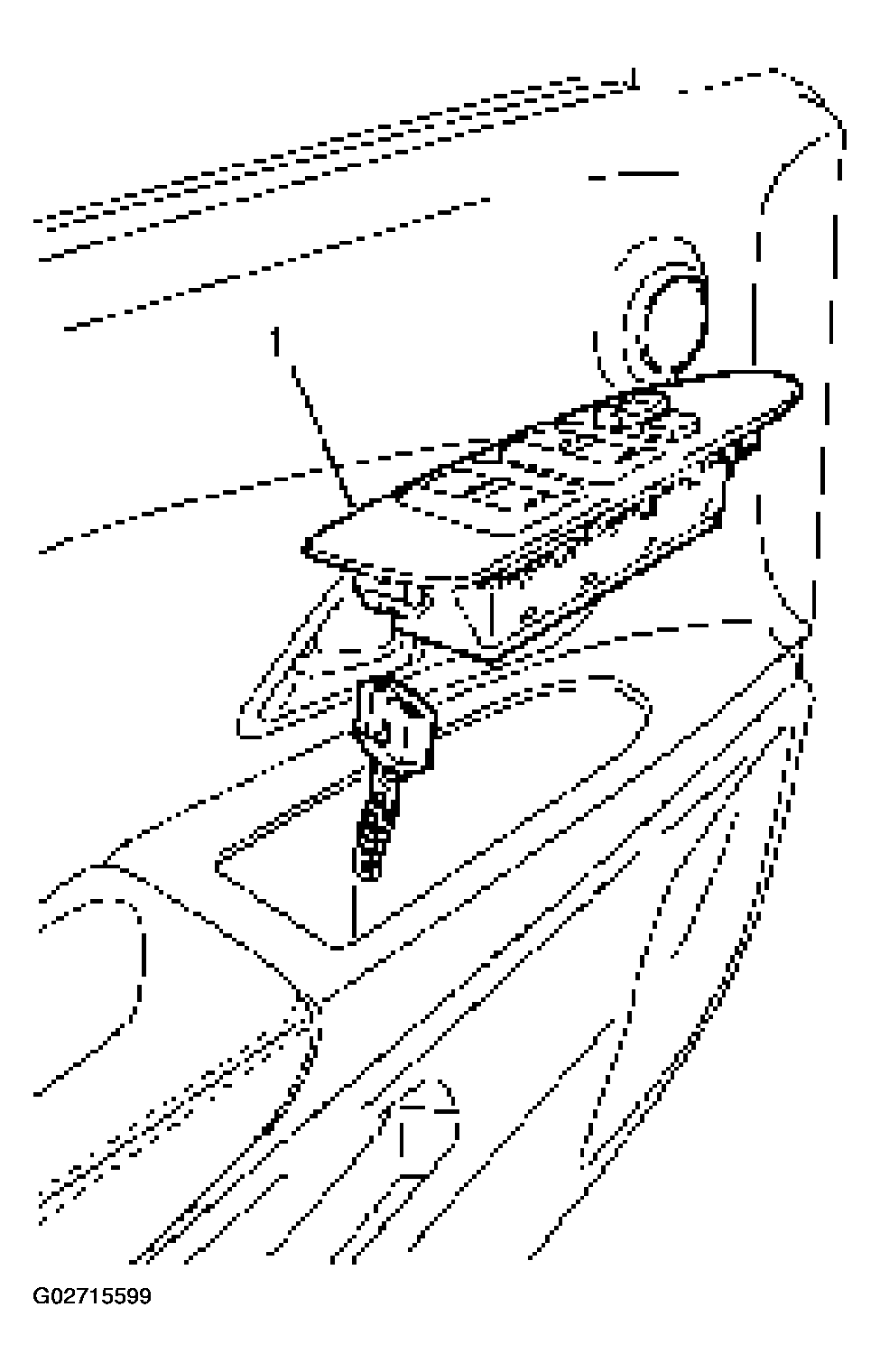

   Fig 2: Removing Power Window Switch

   Courtesy of ISUZU MOTOR CO.
4. Remove the inside handle.
   • Open the screw corer (1) and remove the screw.
   • Disconnect the cable.
   Fig 3: Removing Inside Handle

   Courtesy of ISUZU MOTOR CO.
5. Remove the door mirror cover.
6. Pull the door trim panel at the 8 clip positions (1).
   • Disconnect the courtesy light and tweeter harness connectors.

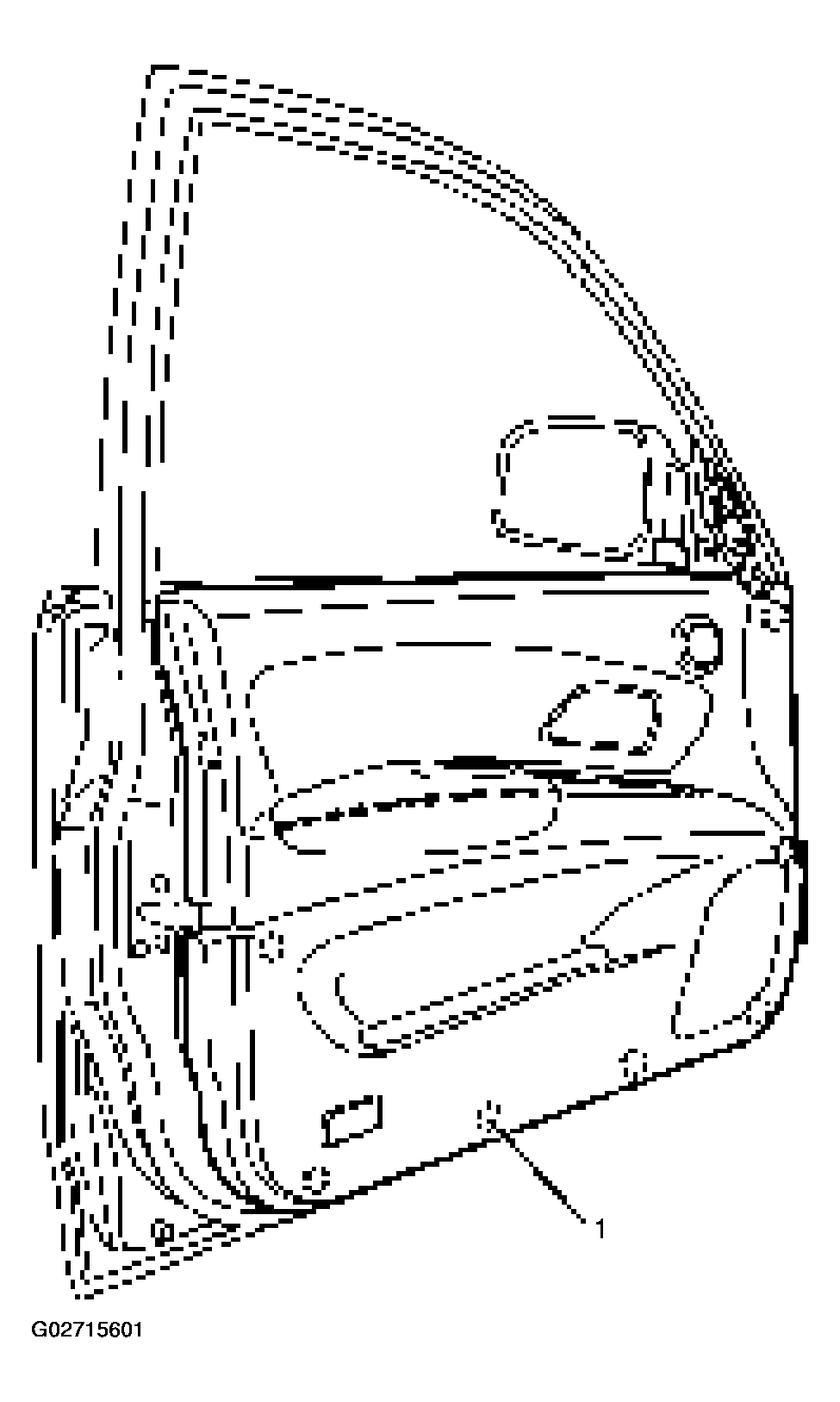

   Fig 4: Removing Door Trim Panel

   Courtesy of ISUZU MOTOR CO.
7. Remove the pull box bracket.
8. Remove the inside lock bracket.
   • Disconnect the cable.
9. Remove the waterproof sheet.
   • Taking notice of the door harness, peel the waterproof sheet off the door panel carefully.
10. Raise the glass up to the uppermost position.
11. Remove the door lock assembly.

• Disconnect the locking links and harness connector.
• Remove the 3 fixing TORX® screws and bolt.

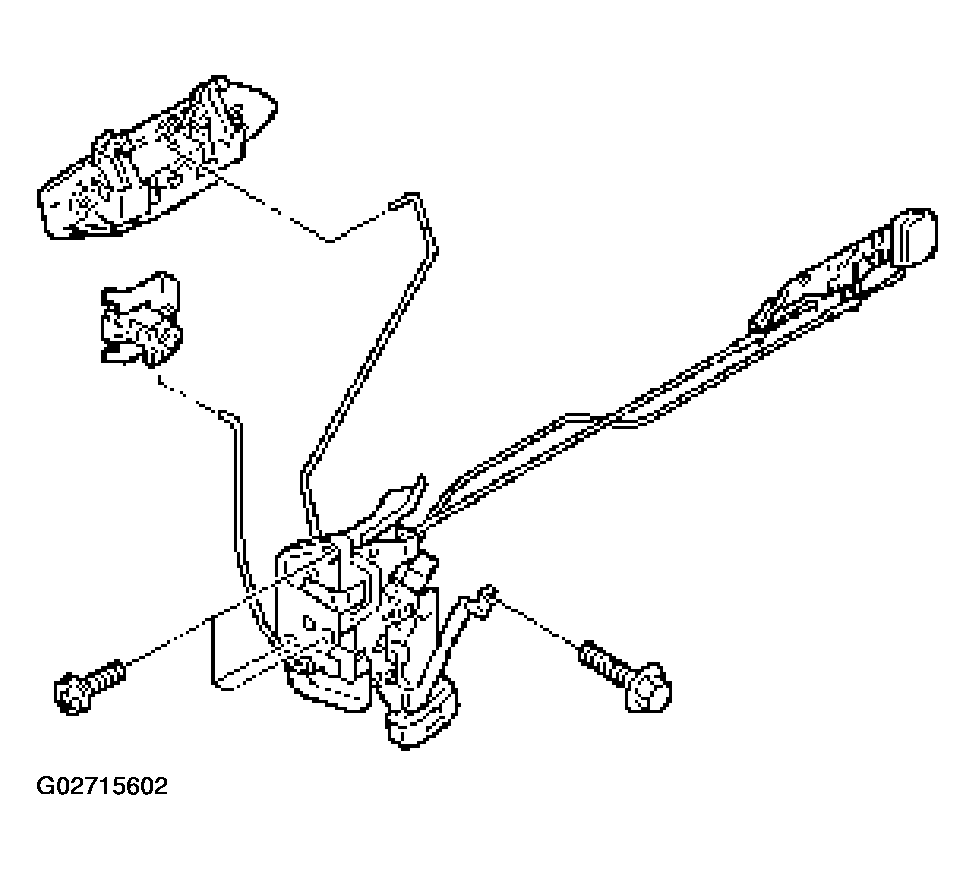

Fig 5: Removing Door Lock Assembly

Courtesy of ISUZU MOTOR CO.
