Parts Location
Parts Location

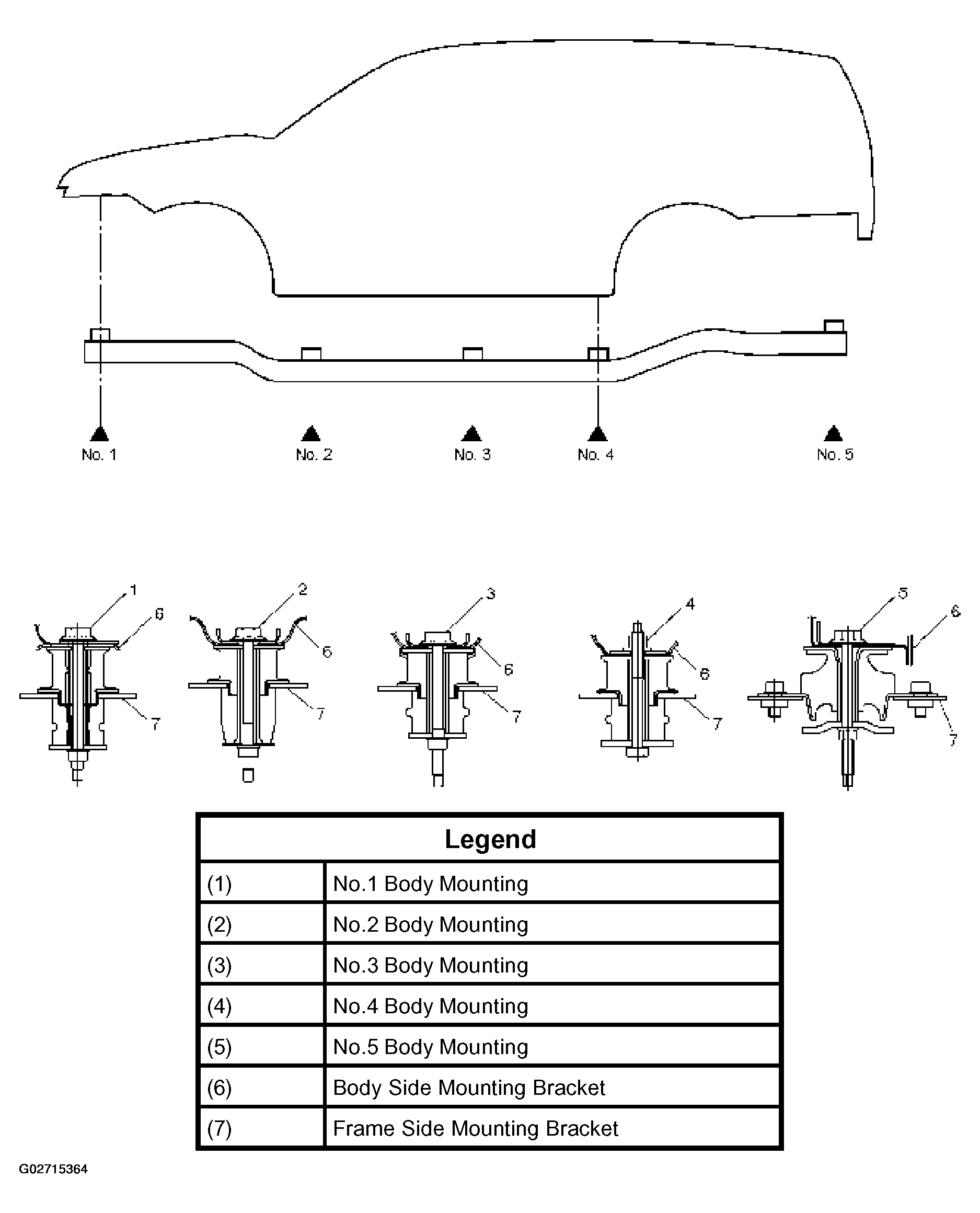

Fig 1: Identifying Location Of Body Mounting Bolts
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
