Component Locations

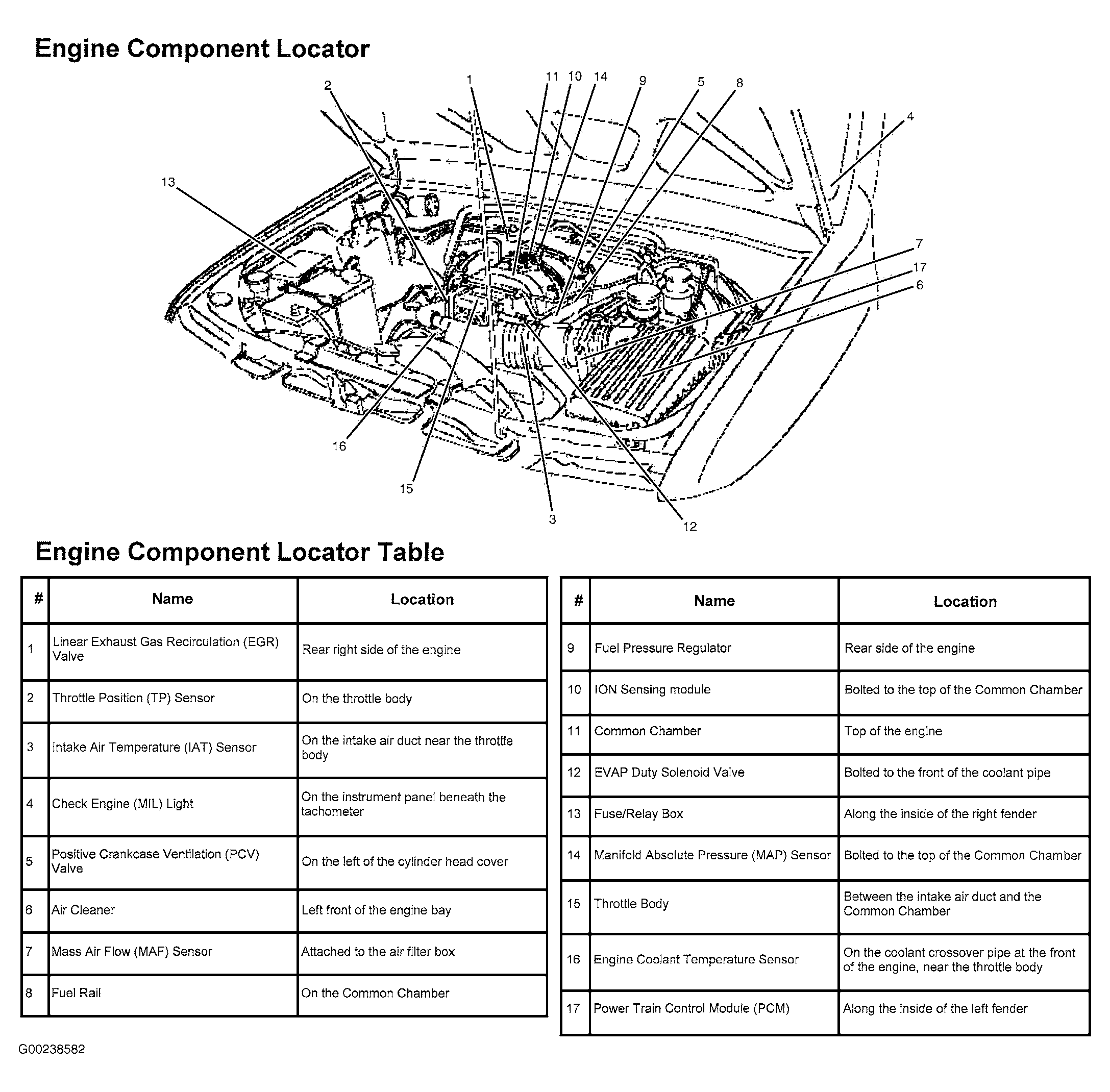

Fig 1: Locating Engine Performance Components (Engine Compartment)

Courtesy of ISUZU MOTOR CO.

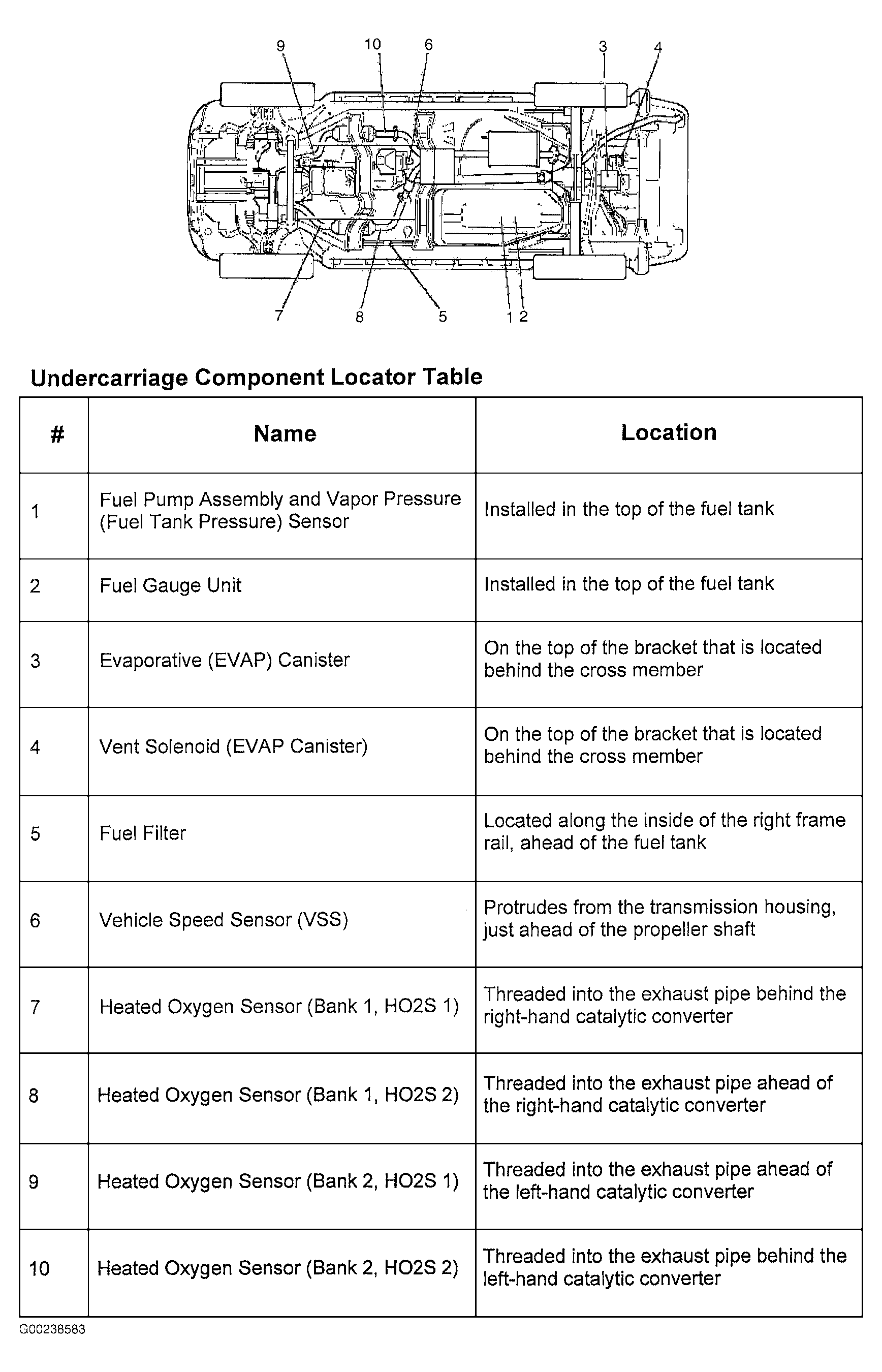

Fig 2: Locating Engine Performance Components (Undercarriage)

Courtesy of ISUZU MOTOR CO.

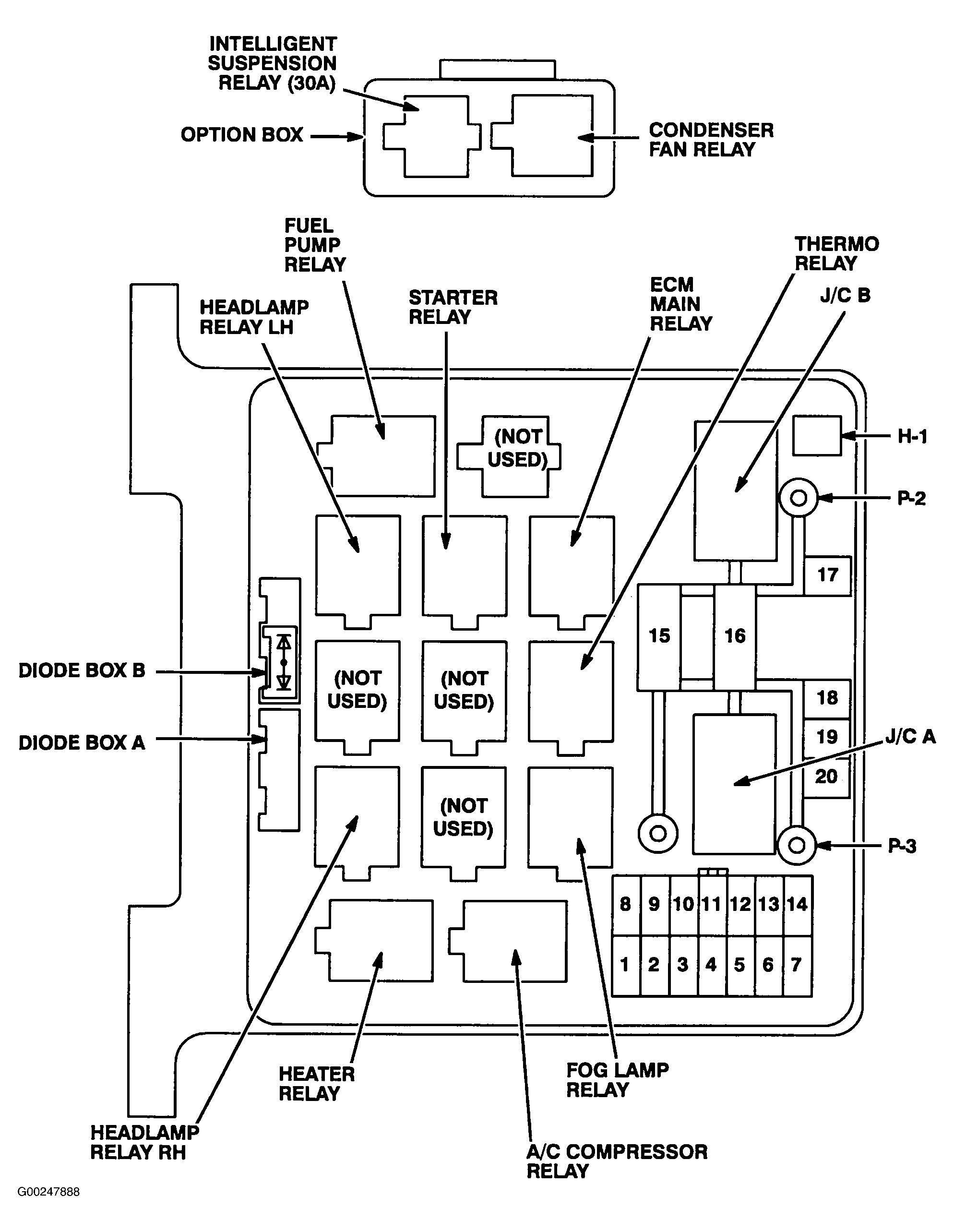

Fig 3: Locating Fuses & Relays On Engine Block Fuse/Relay Box (1 Of 2)

Courtesy of ISUZU MOTOR CO.

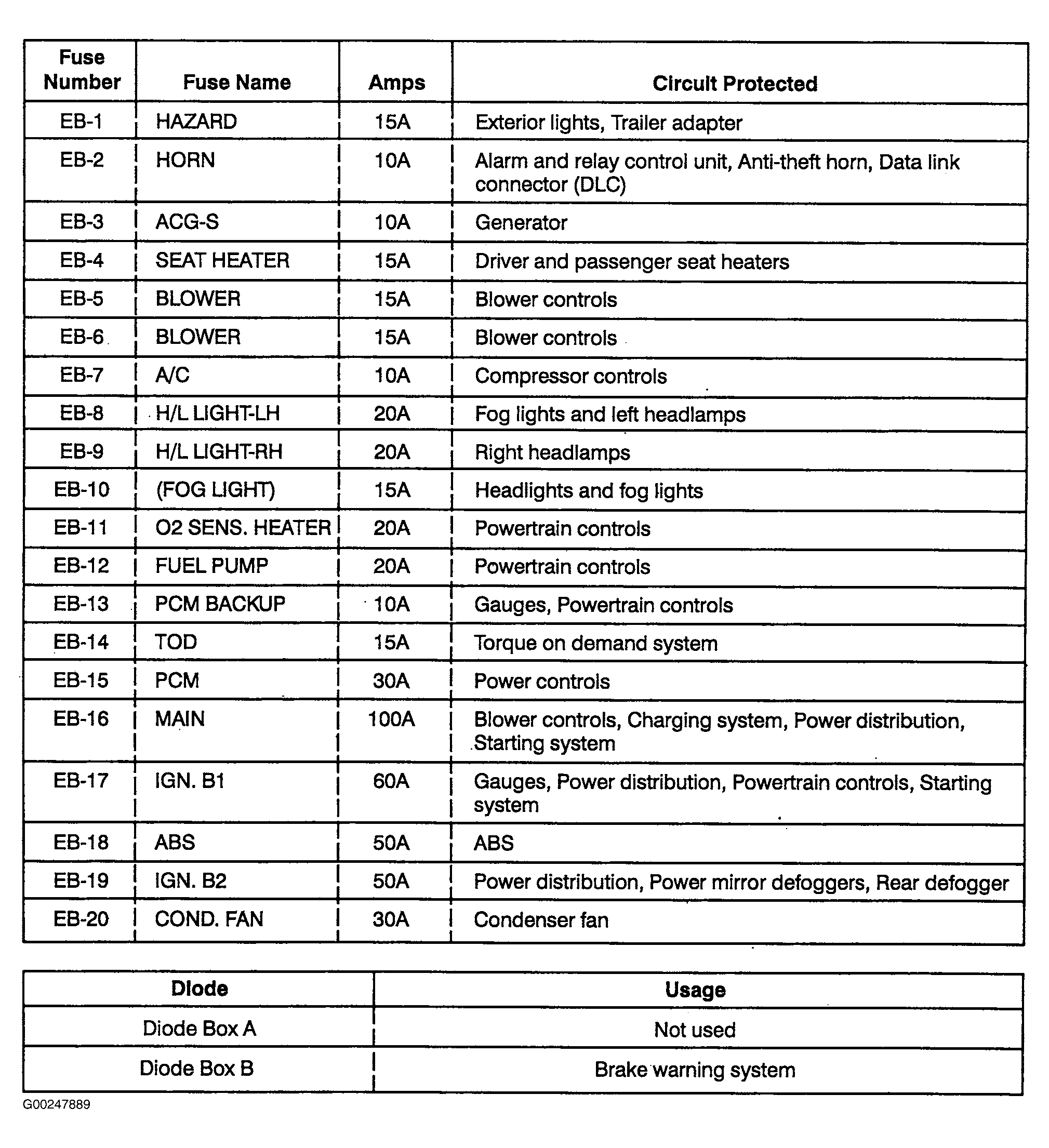

Fig 4: Locating Fuses & Relays On Engine Block Fuse/Relay Box (2 Of 2)

Courtesy of ISUZU MOTOR CO.
