Diagnostic Procedure

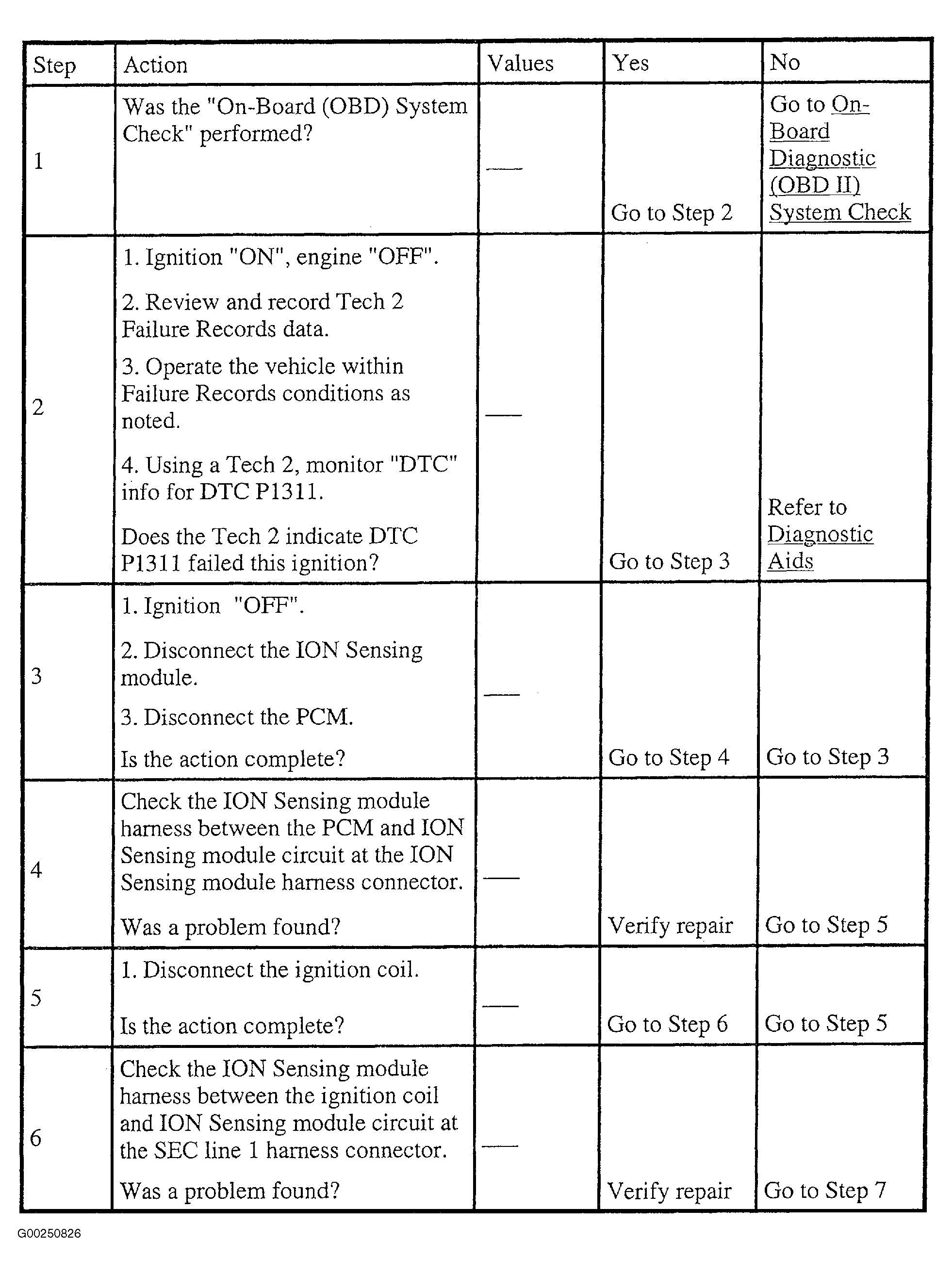

Fig 1: DTC P1311: ION Sensing Module - SEC 1 Line Circuit Fault (Steps 1-6)
G00250826Courtesy of ISUZU MOTOR CO.

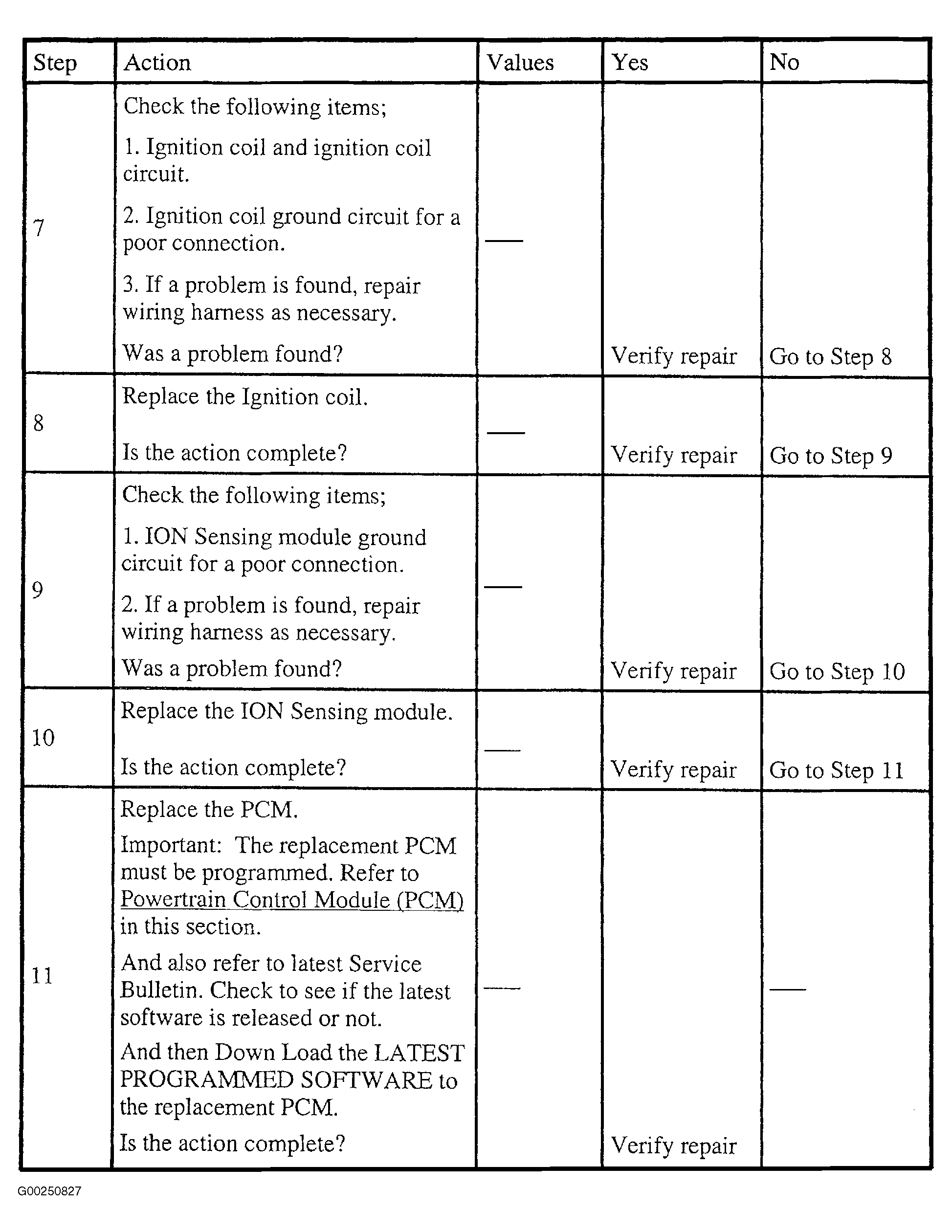

Fig 2: DTC P1311: ION Sensing Module - SEC 1 Line Circuit Fault (Steps 7-11)
G00250827Courtesy of ISUZU MOTOR CO.
