Diagnostic Procedure

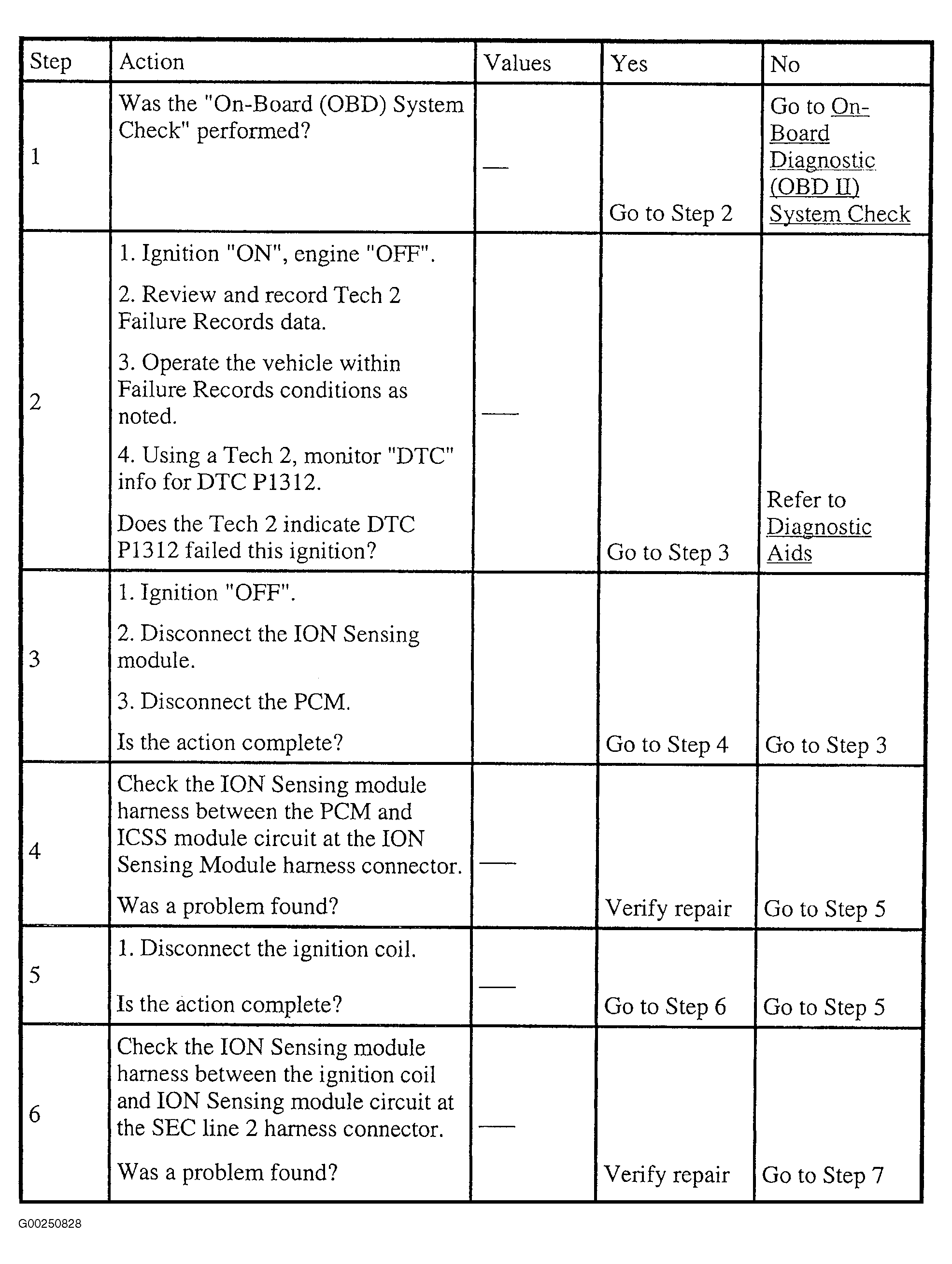

Fig 1: DTC P1312: ION Sensing Module - SEC 2 Line Circuit Fault (Steps 1-6)
G00250828Courtesy of ISUZU MOTOR CO.

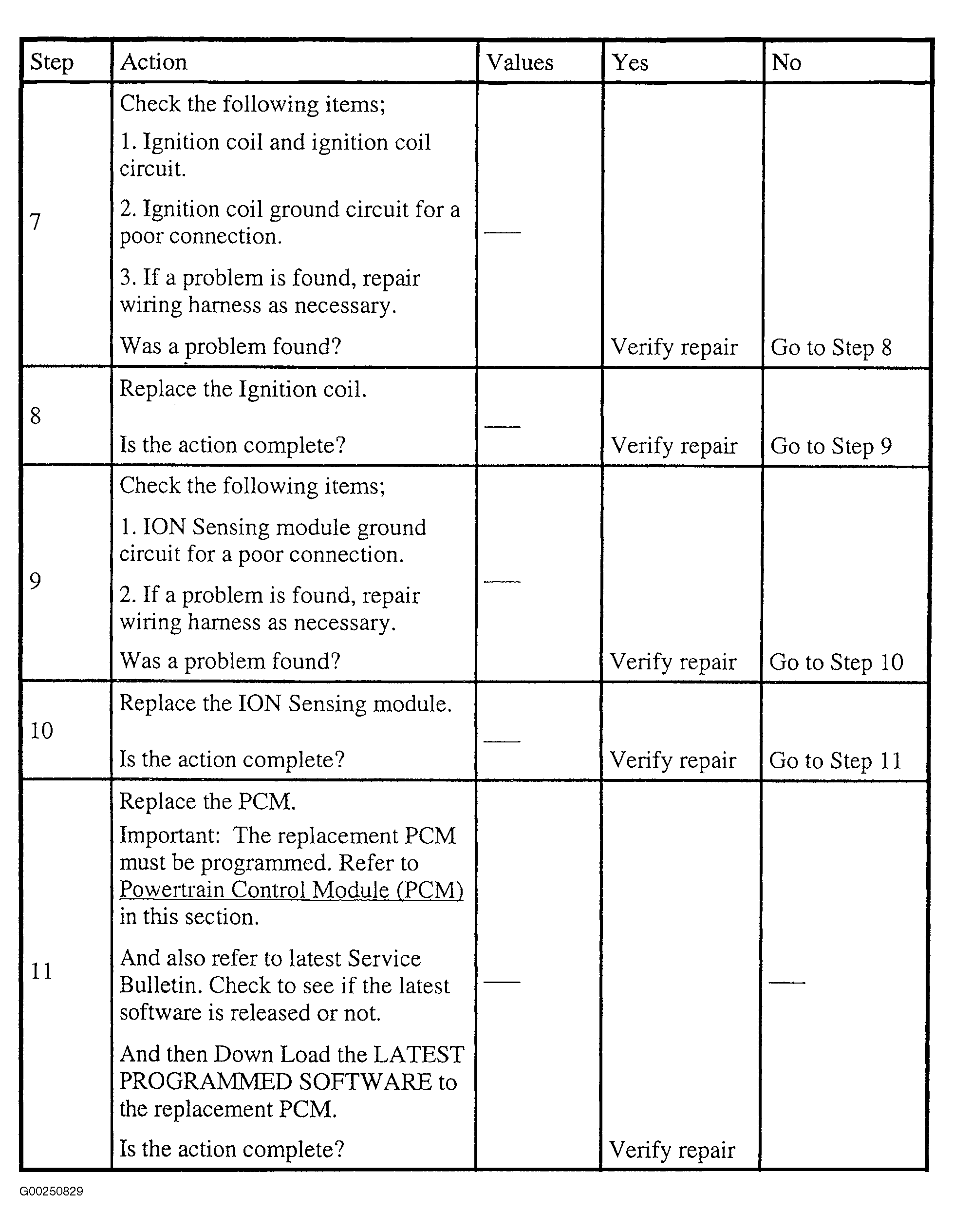

Fig 2: DTC P1312: ION Sensing Module - SEC 2 Line Circuit Fault (Steps 7-11)
G00250829Courtesy of ISUZU MOTOR CO.
