Self-Diagnostic System
›
On-Board Diagnostic II System Check
›
Diagnostic Procedures
Diagnostic Procedures

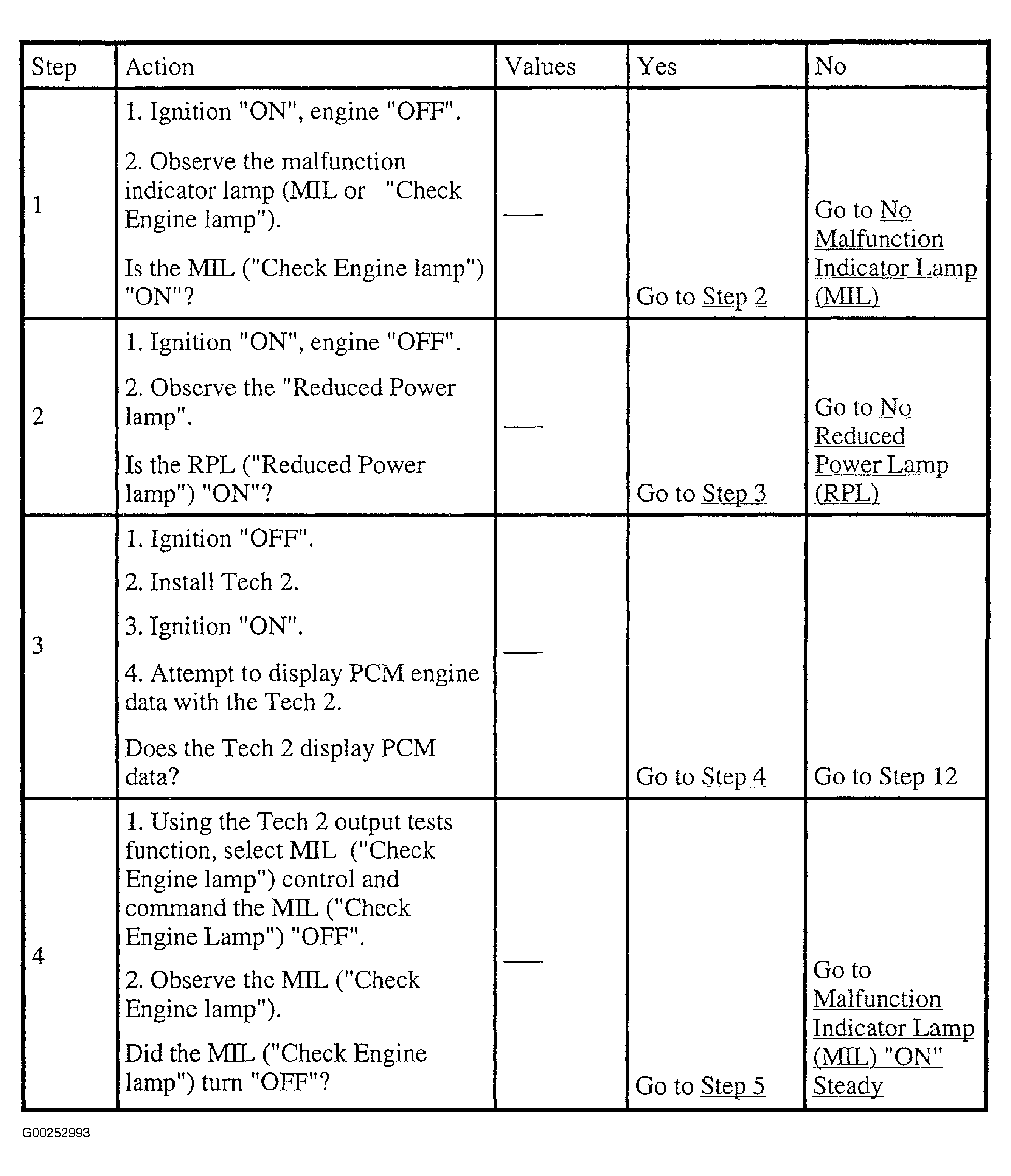

Fig 1: On Board Diagnostic System Check (Steps 1-4)
Courtesy of ISUZU MOTOR CO.

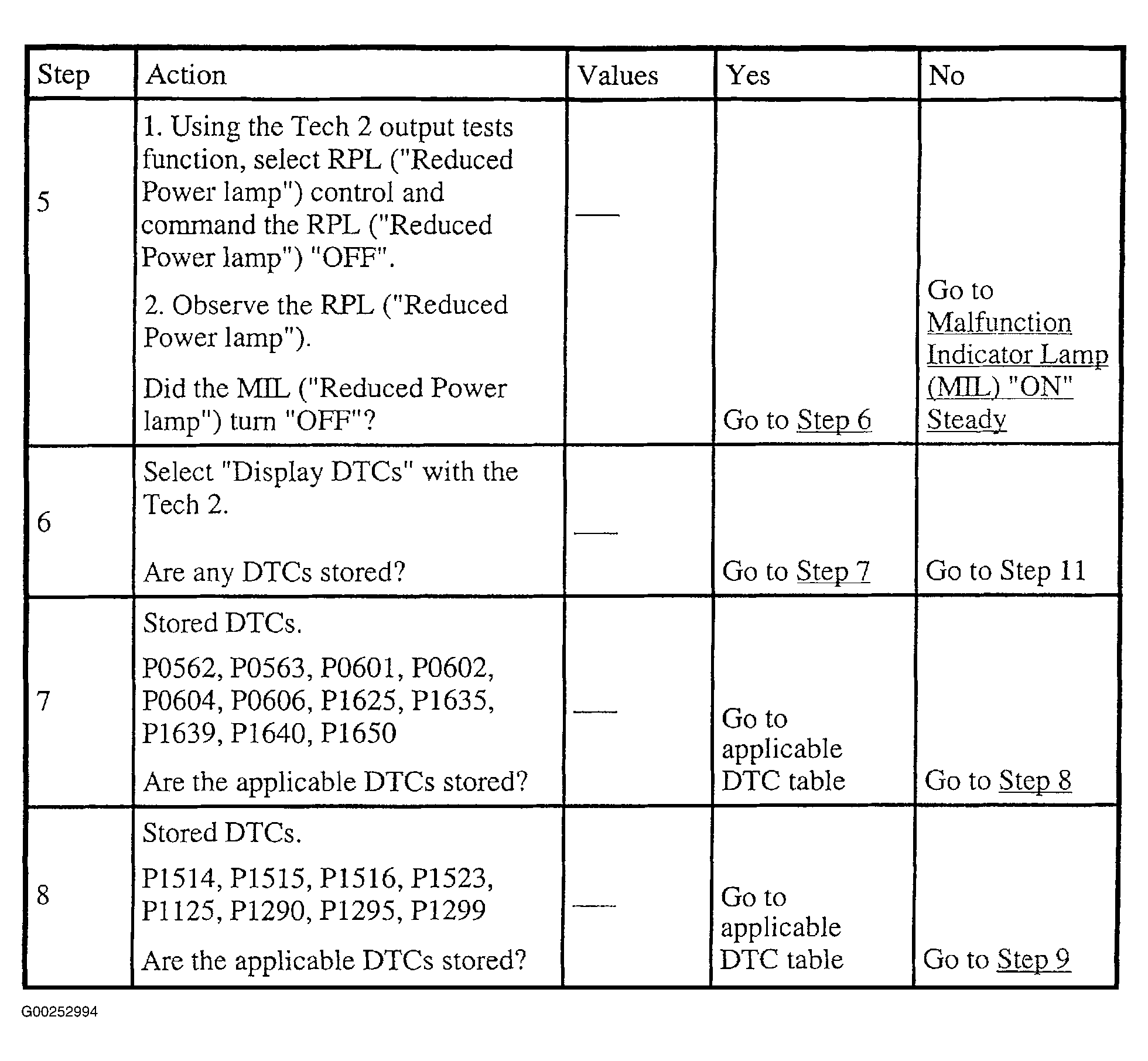

Fig 2: On Board Diagnostic System Check (Steps 5-8)
Courtesy of ISUZU MOTOR CO.

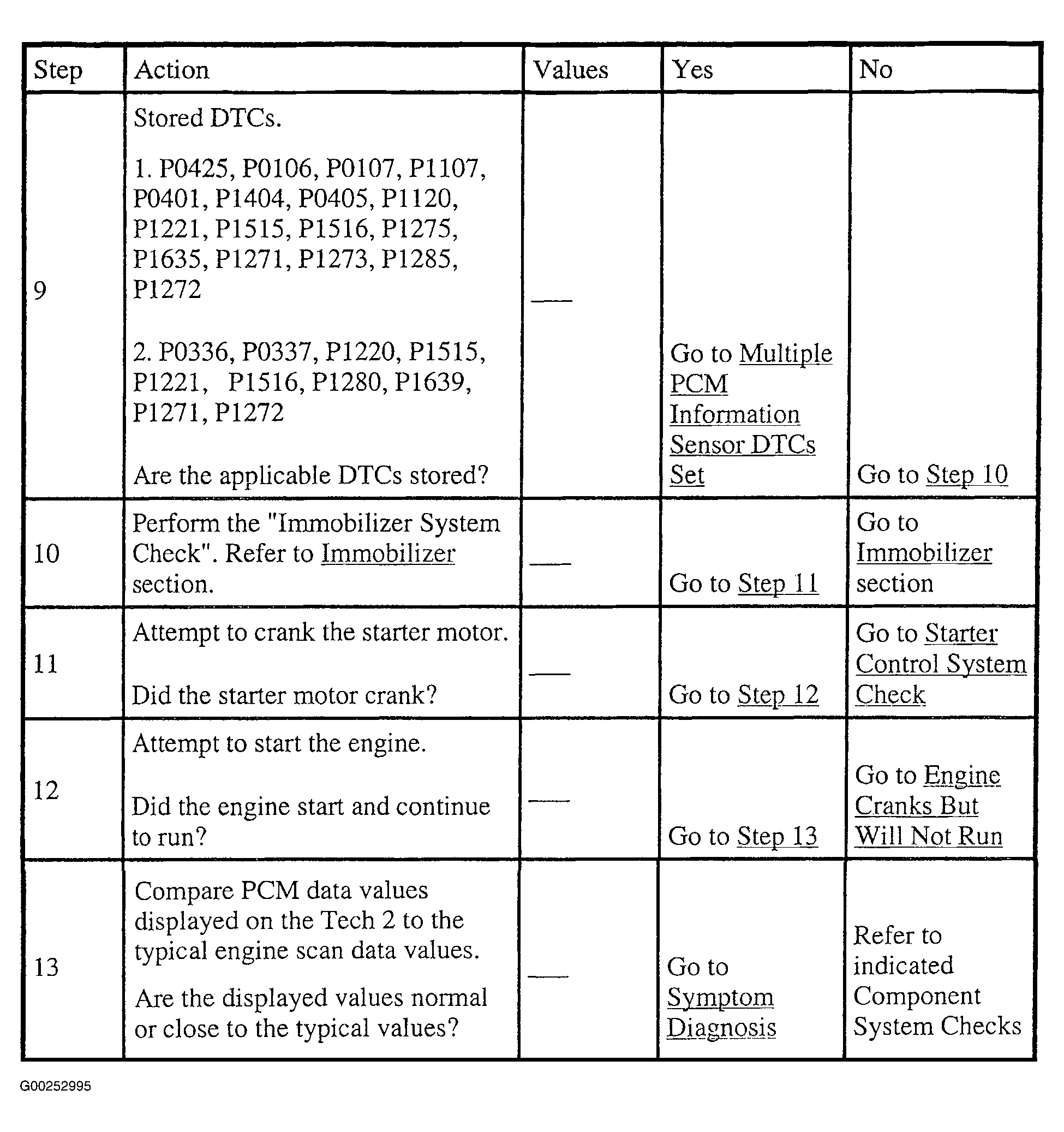

Fig 3: On Board Diagnostic System Check (Steps 9-13)
Courtesy of ISUZU MOTOR CO.

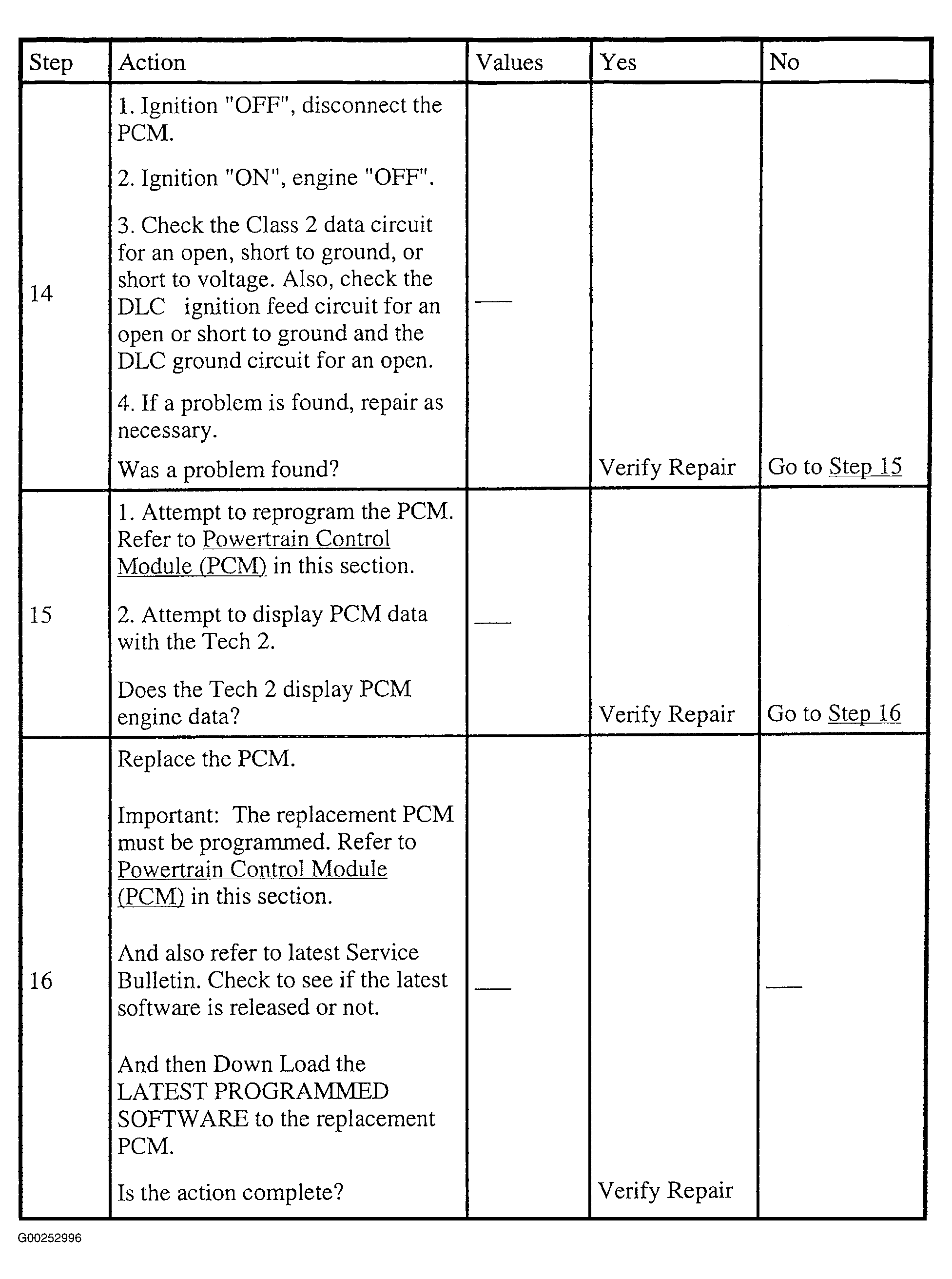

Fig 4: On Board Diagnostic System Check (Steps 14-16)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
