General Description
›
Control System Diagram
Control System Diagram

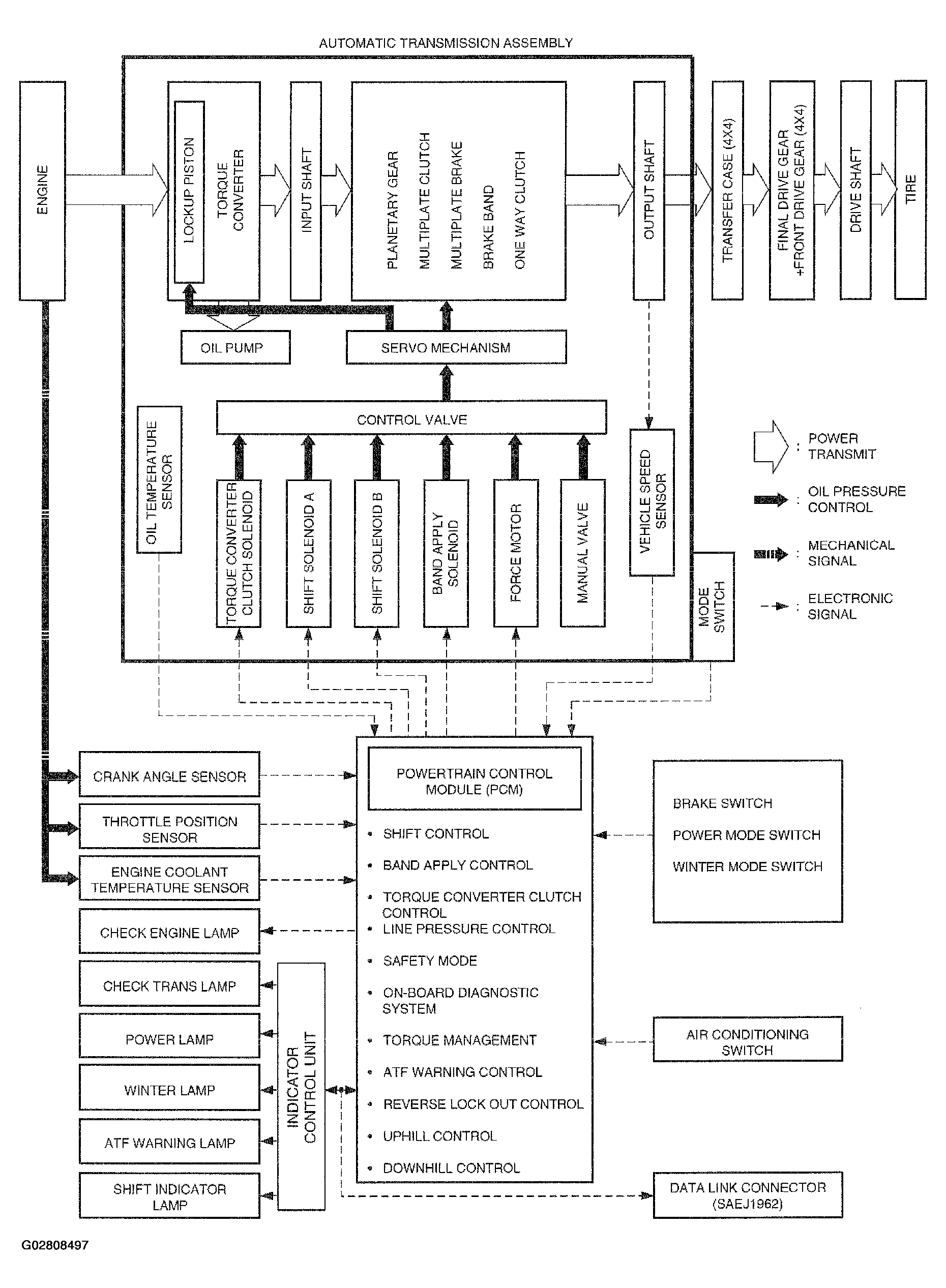

Fig 1: Control System Diagram
Courtesy of ISUZU MOTOR CO.
