Transmission Control System
›
General Description
›
Powertrain Control Module (PCM)
Powertrain Control Module (PCM)

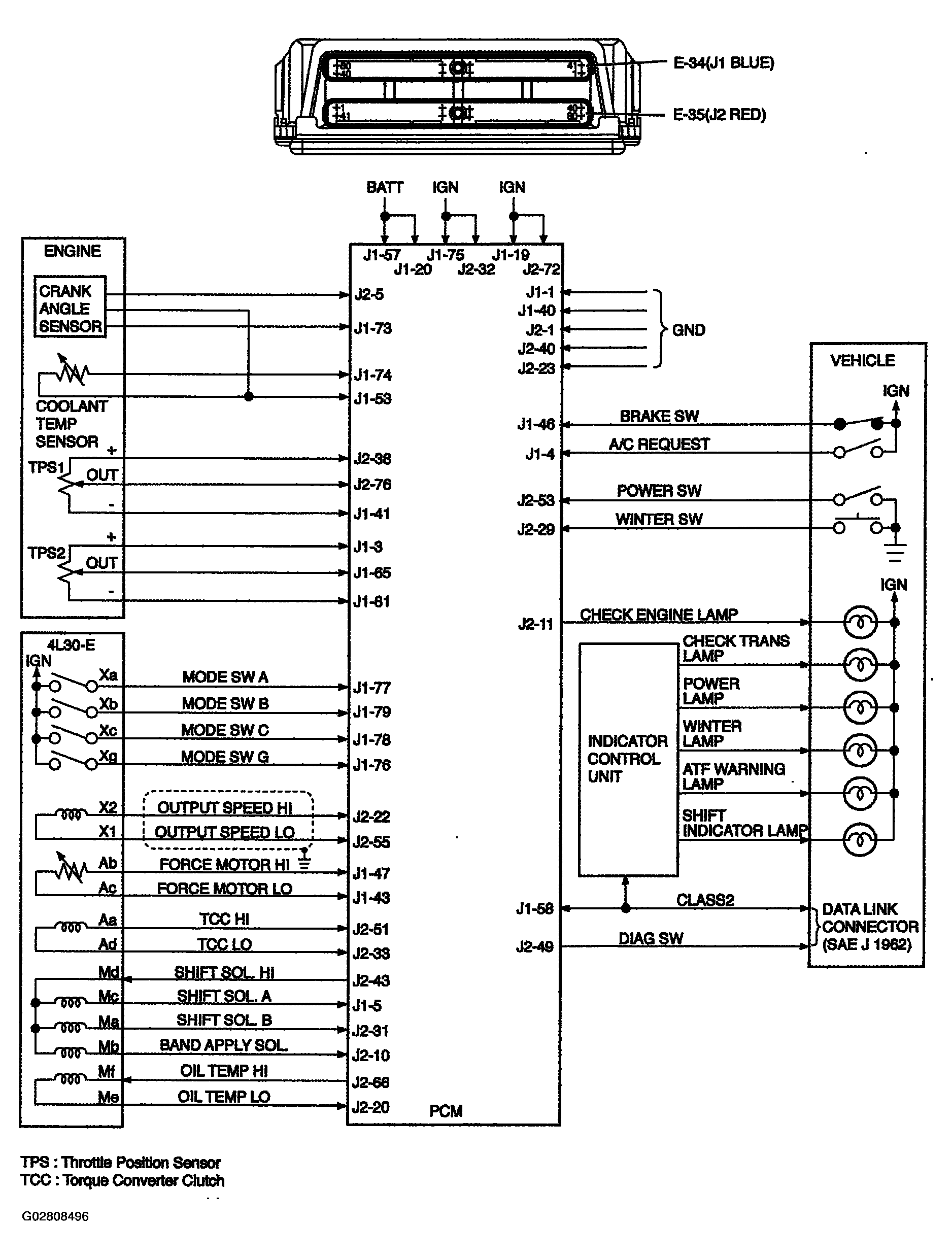

Fig 1: Identifying Powertrain Control Module (PCM)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
