Chart 1: Tight Corner Braking Observed

TIGHT CORNER BRAKING OBSERVED (CHART 1)

Chart 1	Tight Corner Braking Is Observed.
Function of circuit	___
Fail condition	When the vehicle is subject to full steering in the TOD mode, the drive resistance gets large or the judger occurs. Otherwise, the above phenomenon is observed only when the brake is applied.

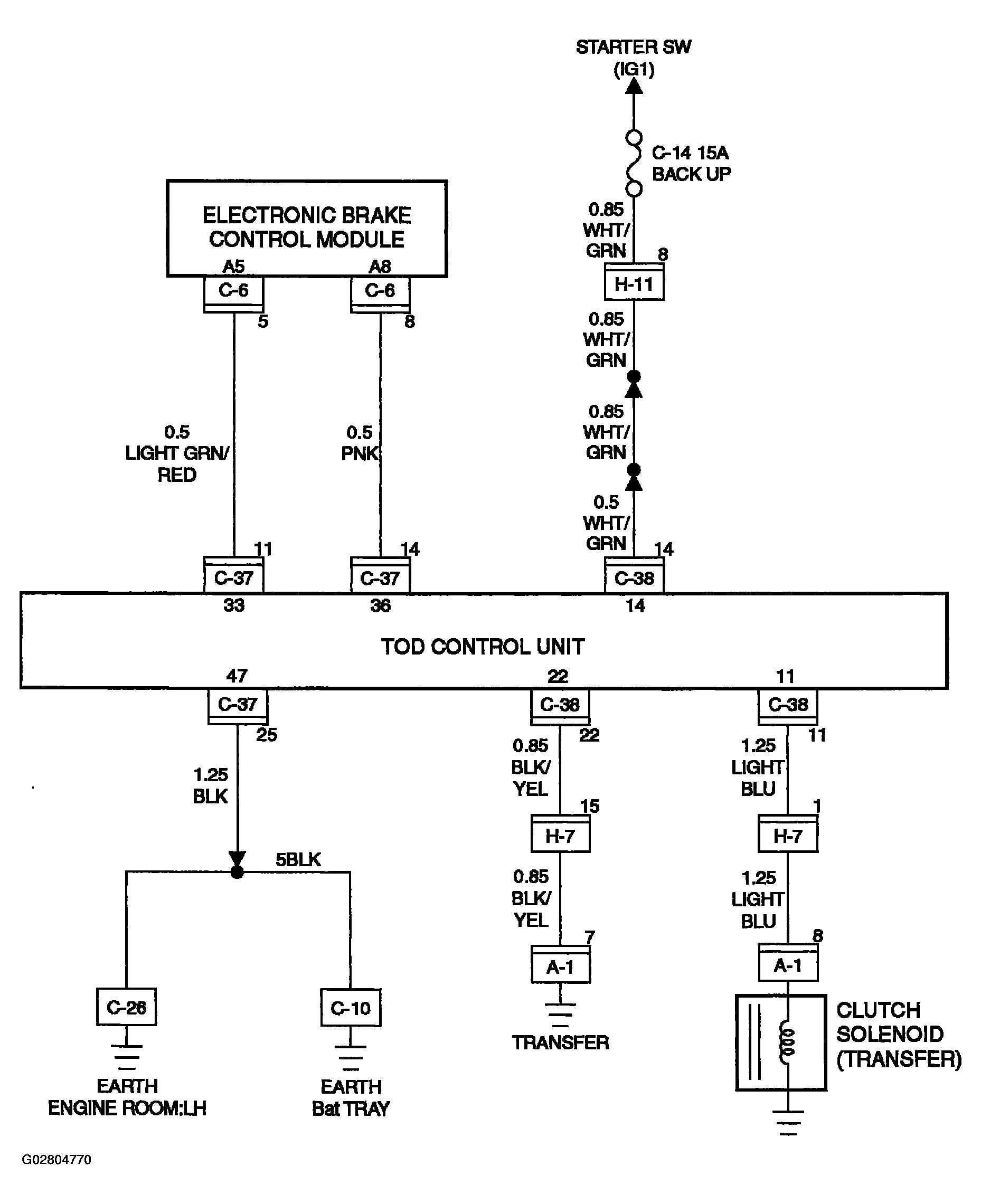

Fig 1: TOD Control Unit Circuit Diagram

Courtesy of ISUZU MOTOR CO.

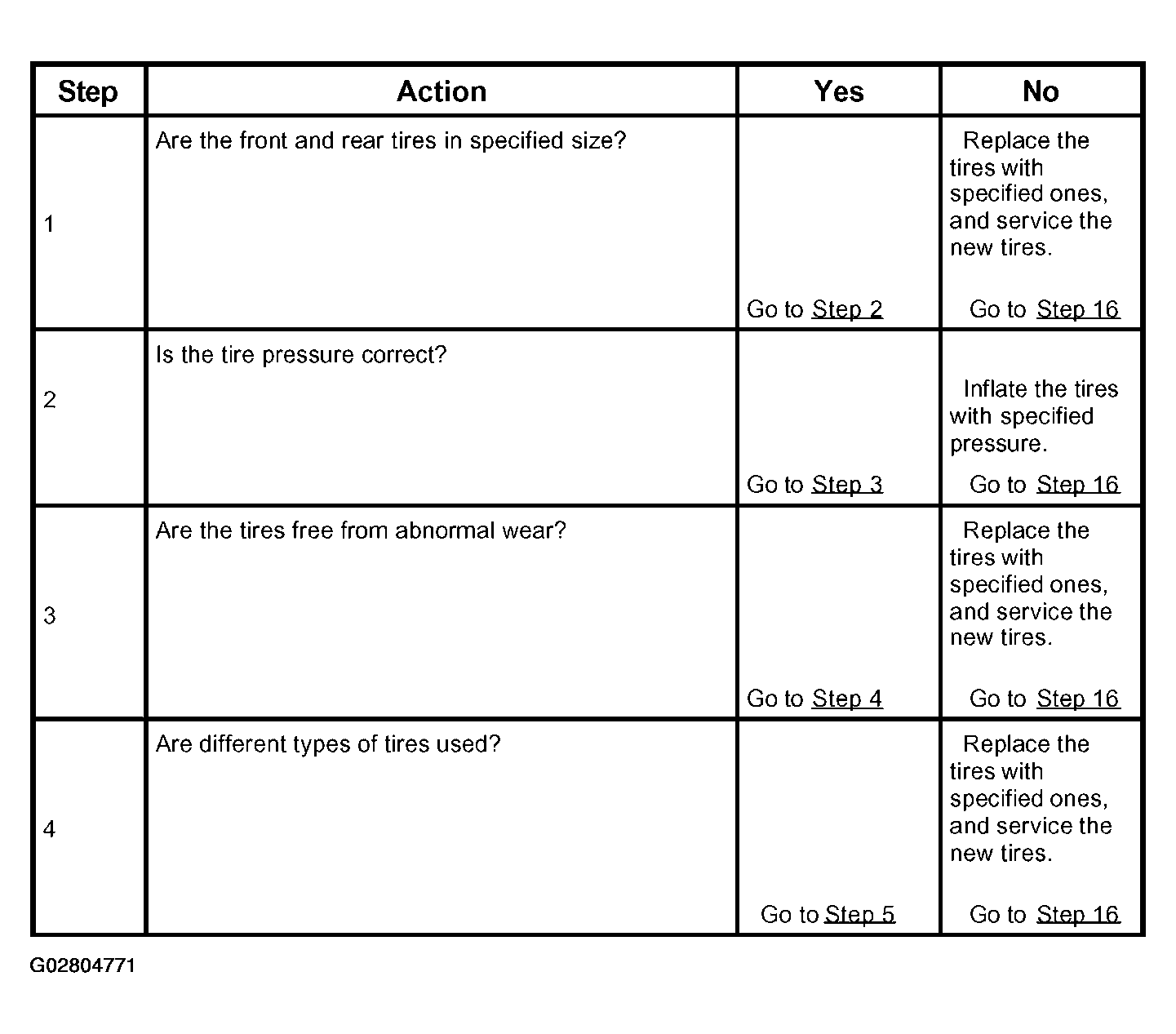

Fig 2: Driveline Control System Symptom Diagnostic Procedure (1 Of 3) (Chart 1)

Courtesy of ISUZU MOTOR CO.

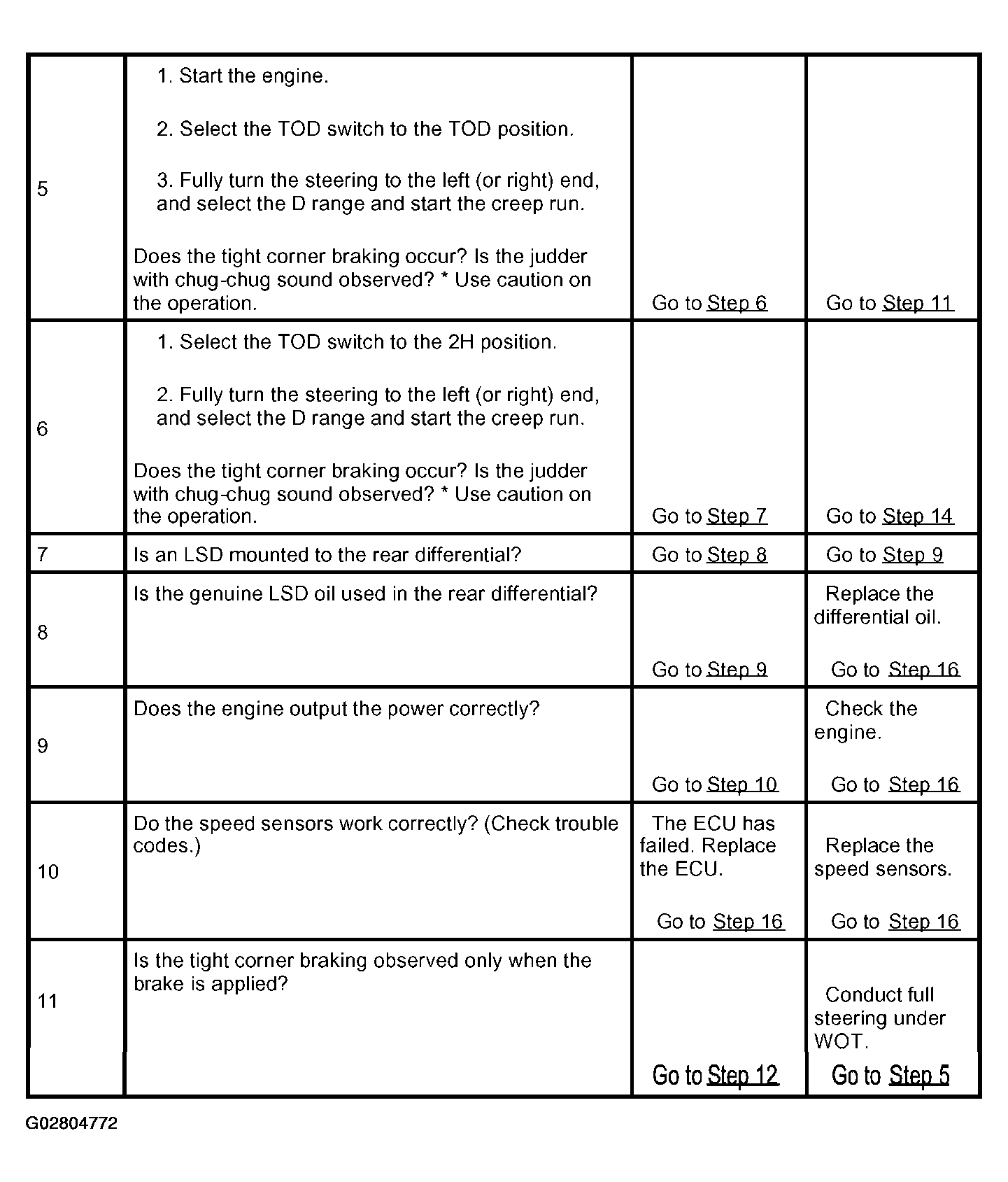

Fig 3: Symptom Diagnostic Procedure (2 Of 3) (Chart 1)

Courtesy of ISUZU MOTOR CO.

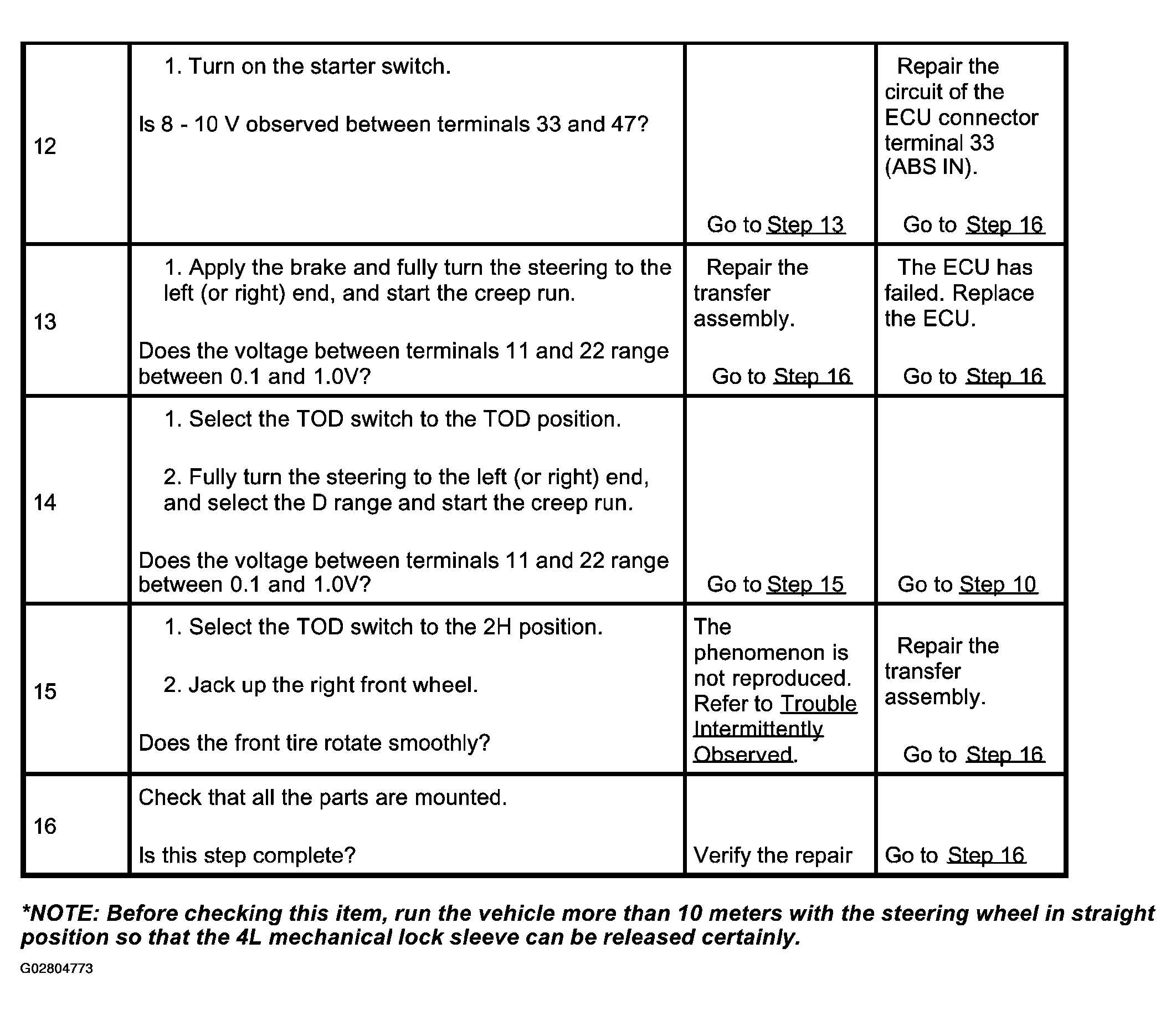

Fig 4: Symptom Diagnostic Procedure (3 Of 3) (Chart 1)

Courtesy of ISUZU MOTOR CO.
