Immobilizer System Check

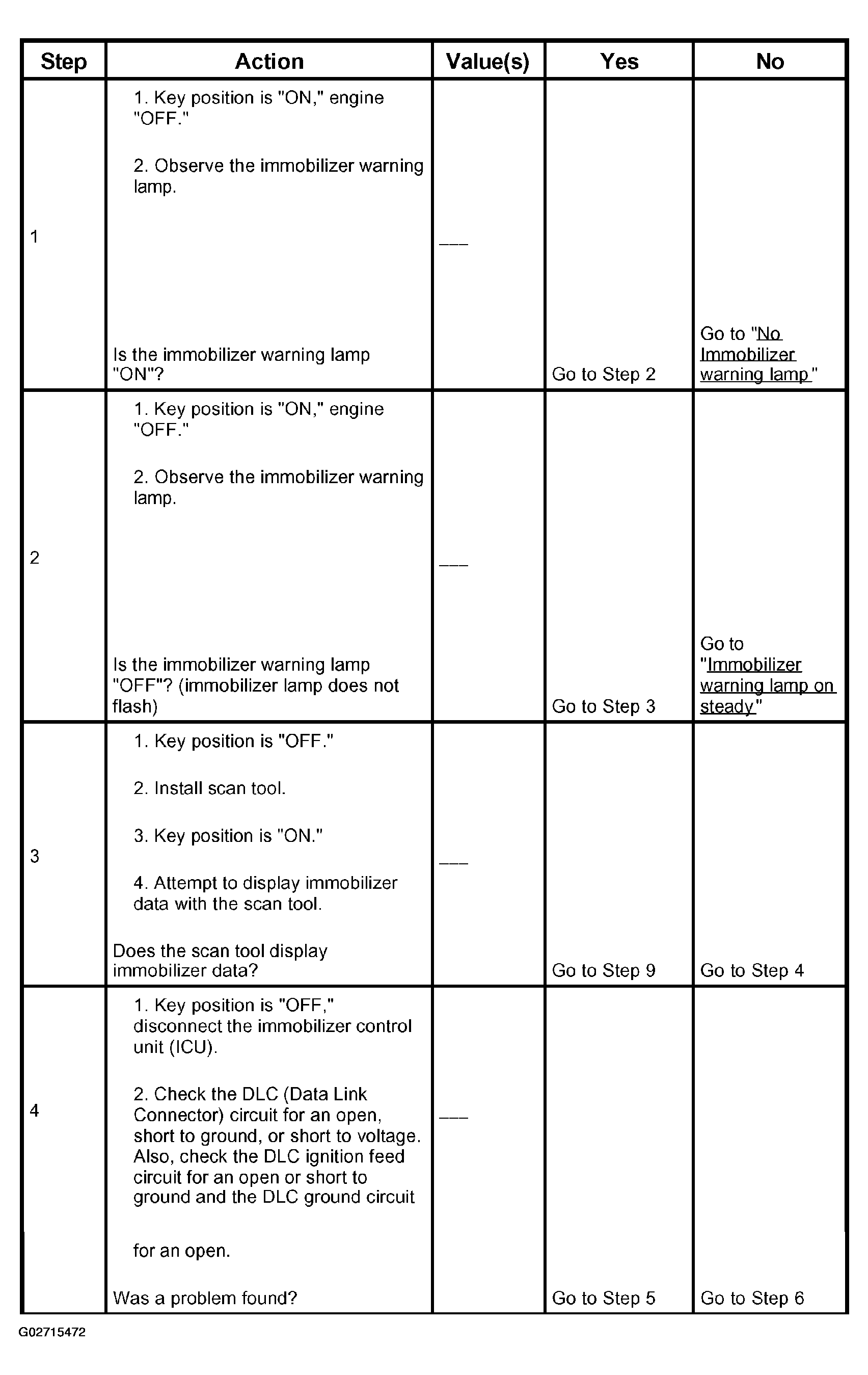

Fig 1: Immobilizer System Check Procedure (1 Of 3)

Courtesy of ISUZU MOTOR CO.

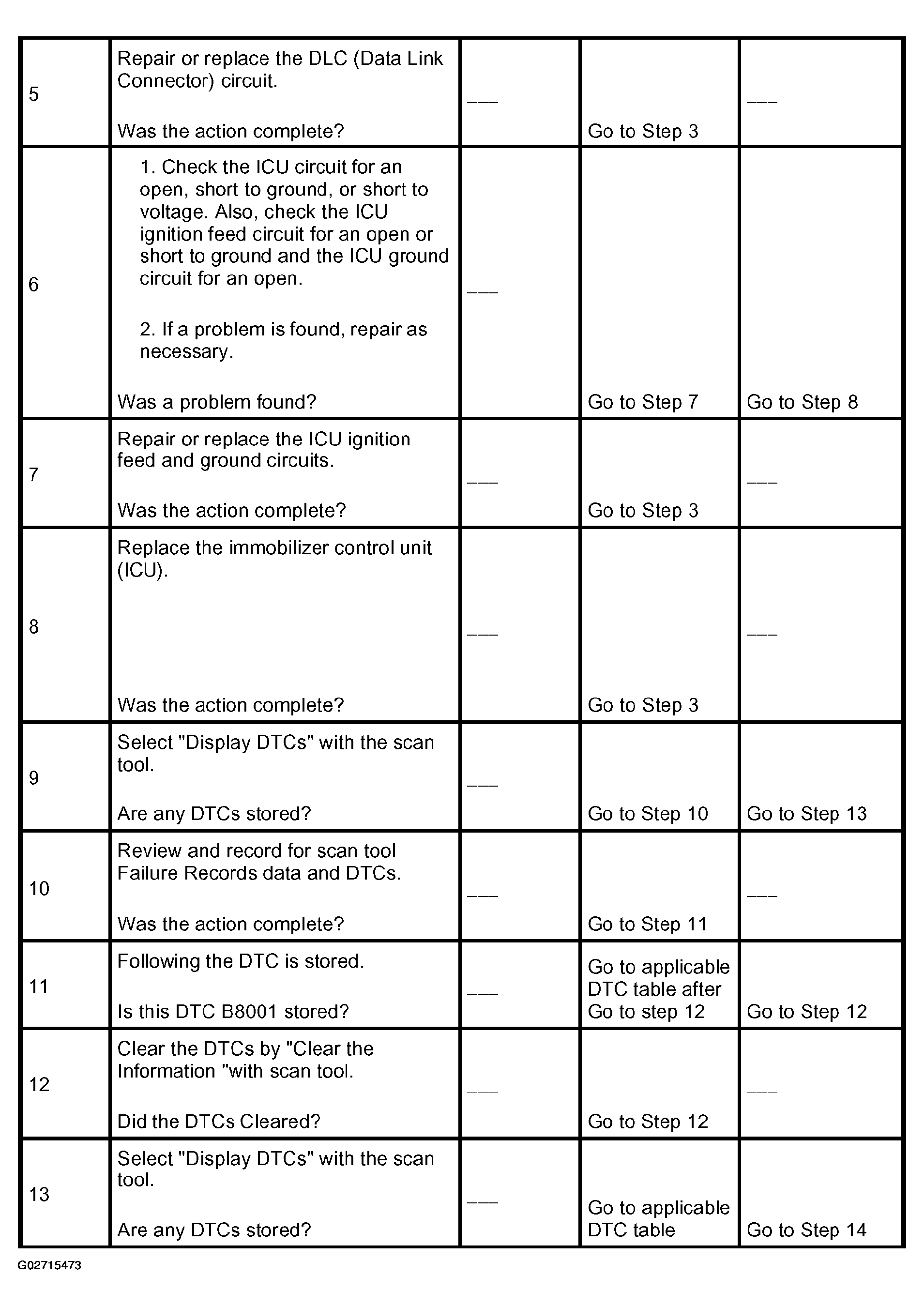

Fig 2: Immobilizer System Check Procedure (2 Of 3)

Courtesy of ISUZU MOTOR CO.

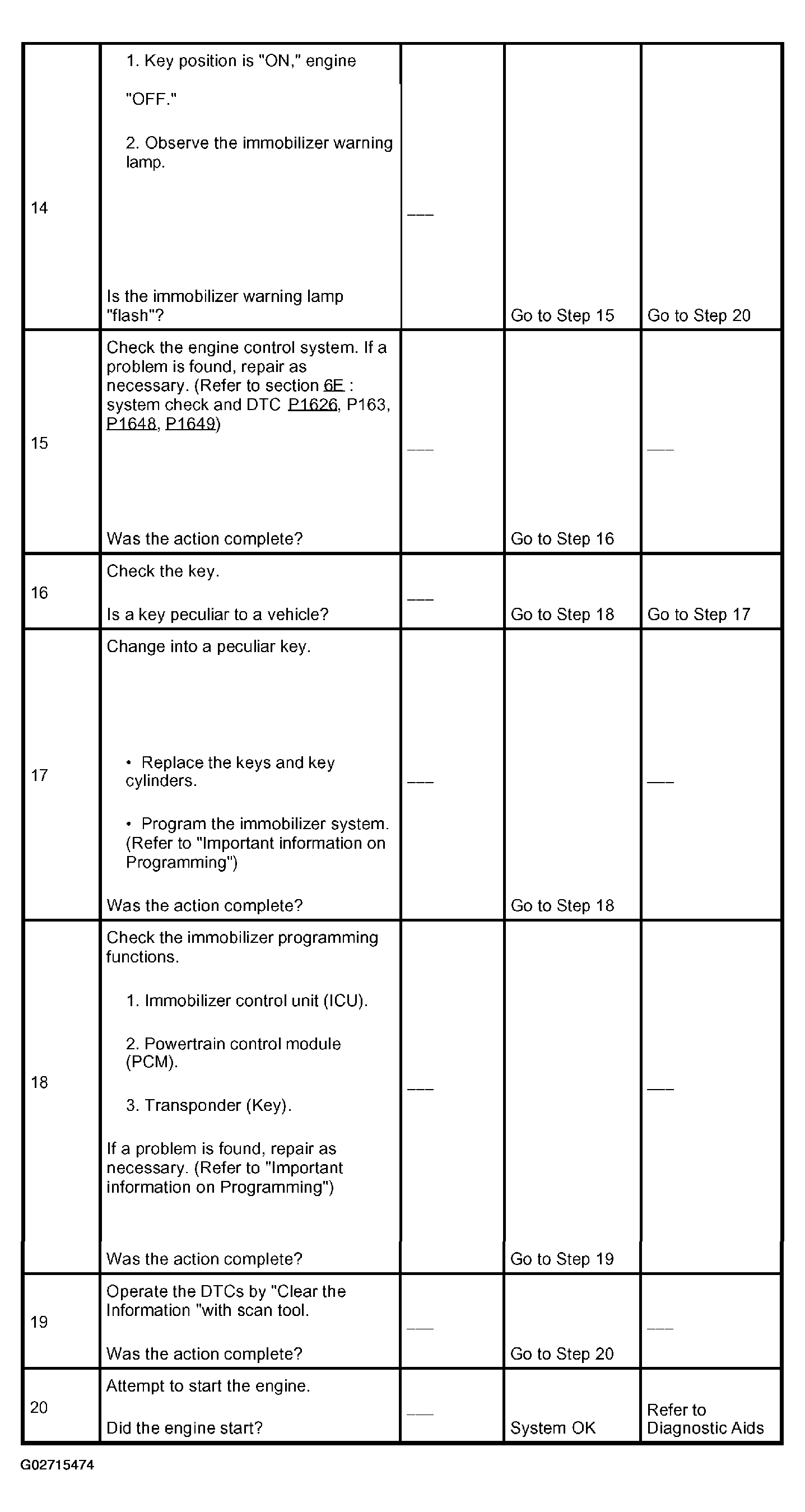

Fig 3: Immobilizer System Check Procedure (3 Of 3)

Courtesy of ISUZU MOTOR CO.
