Parts Location: Notes

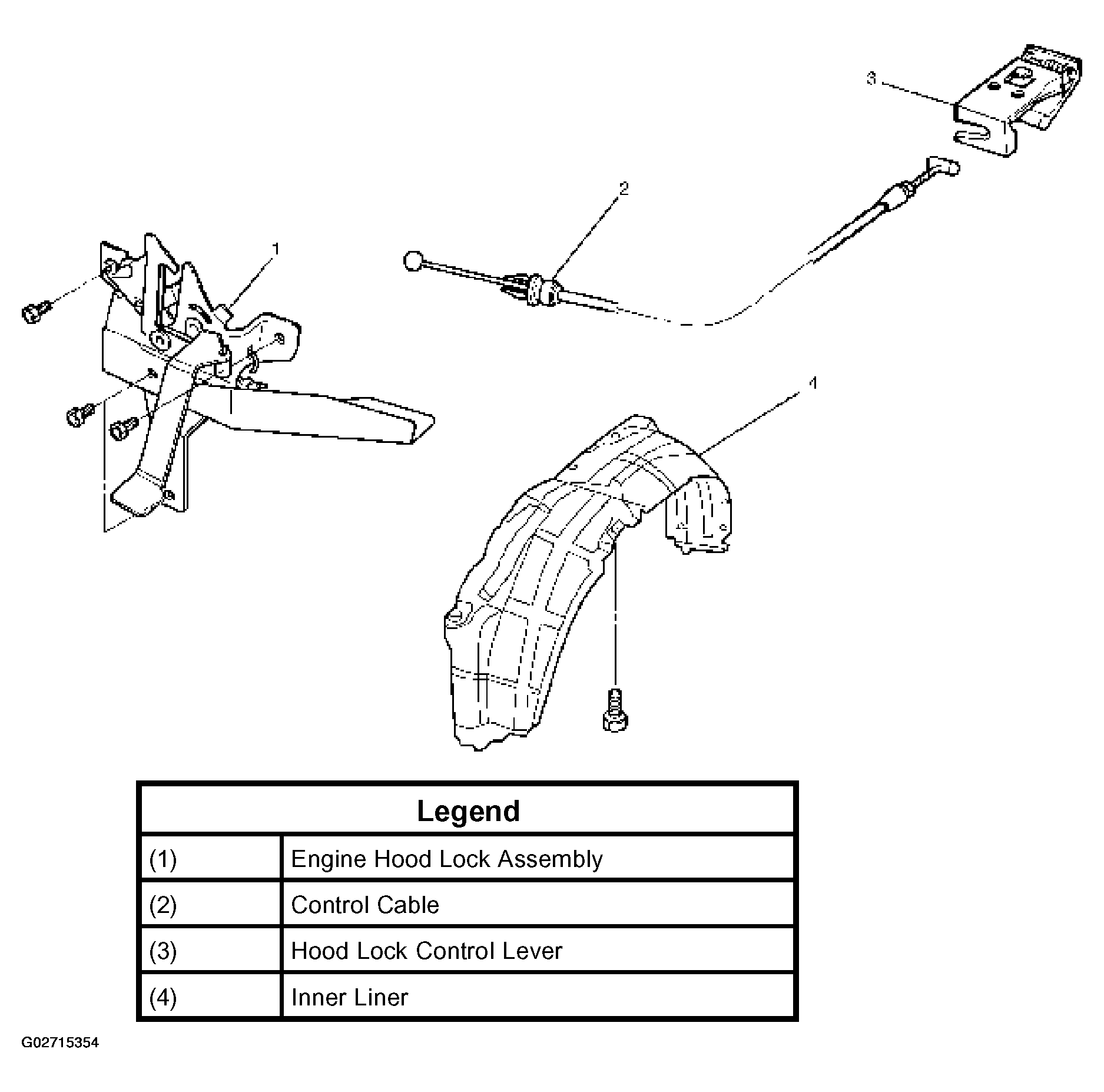

Fig 1: Identifying Parts Location Of Engine Hood Lock
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
