EHCU Connector Pin-Out Checks
›
Circuit Diagram
Circuit Diagram

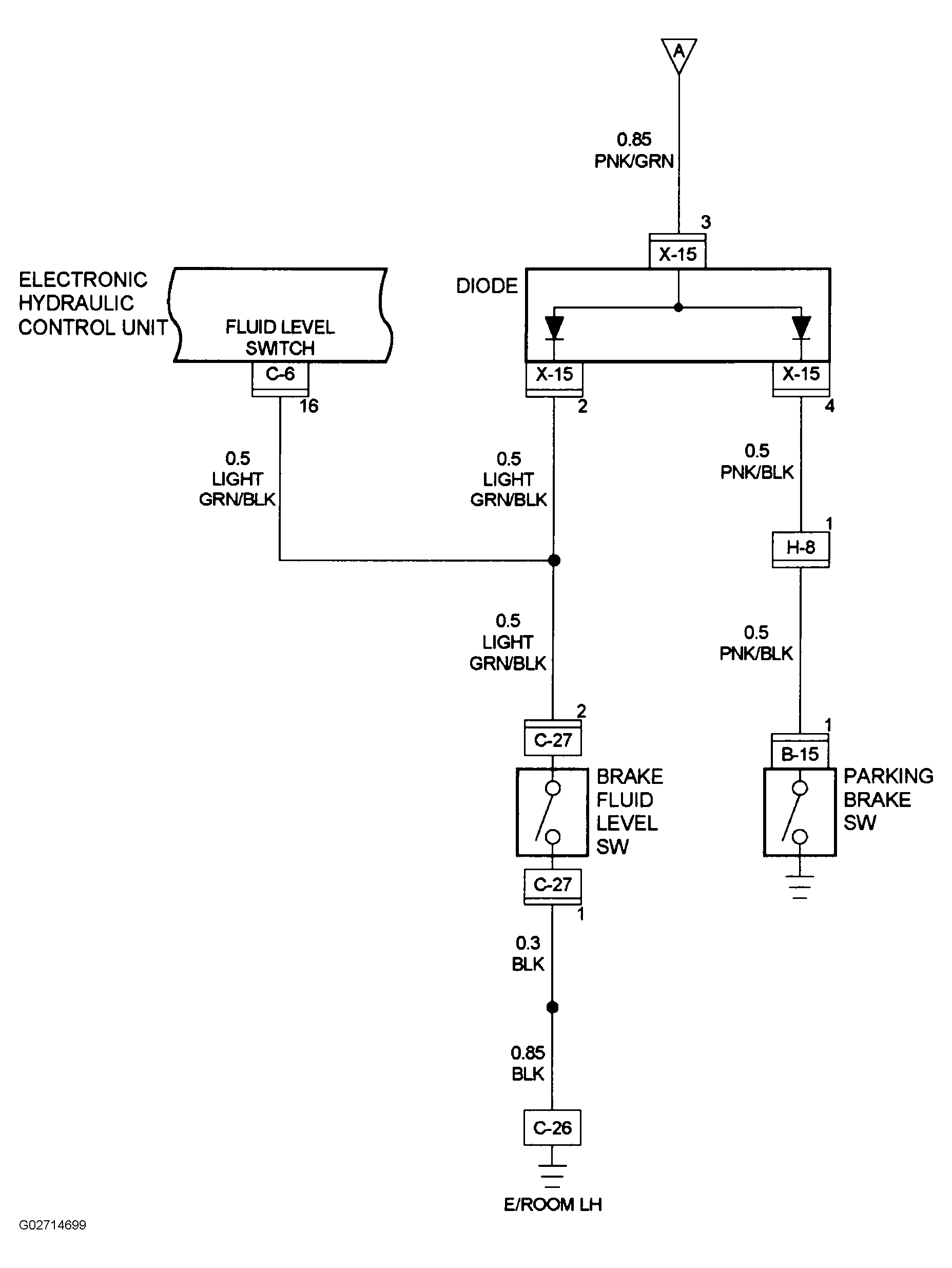

Fig 1: EHCU Connector Circuit Diagram (1 Of 3)
Courtesy of ISUZU MOTOR CO.

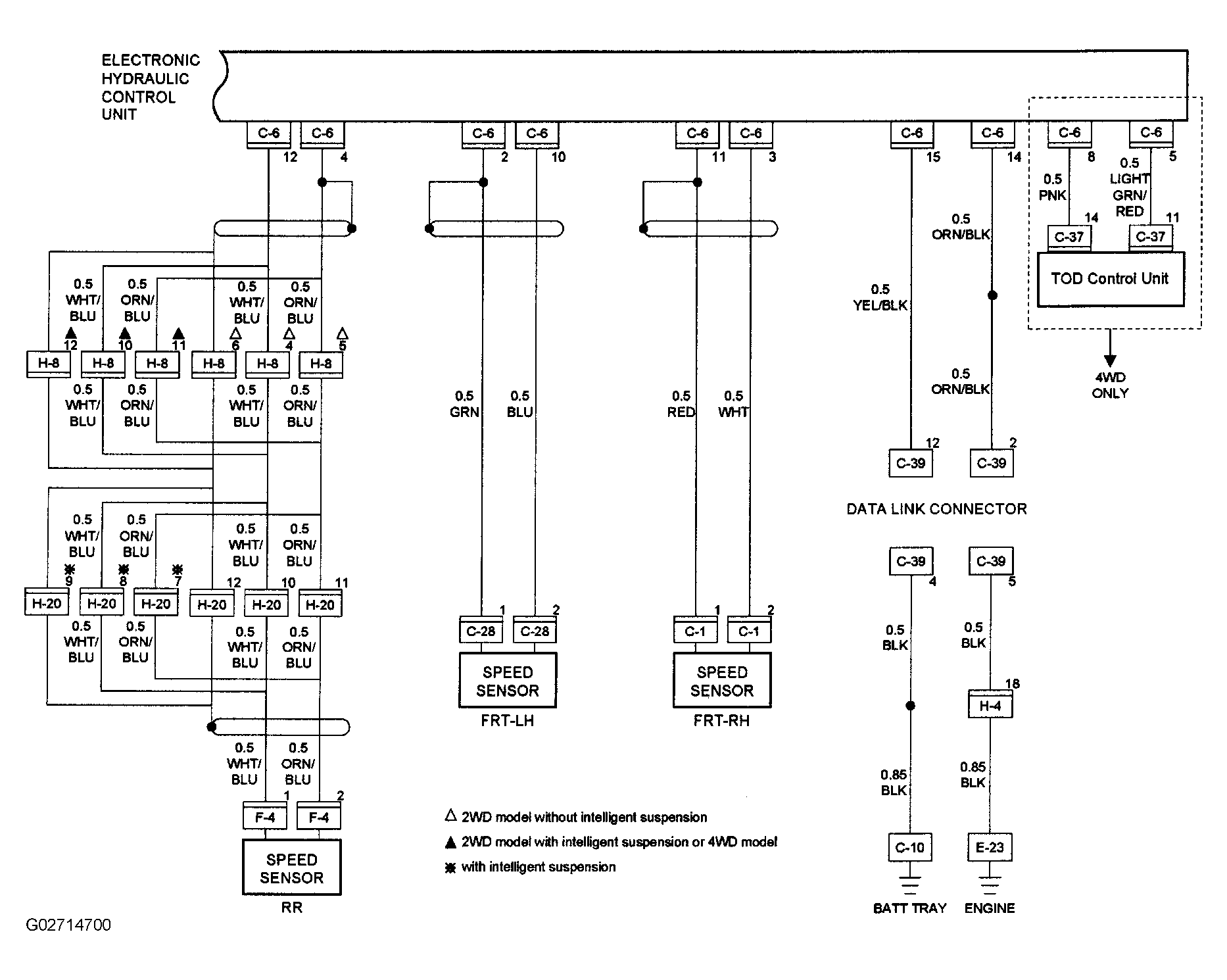

Fig 2: EHCU Connector Circuit Diagram (2 Of 3)
Courtesy of ISUZU MOTOR CO.

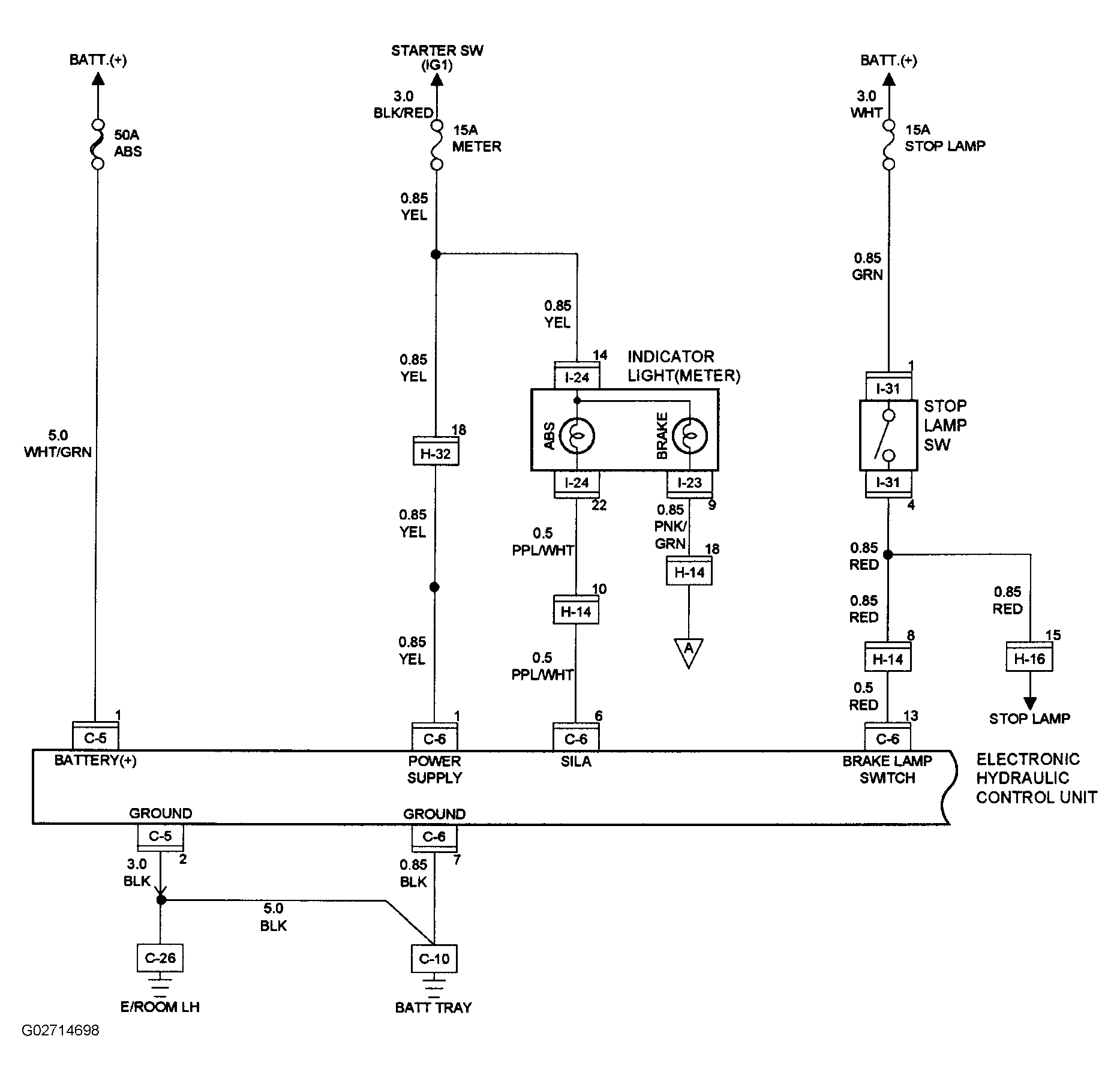

Fig 3: EHCU Connector Circuit Diagram (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
