Connector List

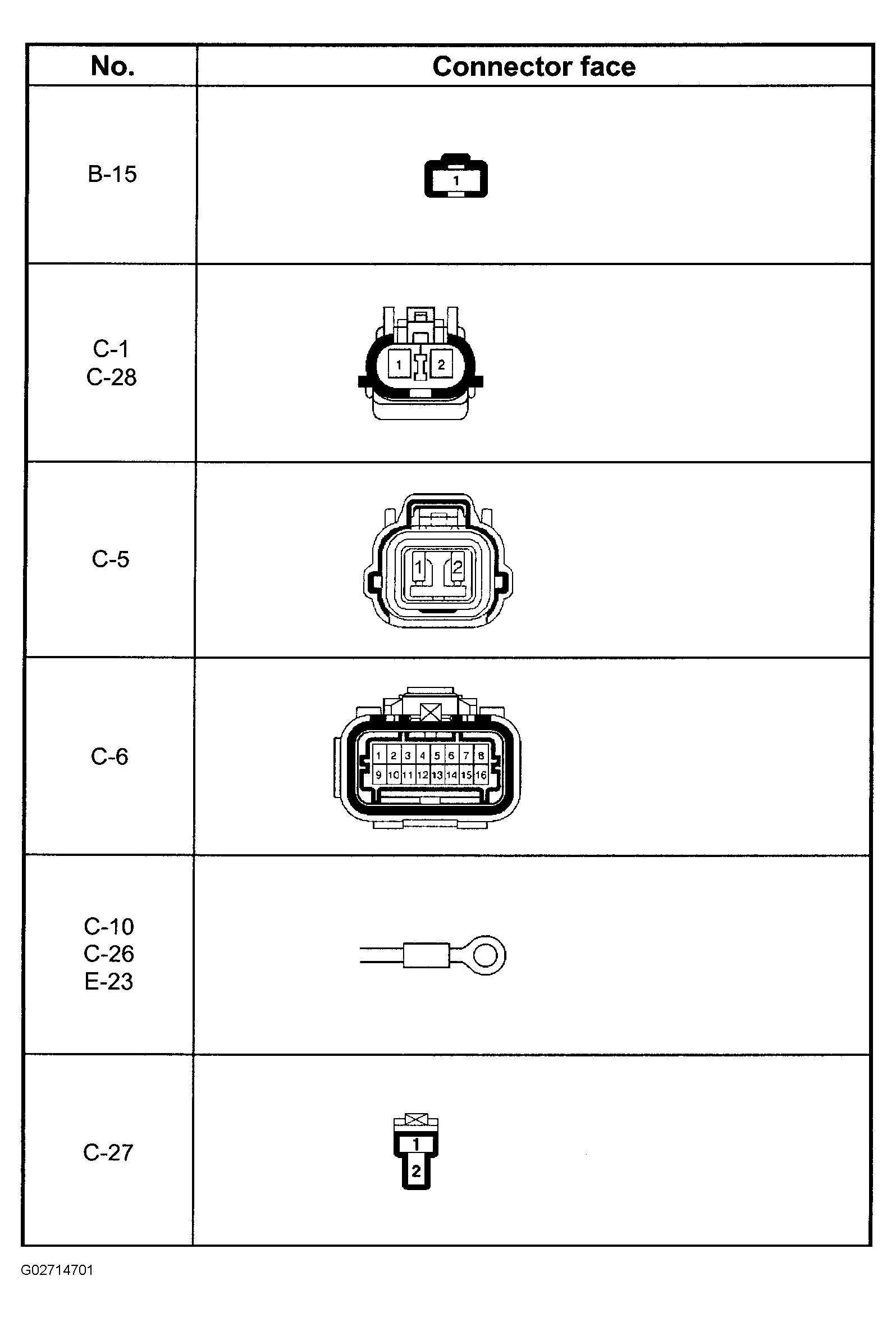

Fig 1: Brake Control System Connector List (1 Of 4)
G02714701Courtesy of ISUZU MOTOR CO.

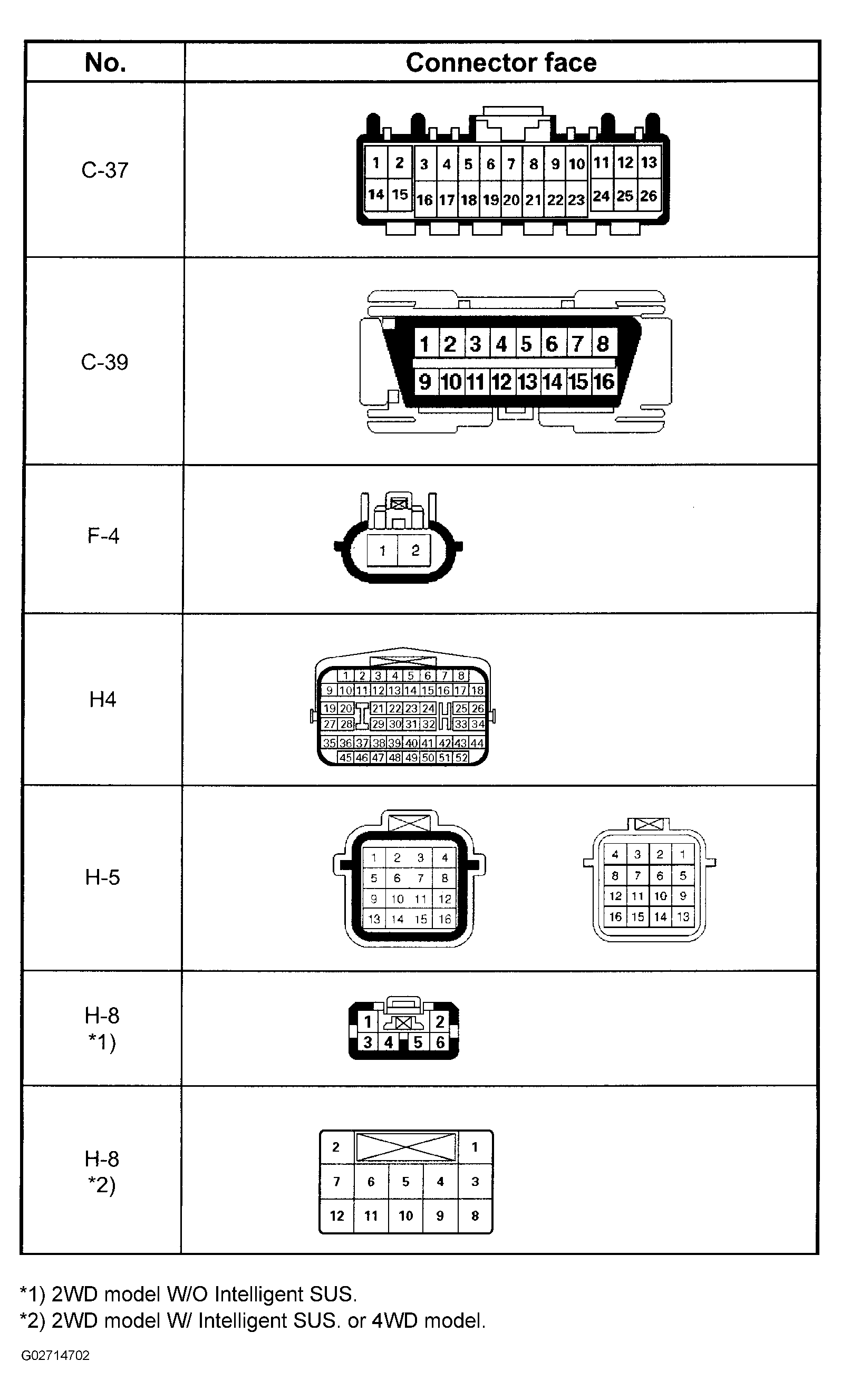

Fig 2: Brake Control System Connector List (2 Of 4)
G02714702Courtesy of ISUZU MOTOR CO.

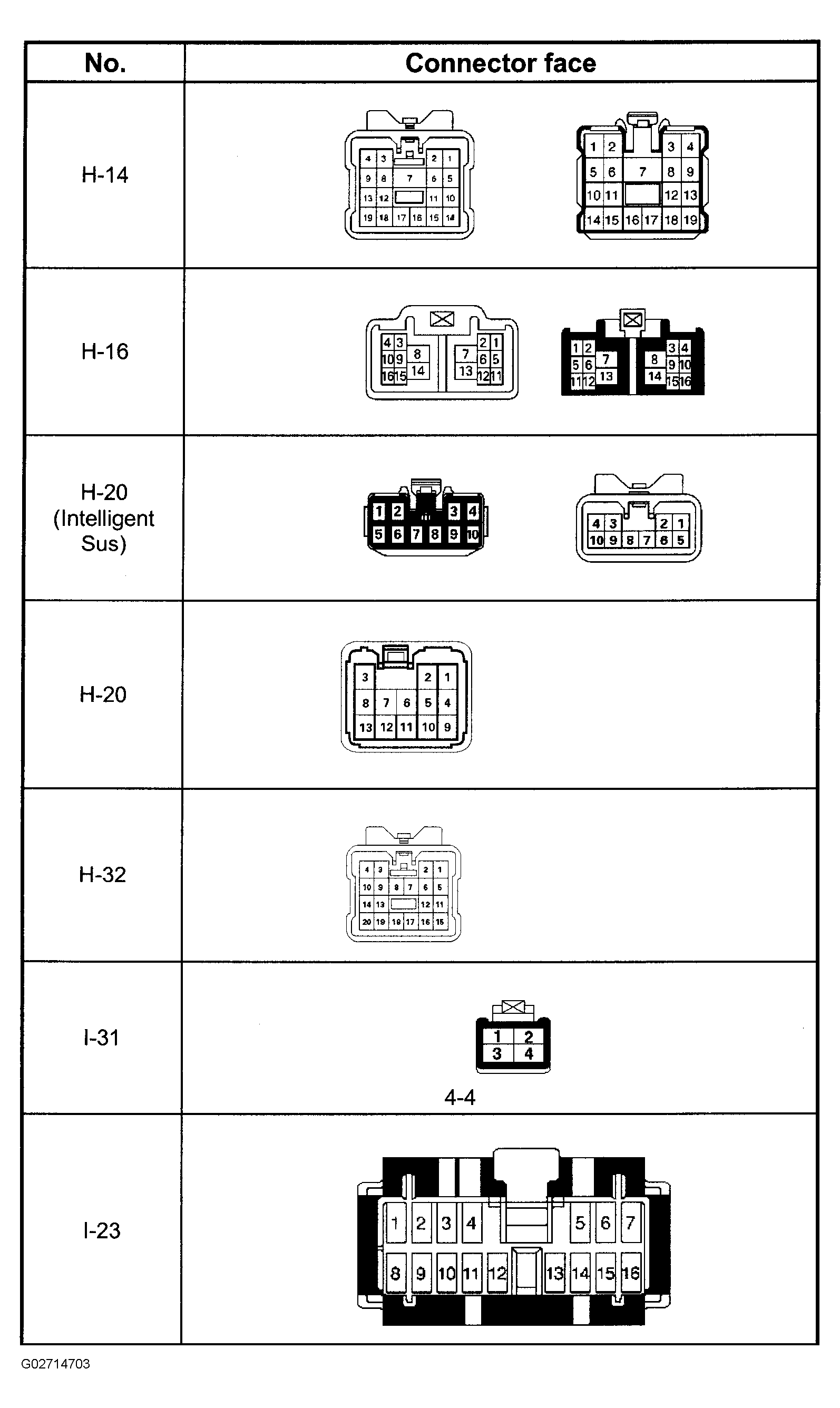

Fig 3: Brake Control System Connector List (3 Of 4)
G02714703Courtesy of ISUZU MOTOR CO.

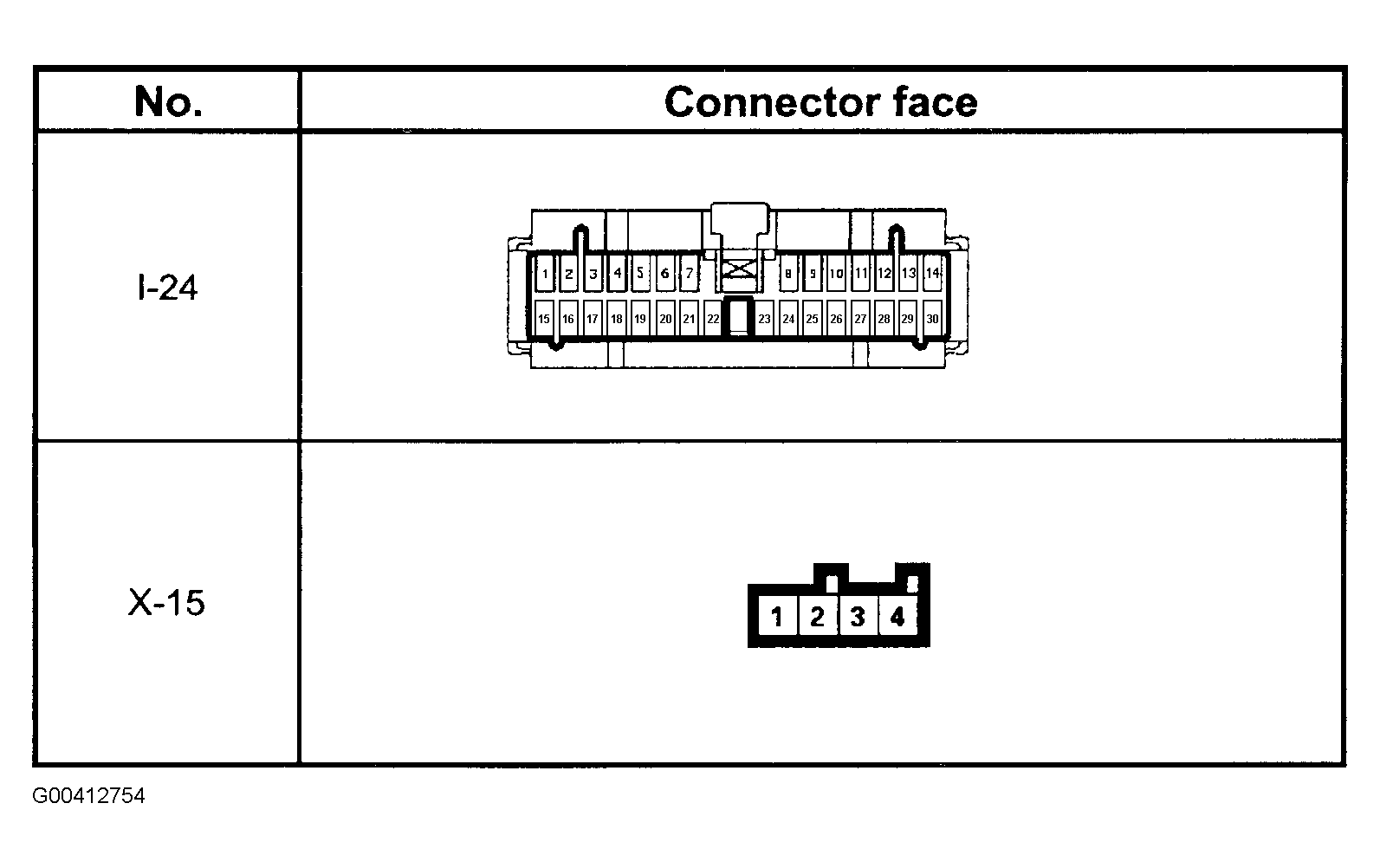

Fig 4: Brake Control System Connector List (4 Of 4)
G00412754Courtesy of ISUZU MOTOR CO.
