Rear Wheel Speed Sensor: Installation

Install speed sensor (3).
Tighten the sensor fixing bolt (2) to the specified torque.
Torque: 24 N.m (17 lb ft)
Connect harness connector (1).

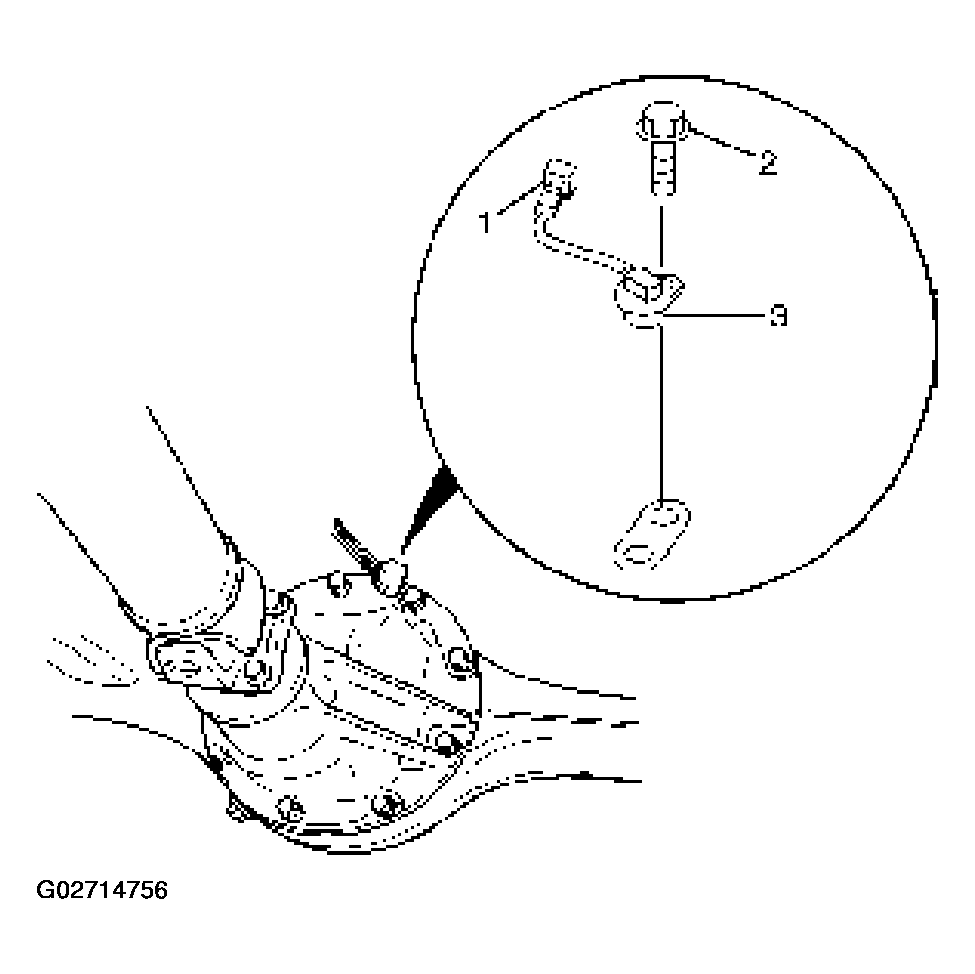

Fig 1: Installing Speed Sensor
Courtesy of ISUZU MOTOR CO.
