Throttle Cable Adjustment

1. Remove air intake pipe from throttle body. See Fig 1 .
2. Loosen throttle cable adjustment nut. Loosen throttle cable jam nut.
3. Pull outer throttle cable back while fully closing the throttle valve. Tighten throttle cable adjusting nut. Tighten throttle cable jam nut.
4. Loosen throttle cable adjusting nut 3 turns. Tighten throttle cable jam nut again.
5. Manually operate throttle valve. Ensure that throttle valve lever closes completely against throttle stop.

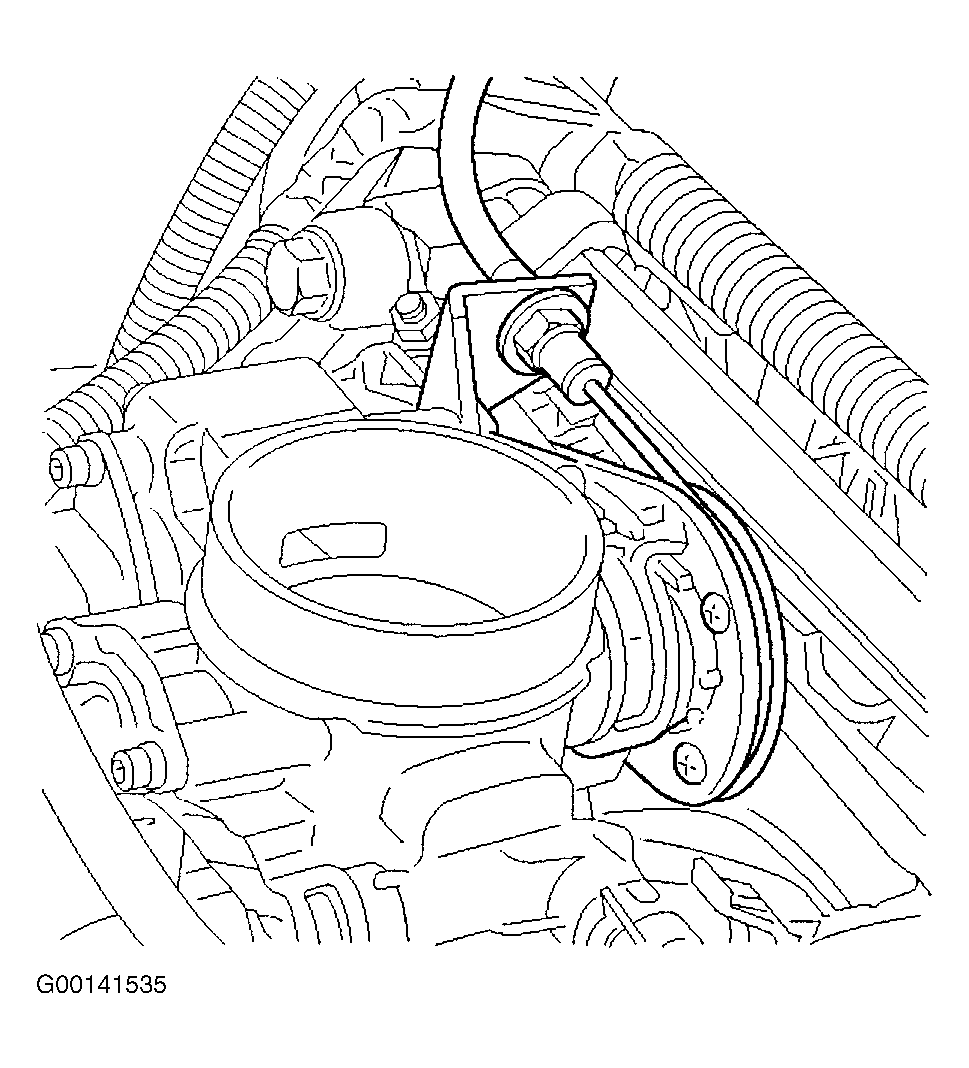

Fig 1: Adjusting Throttle Cable (All Models)

Courtesy of ISUZU MOTOR CO.
