Diagnostic Procedure

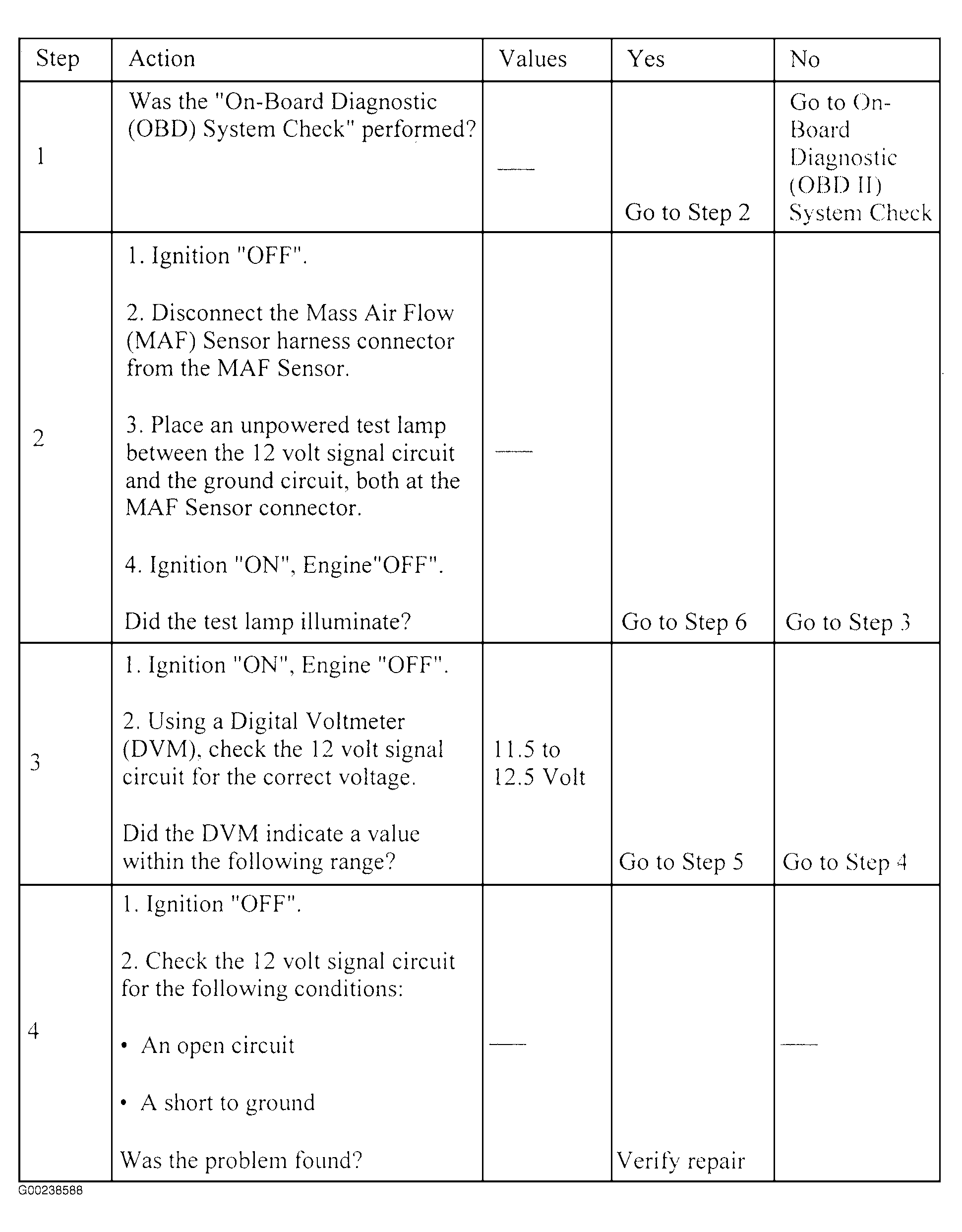

Fig 1: DTC P0101: MAF Sensor System Performance (Steps 1-4))

Courtesy of ISUZU MOTOR CO.

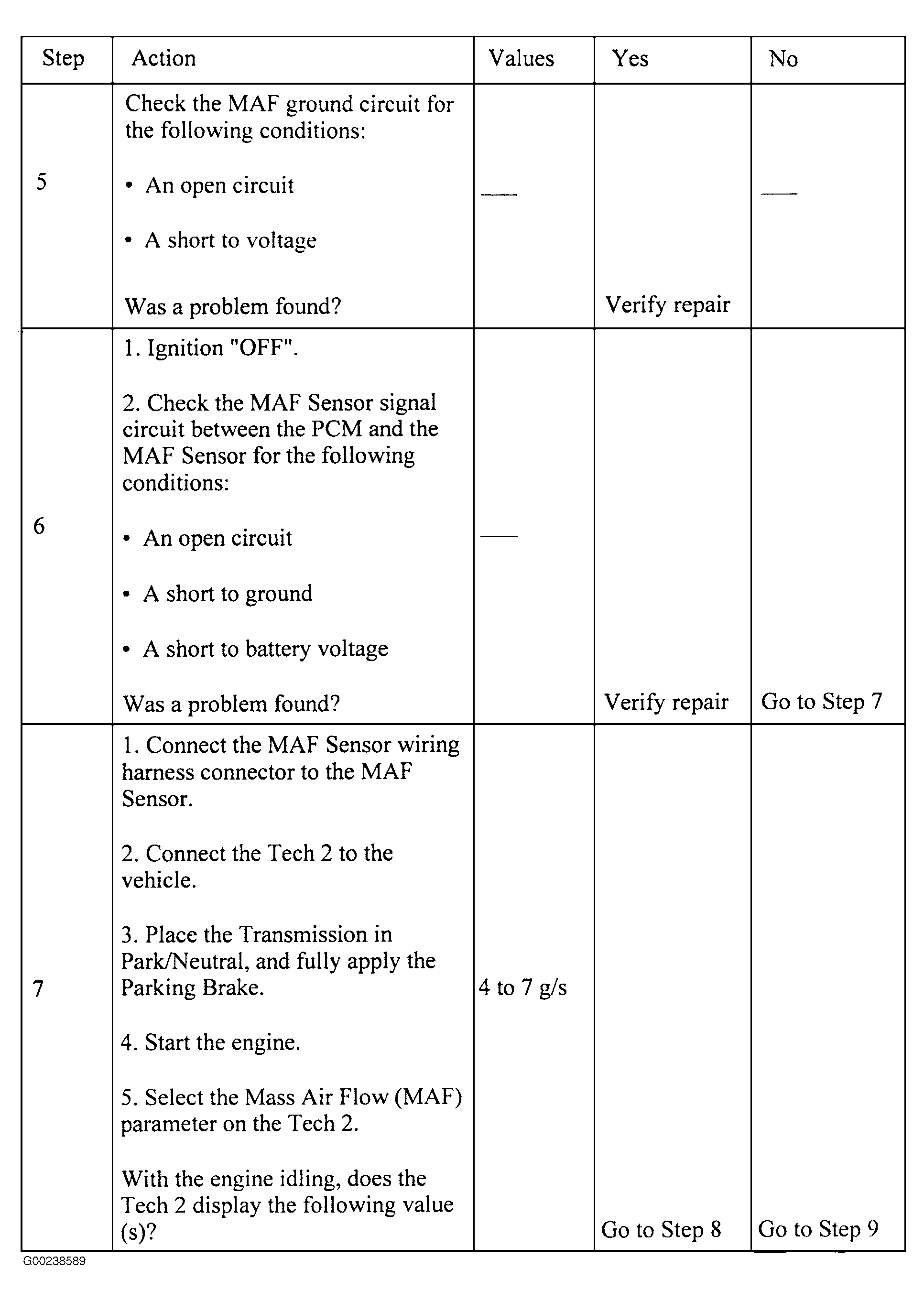

Fig 2: DTC P0101: MAF Sensor System Performance (Steps 5-7)

Courtesy of ISUZU MOTOR CO.

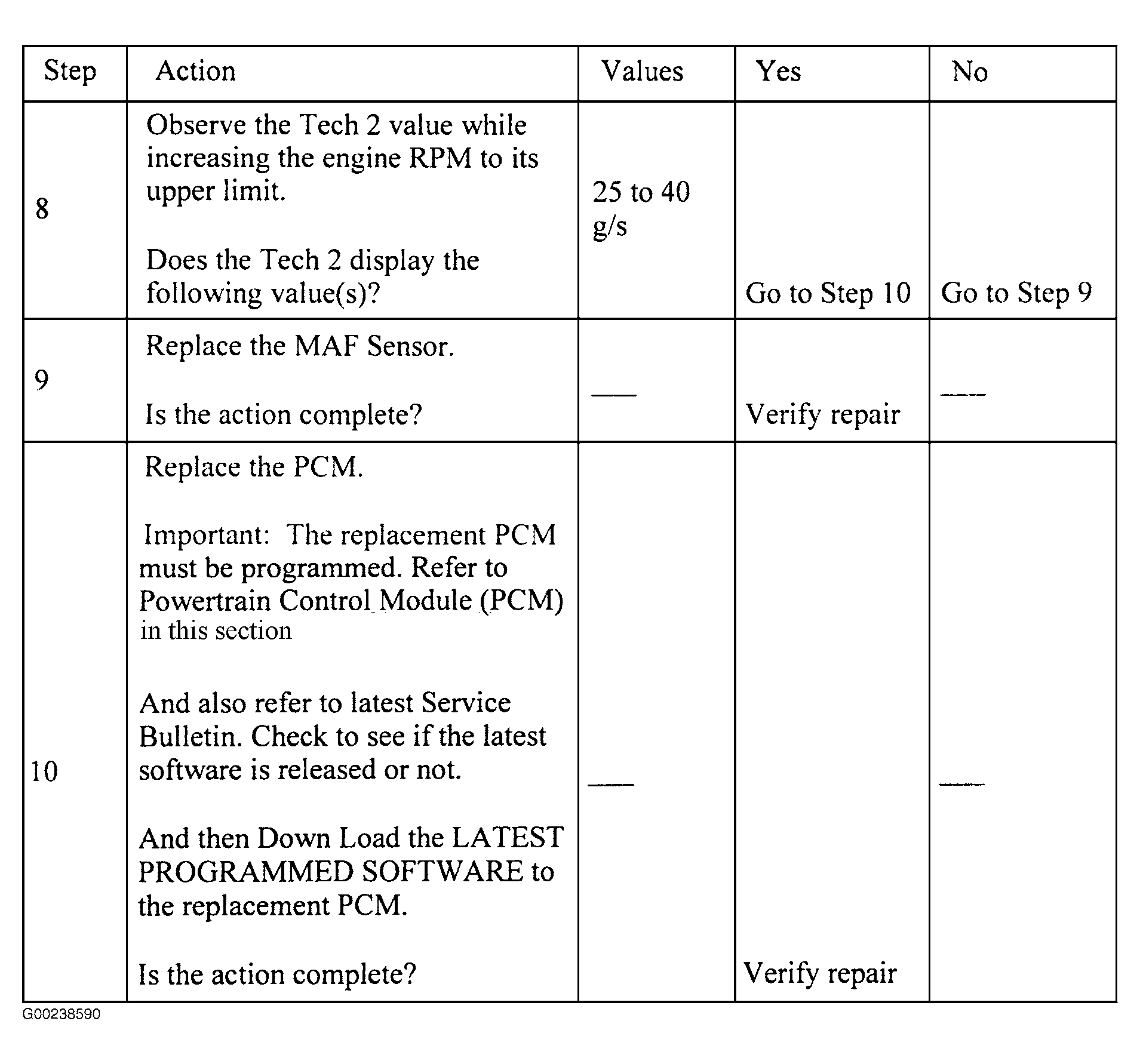

Fig 3: DTC P0101: MAF Sensor System Performance (Steps 8-10)

Courtesy of ISUZU MOTOR CO.
