Diagnostic Procedure

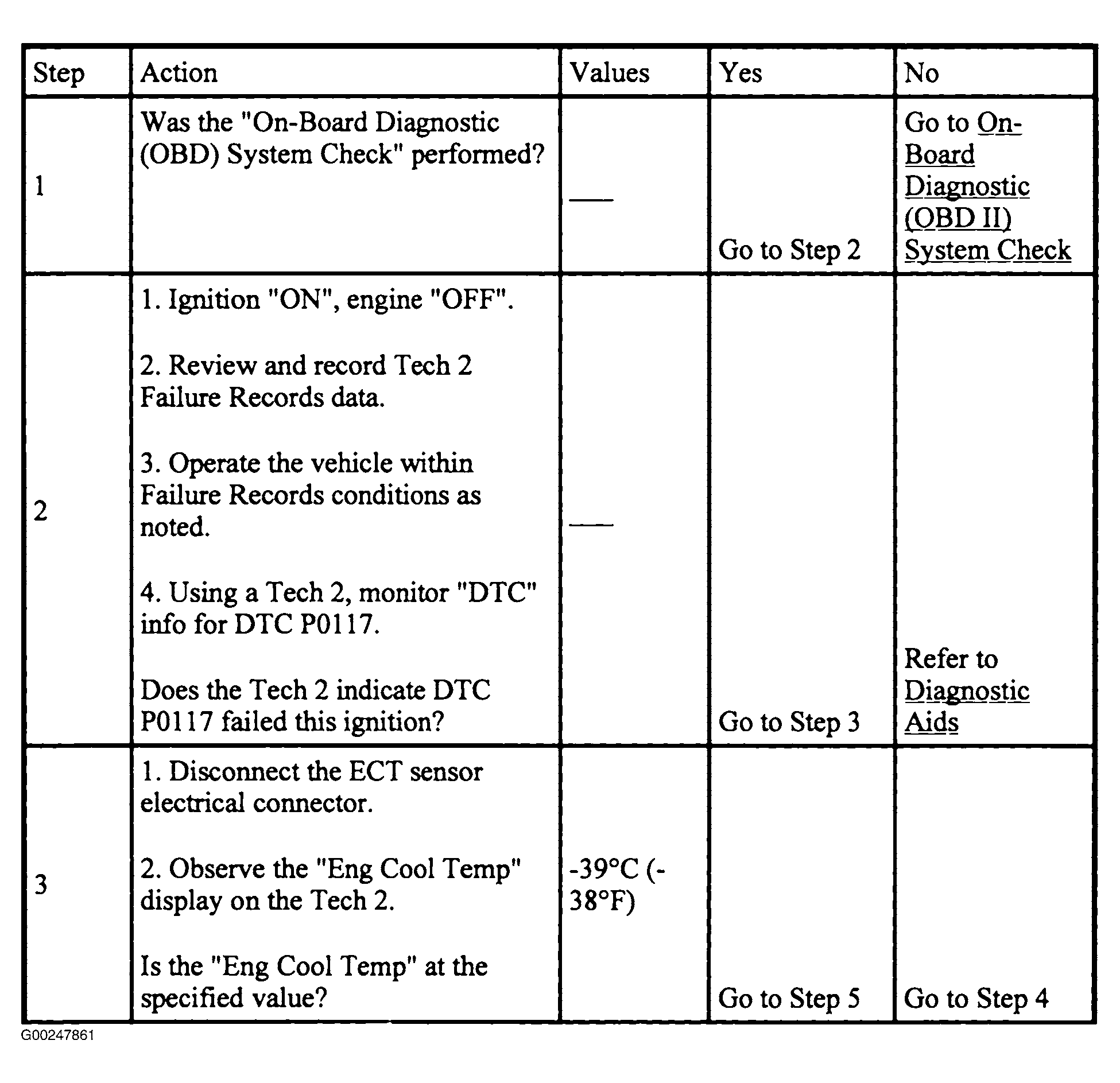

Fig 1: DTC P0116: ECT Sensor - Sensor Stuck (Steps 1-3)
G00247861Courtesy of ISUZU MOTOR CO.

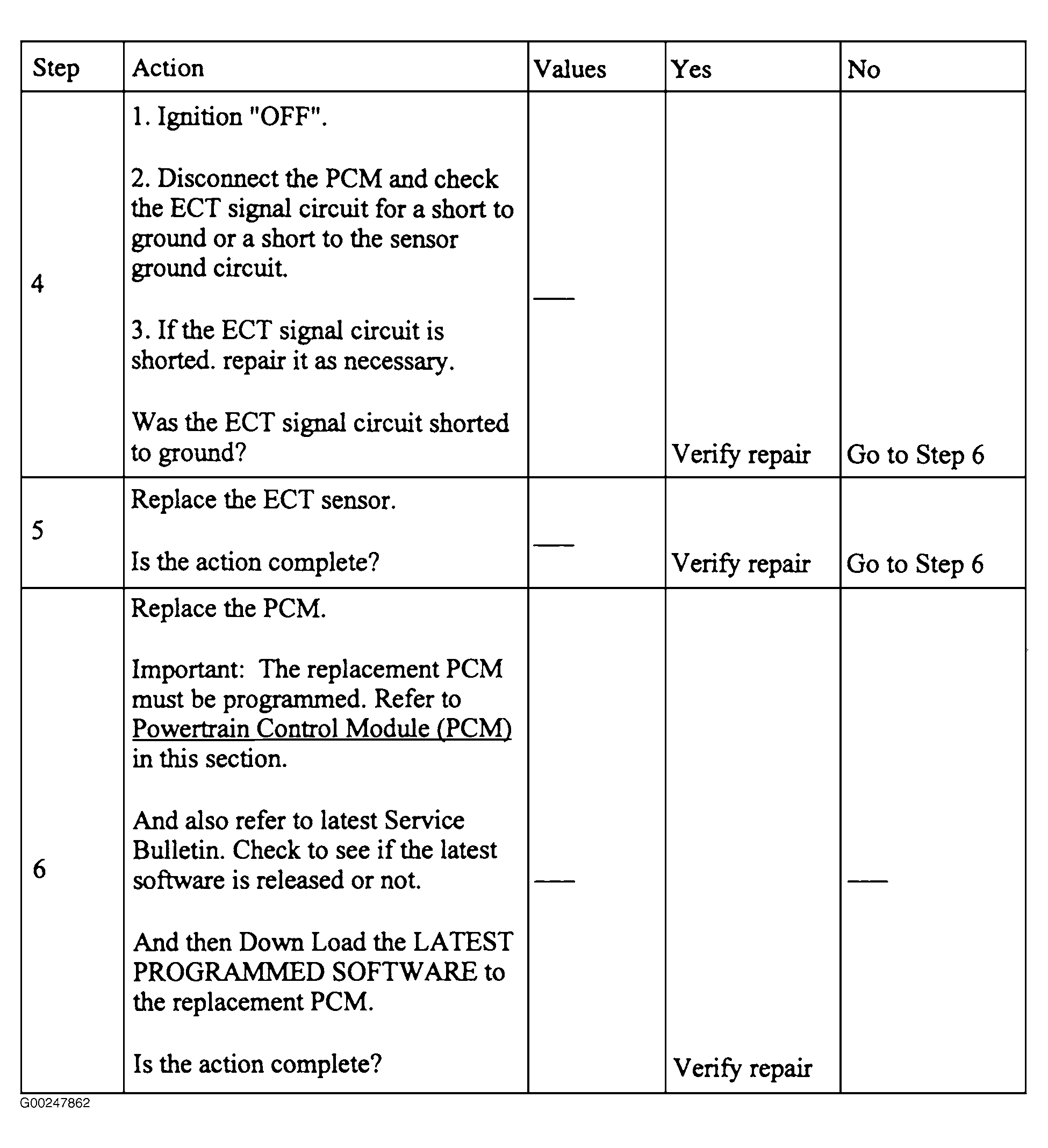

Fig 2: DTC P116: ECT Sensor - Sensor Stuck (Steps 4-6)
G00247862Courtesy of ISUZU MOTOR CO.
