Engine Controls - Self-Diagnostics
›
Diagnostic Tests
›
DTC P0125: Engine Coolant Temperature Sensor Excessive Time To Closed Loop Fuel Control
›
Diagnostic Procedure
Diagnostic Procedure

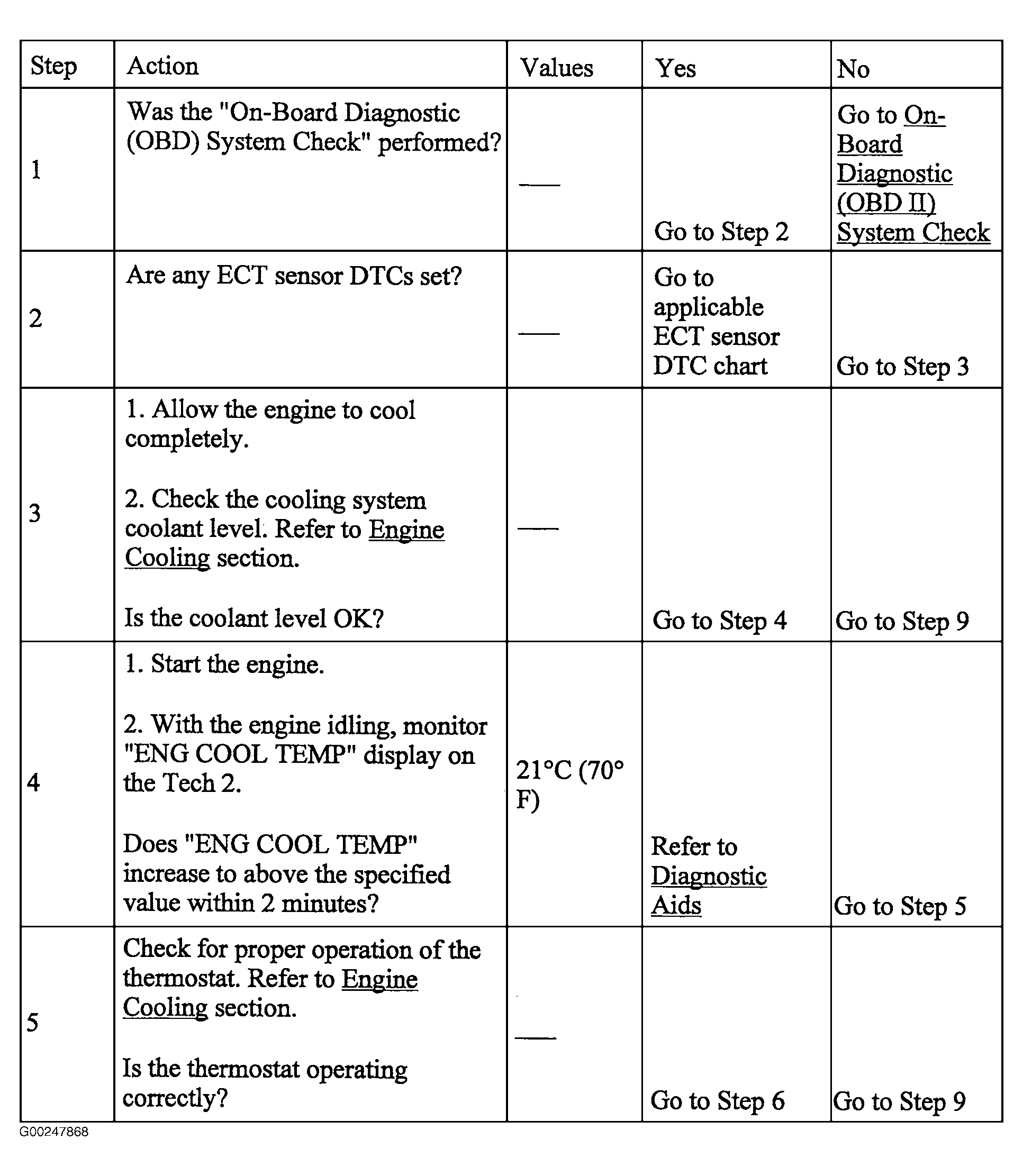

Fig 1: DTC P0125: ECT Sensor Excessive Time To Closed Loop Fuel Control (Steps 1-5)
Courtesy of ISUZU MOTOR CO.

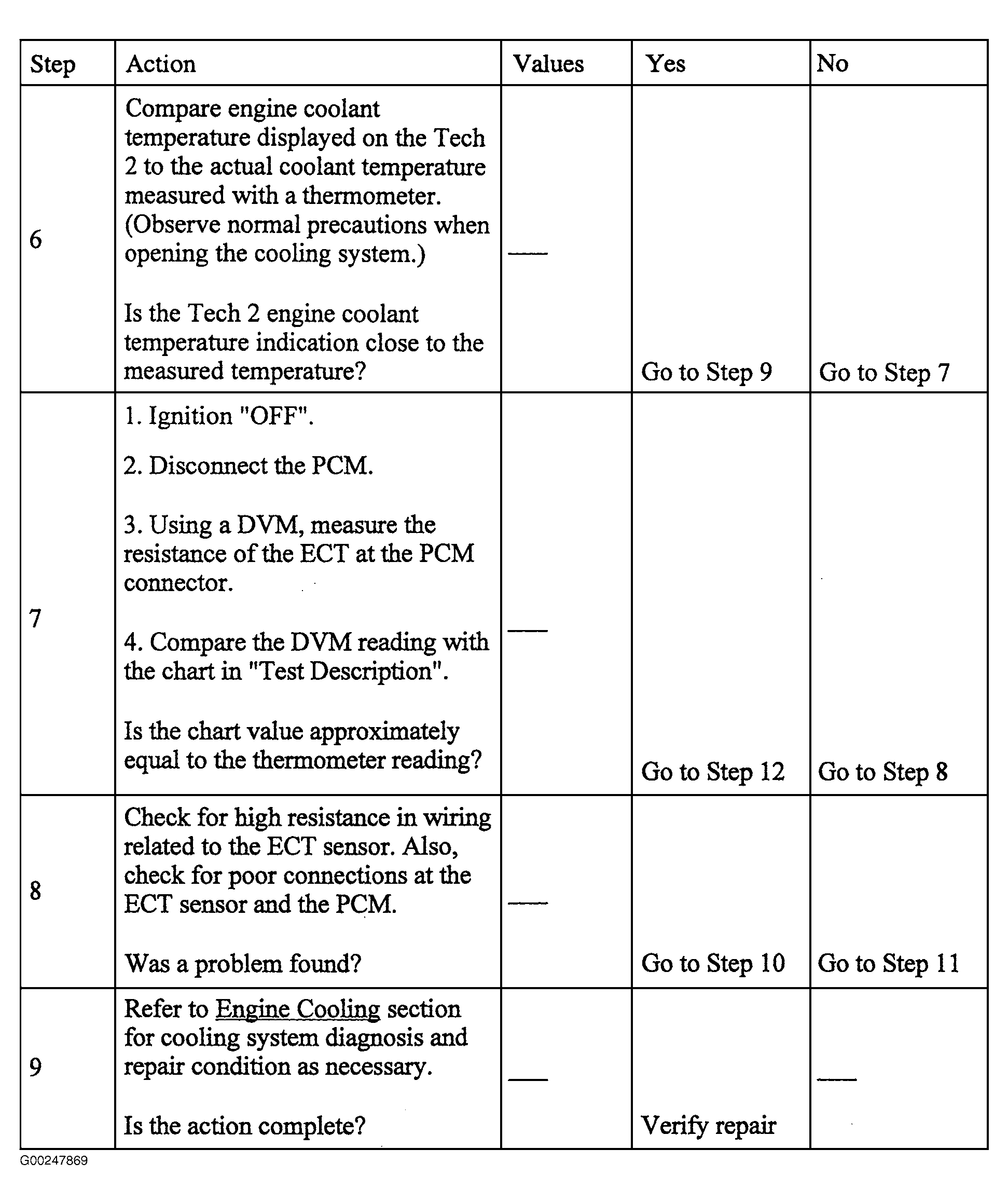

Fig 2: DTC P0125: ECT Sensor Excessive Time To Closed Loop Fuel Control (Steps 6-9)
Courtesy of ISUZU MOTOR CO.

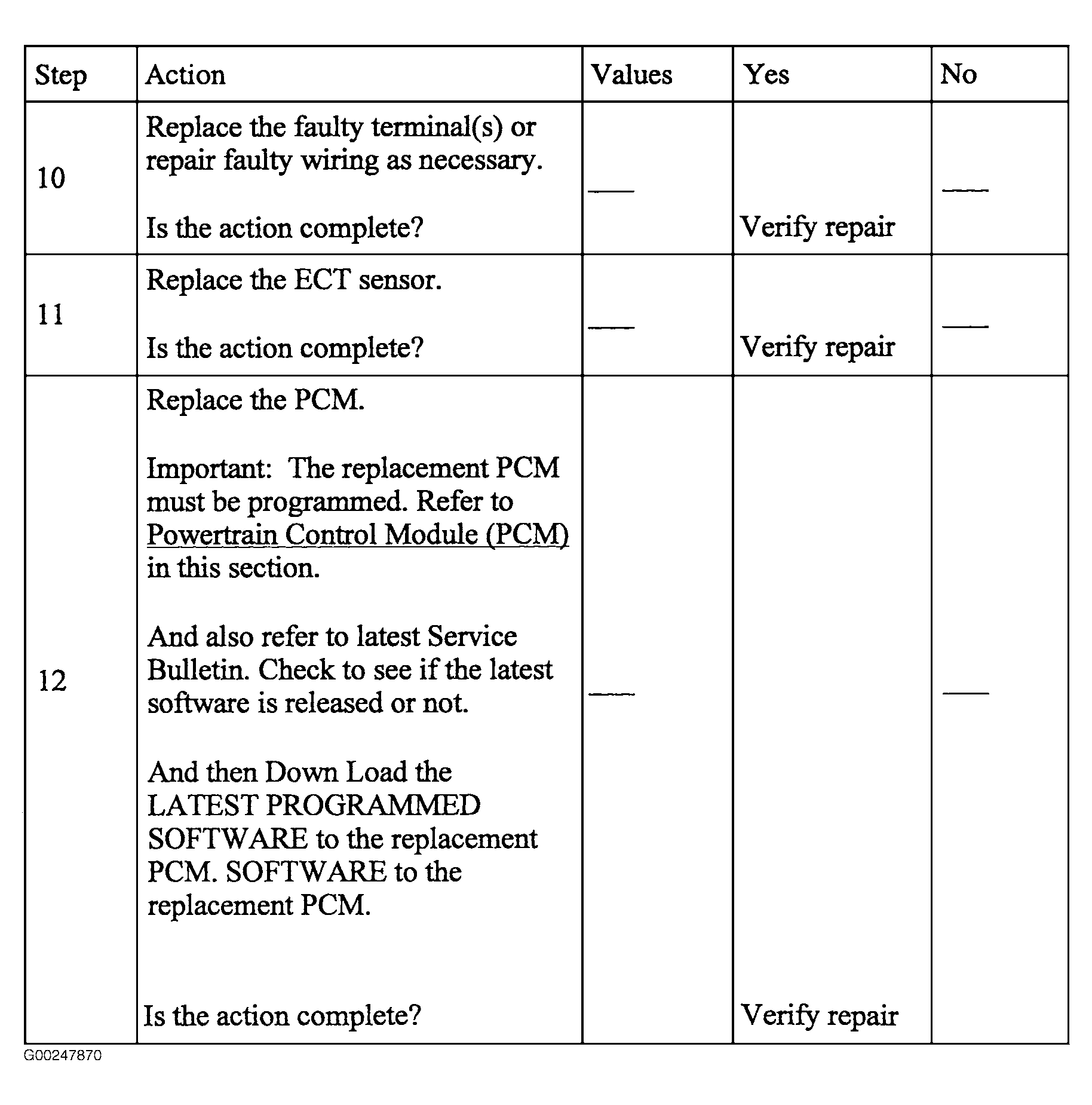

Fig 3: DTC P0125: ECT Sensor Excessive Time To Closed Loop Fuel Control (Steps 10-12)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
